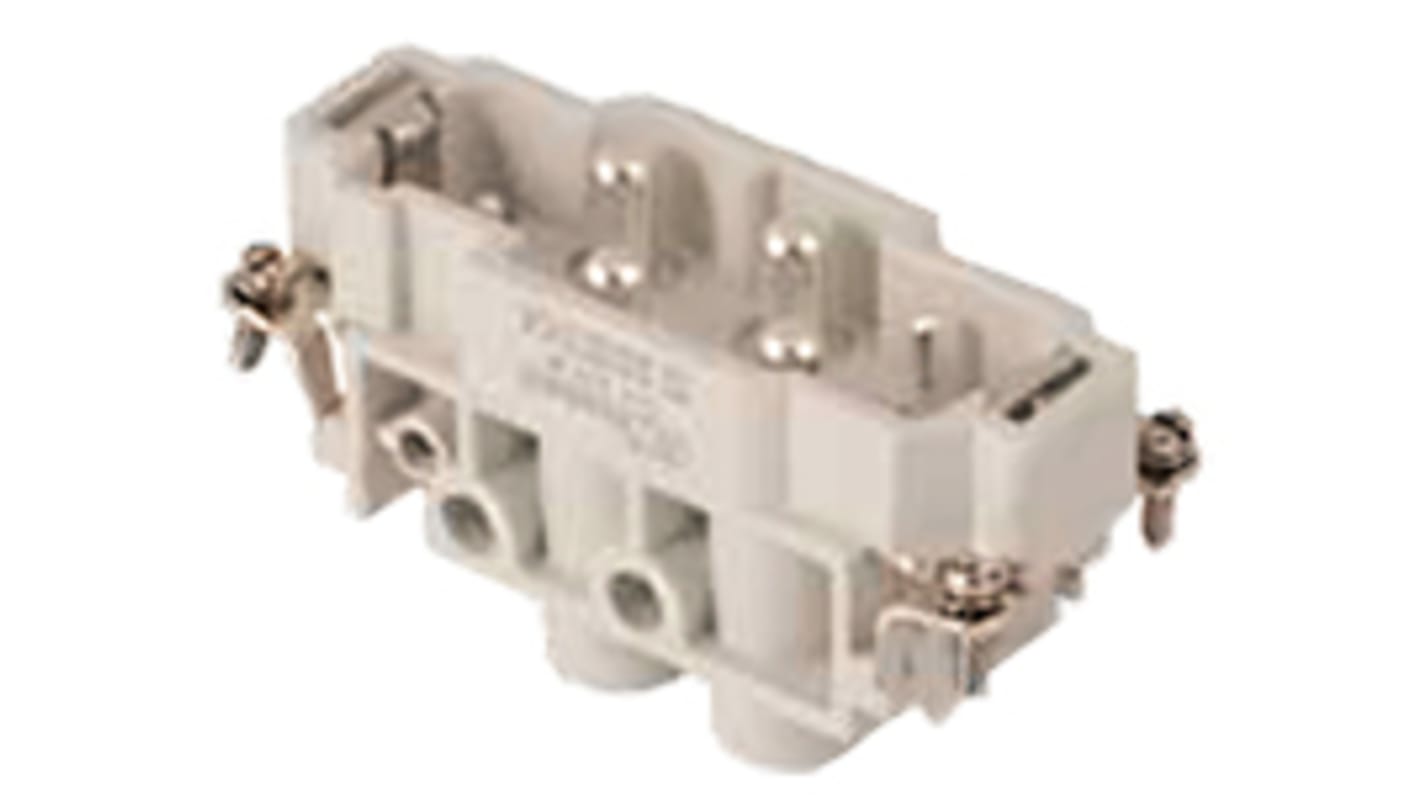

Molex Heavy Duty Power Connector Module, 80A, Male, 93601 Series, 4 Contacts
- RS Stock No.:
- 250-1923
- Mfr. Part No.:
- 936010198
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£20.92
(exc. VAT)
£25.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 139 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £20.92 |
10 - 99 | £20.25 |
100 - 249 | £19.39 |
250 - 499 | £18.58 |
500 + | £17.57 |
*price indicative
- RS Stock No.:
- 250-1923
- Mfr. Part No.:
- 936010198
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Current Rating | 80A | |
Gender | Male | |
Series | 93601 | |
Type | Screw Terminal Insert | |
Termination Method | Screw | |
For Use With | Electronic Machinery | |
Pole Format | 4P | |
Number of Rows | 2 | |
Voltage Rating | 830 V | |
Number of Contacts | 4 | |
Contact Material | Copper Alloy | |
Body Orientation | Straight | |
Series Number | 93601 | |
Contact Plating | Silver | |
Select all | ||
---|---|---|
Brand Molex | ||
Current Rating 80A | ||
Gender Male | ||
Series 93601 | ||
Type Screw Terminal Insert | ||
Termination Method Screw | ||
For Use With Electronic Machinery | ||
Pole Format 4P | ||
Number of Rows 2 | ||
Voltage Rating 830 V | ||
Number of Contacts 4 | ||
Contact Material Copper Alloy | ||
Body Orientation Straight | ||
Series Number 93601 | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector Module, 80A Current Rating, 830V Voltage Rating - 936010198
This heavy-duty power connector module falls within the category of industrial connectors and is designed for high-performance applications. Featuring a compact component size of 16B «77x27», this module ensures efficient connectivity in electronic machinery. With a voltage rating of up to 830V, it effectively manages power distribution.
Features & Benefits
• Built to handle a current rating of 80A per contact
• Constructed with silver-plated contacts for enhanced conductivity
• Offers durable performance through 500 mating cycles
• Features a screw terminal design for secure connections
• Constructed with silver-plated contacts for enhanced conductivity
• Offers durable performance through 500 mating cycles
• Features a screw terminal design for secure connections
Applications
• Ideal for use in electronic machinery requiring robust connections
• Suitable for high-voltage in industrial settings
• Can be paired with size 16B «77x27» hoods and housings
• Designed for use in automation systems demanding stable power delivery
• Suitable for high-voltage in industrial settings
• Can be paired with size 16B «77x27» hoods and housings
• Designed for use in automation systems demanding stable power delivery
What is the maximum working temperature for this connector?
The connector is rated for operation within a temperature range from -40° to +125°C, providing flexibility for various environmental conditions.
Can this connector be easily integrated into existing installations?
Yes, its screw terminal design allows for straightforward installation and reliable connections in existing systems.
What wire sizes can be accommodated with this connector?
It supports a range of wire sizes from AWG 14 to AWG 20, making it versatile for different applications.
How does the silver plating benefit the electrical connections?
Silver plating improves the conductivity of the contacts, which reduces resistive losses and helps in maintaining efficient power transfer.
