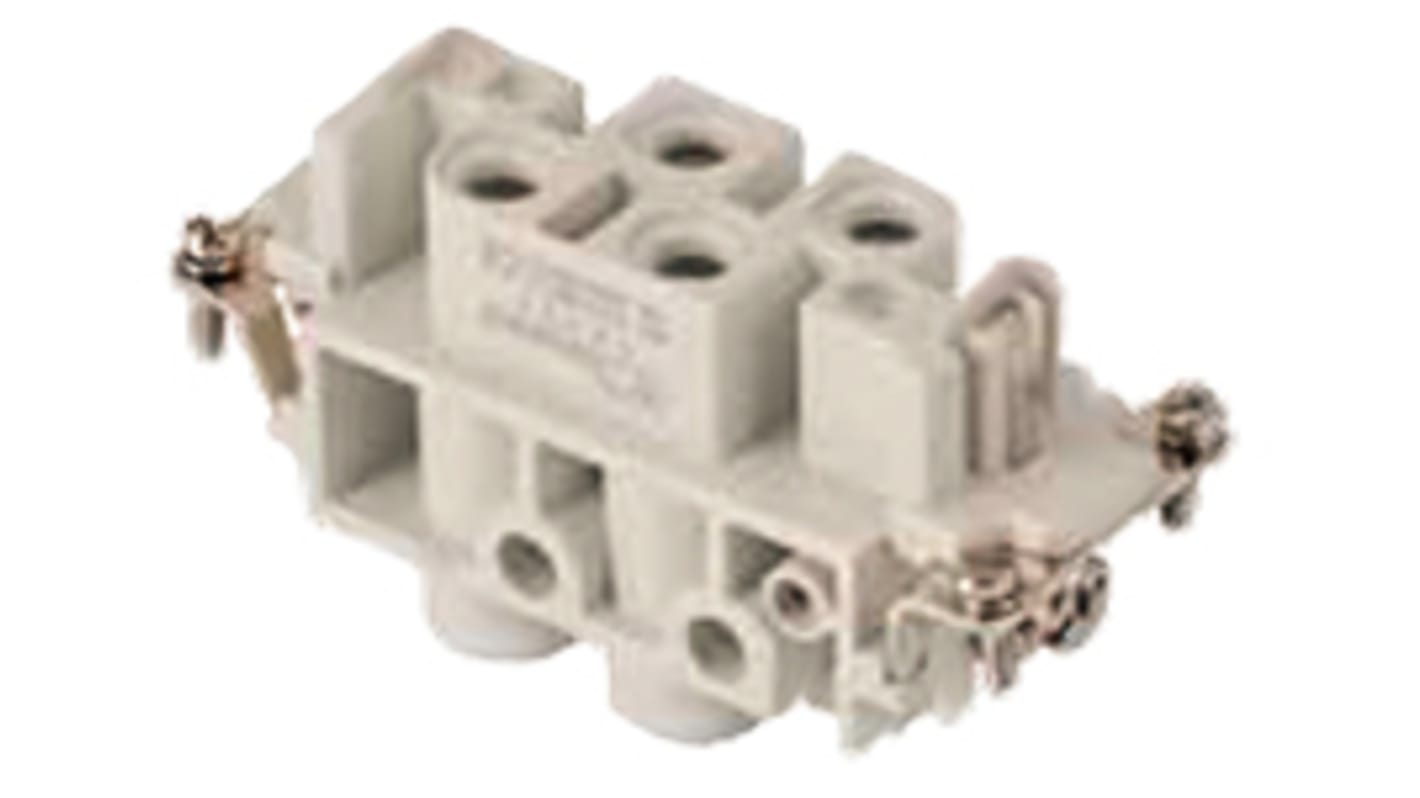

Molex Heavy Duty Power Connector Module, 80A, Female, 93601 Series, 4 Contacts

View this category
Bulk discount available

Subtotal (1 unit)*

£15.87

(exc. VAT)

£19.04

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 161 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£15.87
10 - 99£15.36
100 - 249£14.73
250 - 499£14.09
500 +£13.32

*price indicative

RS Stock No.:
250-1922
Mfr. Part No.:
936010197
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Current Rating

80A

Gender

Female

Series

93601

Type

Screw Terminal Insert

Termination Method

Screw

For Use With

Electronic Machinery

Pole Format

4P

Number of Rows

2

Voltage Rating

830 V

Number of Contacts

4

Contact Material

Copper Alloy

Body Orientation

Straight

Series Number

93601

Contact Plating

Silver

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Module, 80A Current Rating, 830V Voltage Rating - 936010197


This heavy-duty power connector module is designed for high-current applications, specifically in electronic machinery. It features a screw terminal insert and comes with a compact size of 16B «77x27». With a current rating of 80A and a voltage rating of 830V, it is engineered for reliable performance in demanding environments.

Features & Benefits


• Delivers a high current capacity of 80A per contact
• Effective voltage rating of up to 830V for safety
• Utilises a screw termination method for secure wire connections
• Designed for a temperature range of -40° to +125° C for versatility
• Accommodates wire sizes from AWG 14 to 20 for flexibility in installation

Applications


• Used with size 16B «77x27» hoods and housings
• Ideal for industrial automation requiring robust connections
• Suitable for electric vehicle charging systems
• Utilised in power distribution in electronic machinery

What is the maximum number of mating cycles for this connector?


The connector is rated for up to 500 mating cycles, ensuring durability and long-term reliability in numerous applications.

What are the stripping lengths required for wire preparation?


The recommended stripping lengths are 14mm and 7mm, optimising the fit within the connector terminals.

Is there any specific flammability rating for this product?


Yes, this connector has a flammability rating of UL 94V-0, indicating its resistance to ignition under certain fire conditions.

How does the silver plating benefit the contacts?


The silver plating reduces electrical contact resistance and enhances overall conductivity, resulting in improved performance in high-current scenarios.
