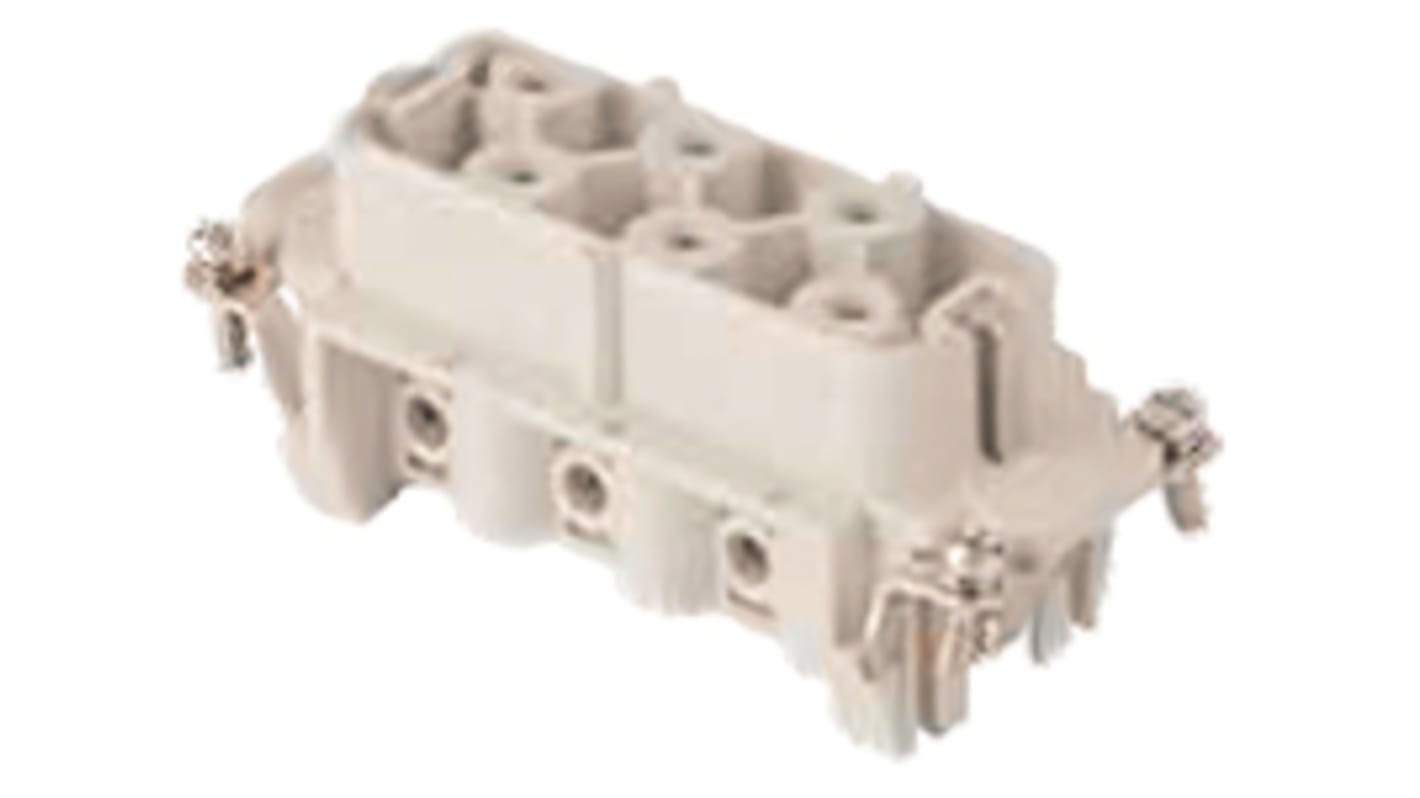

Molex Heavy Duty Power Connector Module, 35A, Female, 93601 Series, 6 Contacts
- RS Stock No.:
- 250-1928
- Mfr. Part No.:
- 936010211
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 100 units)*
£1,724.40
(exc. VAT)
£2,069.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 100 | £17.244 | £1,724.40 |
200 - 400 | £16.934 | £1,693.40 |
500 + | £16.313 | £1,631.30 |
*price indicative
- RS Stock No.:
- 250-1928
- Mfr. Part No.:
- 936010211
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Current Rating | 35A | |
Gender | Female | |
Series | 93601 | |
Type | Screw Terminal Insert | |
For Use With | Electronic Machinery | |
Number of Contacts | 6 | |
Contact Material | Copper Alloy | |
Contact Plating | Silver | |
Select all | ||
---|---|---|
Brand Molex | ||
Current Rating 35A | ||
Gender Female | ||
Series 93601 | ||
Type Screw Terminal Insert | ||
For Use With Electronic Machinery | ||
Number of Contacts 6 | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector Module, 35A Current Rating, 830V Voltage Rating - 936010211
This heavy duty power connector module is designed for robust electrical applications, particularly in electronic machinery. It features a female screw terminal insert with a capacity for six poles, ensuring reliable connectivity in challenging environments. Constructed from a copper alloy for the contacts and silver plating, this connector offers both durability and excellent conductivity, making it suitable for high voltage applications of up to 830V.
Features & Benefits
• Current rating of 35A supports high-power applications
• Silver plated contacts enhance electrical conductivity and corrosion resistance
• Constructed from copper alloy for improved durability
• Two-row configuration simplifies wiring connections
• Screw terminal termination ensures secure and stable connections
• Suitable for operating temperatures from -40°C to +125°C
• Silver plated contacts enhance electrical conductivity and corrosion resistance
• Constructed from copper alloy for improved durability
• Two-row configuration simplifies wiring connections
• Screw terminal termination ensures secure and stable connections
• Suitable for operating temperatures from -40°C to +125°C
Applications
• Ideal for electronic machinery requiring high current connections
• Used with size 16B «77x27» hoods and housings
• Effective in industrial automation and electrical equipment assemblies
• Connects robustly in environments with extreme conditions
• Used with size 16B «77x27» hoods and housings
• Effective in industrial automation and electrical equipment assemblies
• Connects robustly in environments with extreme conditions
What advantages does the screw terminal design provide for secure connections?
The screw terminal design facilitates a stronger mechanical grip on the wire, reducing the risk of disconnection due to vibration or thermal expansion. This ensures a stable connection that can endure harsh operational conditions.
How does the silver plating on the contacts benefit the performance?
The silver plating significantly enhances the conductivity of each contact, which minimises resistive losses and improves overall electrical performance. This contributes to better efficiency in high current scenarios.
What is the maximum wire size compatibility for this connector?
The module accommodates wire sizes ranging from 0.5mm² to 6mm², allowing versatility in choice for various applications depending on the electrical load requirements.
How is this connector suitable for use in extreme temperature environments?
The connector is rated for operation within a temperature range of -40°C to +125°C, making it ideal for applications in outdoor or industrial settings where temperature fluctuations can occur.
