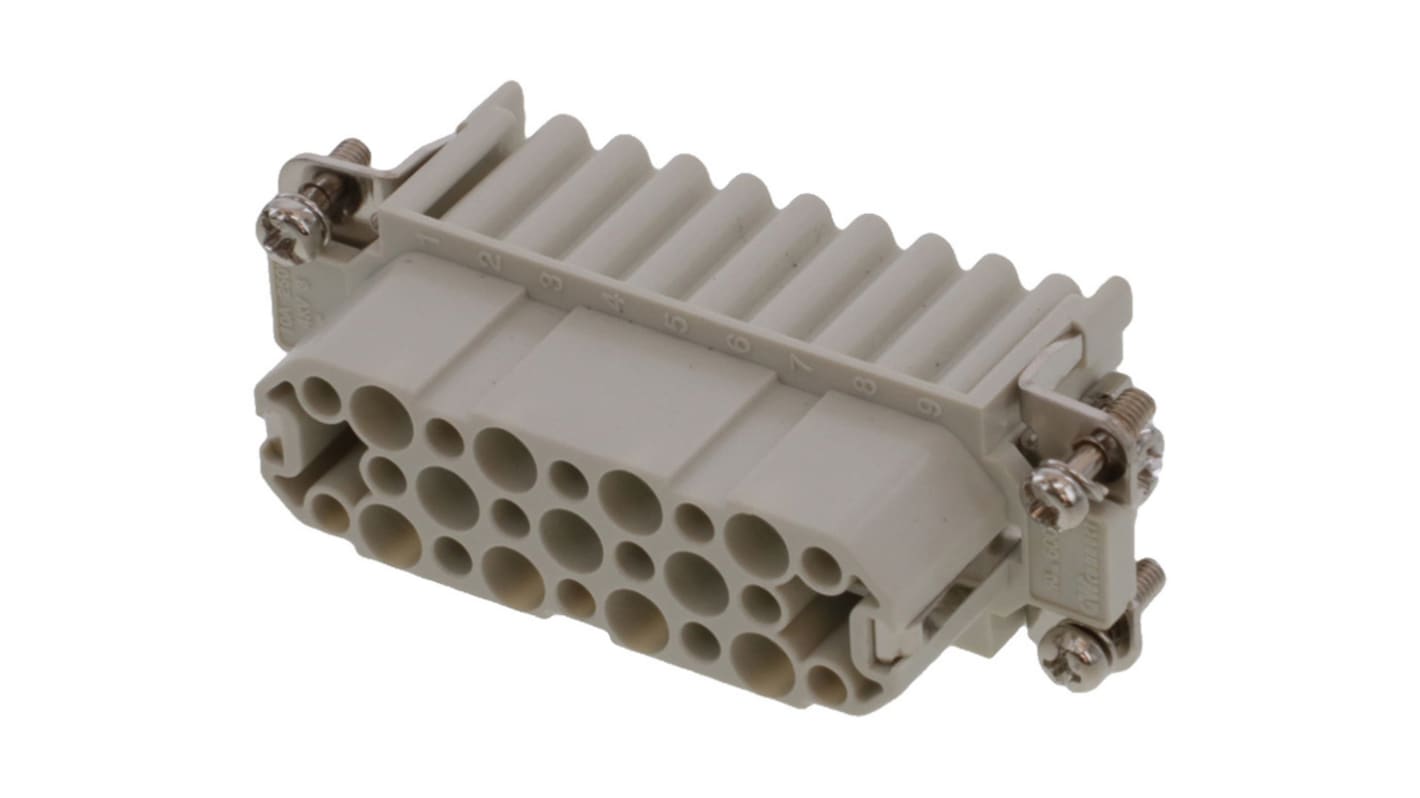

Molex Heavy Duty Power Connector Module, 10A, Female, 93601 Series, 25 Contacts

View this category
Bulk discount available

Subtotal (1 unit)*

£9.71

(exc. VAT)

£11.65

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 33 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£9.71
10 - 99£9.40
100 - 249£9.02
250 - 499£8.63
500 +£8.17

*price indicative

RS Stock No.:
250-1895
Mfr. Part No.:
936010099
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Current Rating

10A

Gender

Female

Series

93601

Type

Crimp Contact Insert

For Use With

Electronic Machinery

Number of Contacts

25

COO (Country of Origin):
TW

Molex 93601 Series Heavy Duty Power Connector Module, 10A Current Rating, 250V Voltage Rating - 936010099


This heavy duty power connector module is designed for robust applications within electronic machinery. Offering an impressive 250V voltage rating, this female power connector features a crimp contact insert with a capacity of 10A. With its straight body orientation and durable polycarbonate construction, it ensures reliable performance across various demanding environments.

Features & Benefits


• Supports up to 10A per contact for efficient power distribution
• Designed for crimp termination, ensuring secure connectivity
• Features 25 contacts, ideal for complex wiring needs
• High voltage rating of 250V for versatile applications
• Constructed from durable polycarbonate for enhanced resilience
• Polarised design facilitates correct mating to prevent errors

Applications


• Ideal for use in automated machinery where dependable connections are crucial
• Suitable for implementation in panel designs requiring multiple connections
• Utilised in industrial equipment needing durable electronic connectors
• Compatible with turned contacts for seamless integration in various systems

What is the maximum number of mating cycles for this connector?


The connector is rated for a maximum of 500 mating cycles, ensuring longevity and reliability throughout its usage.

What materials are used in the construction of the insert?


The insert is made from polycarbonate, providing excellent durability and resistance to harsh conditions.

How does the connector perform in extreme temperatures?


It operates effectively within a temperature range of -40° to +125°C, making it suitable for diverse environmental conditions.

What type of contacts does this connector accommodate?


It is designed for use with female crimp contacts, allowing for easy installation and secure connections.
