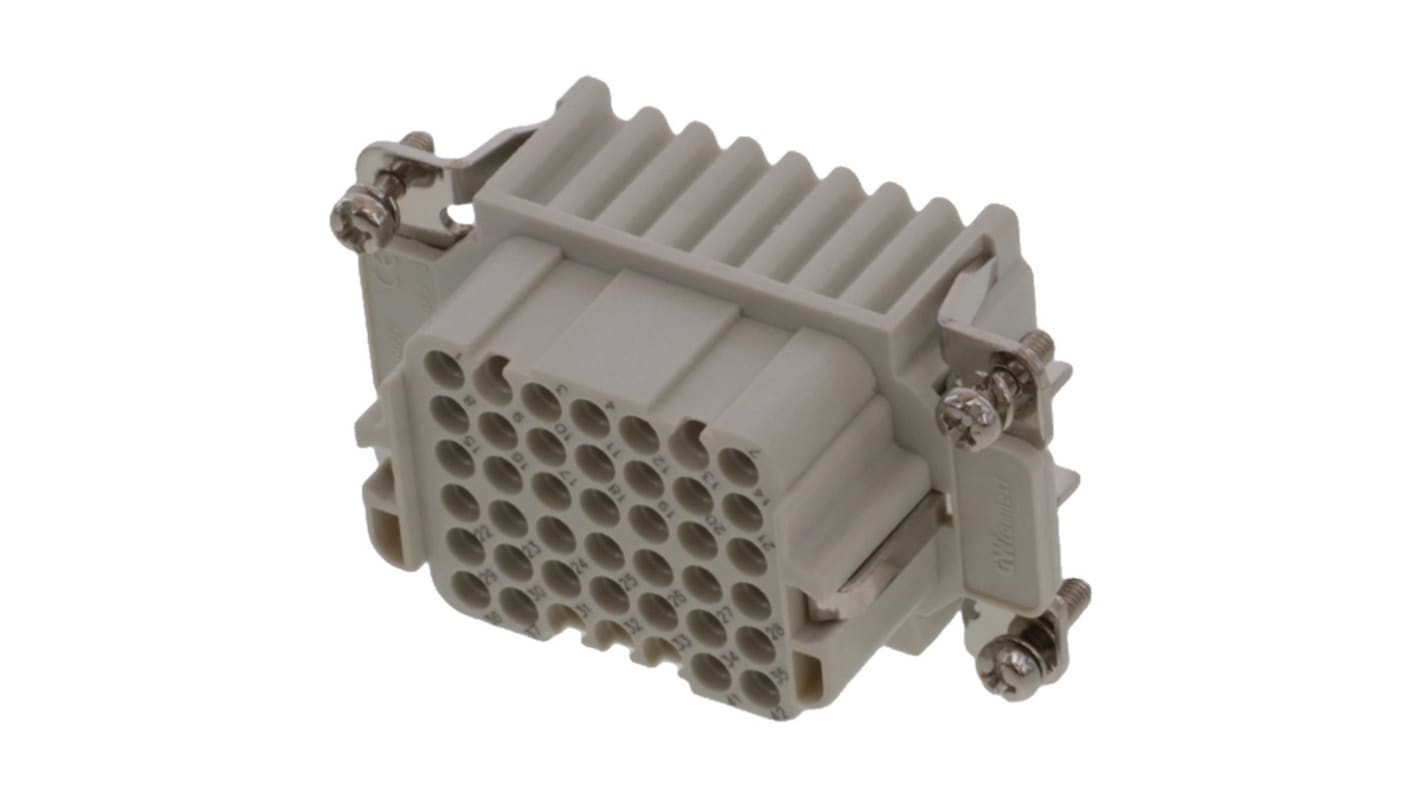

Molex Heavy Duty Power Connector Module, 10A, Female, 93601 Series, 42 Contacts
- RS Stock No.:
- 250-1900
- Mfr. Part No.:
- 936010105
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 100 units)*
£1,296.80
(exc. VAT)
£1,556.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 100 | £12.968 | £1,296.80 |
200 - 400 | £12.735 | £1,273.50 |
500 + | £12.268 | £1,226.80 |
*price indicative
- RS Stock No.:
- 250-1900
- Mfr. Part No.:
- 936010105
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Current Rating | 10A | |
Gender | Female | |
Series | 93601 | |
Type | Crimp Contact Insert | |
For Use With | Electronic Machinery | |
Number of Contacts | 42 | |
Select all | ||
---|---|---|
Brand Molex | ||
Current Rating 10A | ||
Gender Female | ||
Series 93601 | ||
Type Crimp Contact Insert | ||
For Use With Electronic Machinery | ||
Number of Contacts 42 | ||
- COO (Country of Origin):
- TW
Molex 93601 Series Heavy Duty Power Connector Module, 10A Current Rating, 250V Voltage Rating - 936010105
This heavy duty power connector module is an essential component designed for electronic machinery. It features a female crimp contact insert with a configuration of 42 contacts, suitable for high-current applications. Operating within a temperature range of -40° to +125°C, this robust connector ensures reliable performance in demanding environments.
Features & Benefits
• Designed for high-current applications with a 10A rating
• Supports 250V maximum voltage for wide compatibility
• Six rows of contacts for efficient connectivity
• Durable polycarbonate insert withstands harsh conditions
• Capable of withstanding up to 500 mating cycles
• Polarised mating reduces connection errors
• Supports 250V maximum voltage for wide compatibility
• Six rows of contacts for efficient connectivity
• Durable polycarbonate insert withstands harsh conditions
• Capable of withstanding up to 500 mating cycles
• Polarised mating reduces connection errors
Applications
• Used in automation systems for reliable power distribution
• Essential for industrial machinery requiring secure connections
• Applicable in electronic assemblies for high-performance needs
• Ideal for connecting various electronic components in demanding settings
• Essential for industrial machinery requiring secure connections
• Applicable in electronic assemblies for high-performance needs
• Ideal for connecting various electronic components in demanding settings
What materials are used in the construction of this connector?
The insert is made from polycarbonate, ensuring both durability and resistance to various environmental factors. This material is specifically selected for its ability to perform reliably under intense conditions.
How does the connector ensure compatibility with different systems?
The female design and standard specifications allow this connector to interface seamlessly with various turned crimp contacts, making it versatile for multiple applications in industrial settings.
What safety certifications does this power connector hold?
This connector meets several safety standards, including CSA 256883 and UL E249674, ensuring compliance and safety for use in electrical systems.
How does the connector perform in extreme temperatures?
With an operational temperature range from -40° to +125°C, it remains functional and reliable even in extreme conditions, making it suitable for various industrial applications.
What is the significance of having 42 contacts in this module?
Having 42 contacts allows for extensive connections, accommodating complex electronic setups where multiple circuits need to be managed efficiently.
