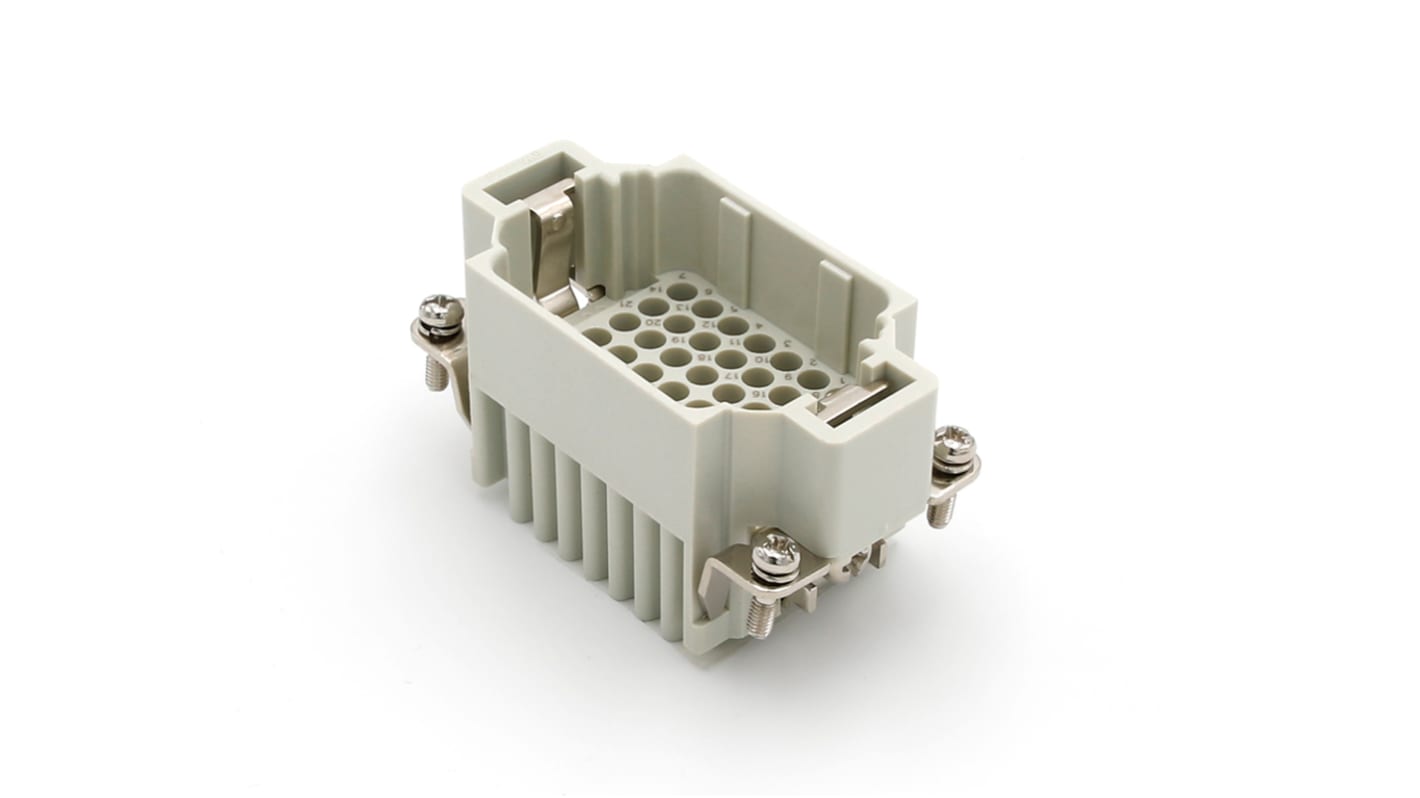

Molex Heavy Duty Power Connector Module, 10A, Male, 93601 Series, 42 Contacts
- RS Stock No.:
- 250-1902
- Mfr. Part No.:
- 936010106
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£17.29
(exc. VAT)
£20.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £17.29 |
| 10 - 99 | £16.72 |
| 100 - 249 | £16.04 |
| 250 - 499 | £15.36 |
| 500 + | £14.52 |
*price indicative
- RS Stock No.:
- 250-1902
- Mfr. Part No.:
- 936010106
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Current Rating | 10A | |
| Gender | Male | |
| Series | 93601 | |
| Type | Crimp Contact Insert | |
| For Use With | Electronic Machinery | |
| Pole Format | 42P | |
| Number of Rows | 6 | |
| Voltage Rating | 250 V | |
| Number of Contacts | 42 | |
| Series Number | 93601 | |
| Body Orientation | Straight | |
Select all | ||
|---|---|---|
Brand Molex | ||
Current Rating 10A | ||
Gender Male | ||
Series 93601 | ||
Type Crimp Contact Insert | ||
For Use With Electronic Machinery | ||
Pole Format 42P | ||
Number of Rows 6 | ||
Voltage Rating 250 V | ||
Number of Contacts 42 | ||
Series Number 93601 | ||
Body Orientation Straight | ||
- COO (Country of Origin):
- TW
Molex 93601 Series Heavy Duty Power Connector Module, 10A Current Rating, 250V Voltage Rating - 936010106
This heavy duty power connector module is designed for robust applications within the electronic machinery sector. The 42-pole configuration, operating at a maximum current of 10A and a voltage of 250V, ensures high-performance connectivity in demanding environments. The straight body orientation allows for seamless integration into existing systems, making it an ideal choice for industrial use.
Features & Benefits
• Constructed from polycarbonate for enhanced resilience
• Grey insert colour ensures easy identification
• Polarised design enhances connection stability
• Ideal for environments with temperature fluctuations
• Grey insert colour ensures easy identification
• Polarised design enhances connection stability
• Ideal for environments with temperature fluctuations
Applications
• Utilised in automation systems for reliable data and power connection
• Suitable for electric drive requiring durable connectivity
• Best for assembly needing high-current connections
• Used in control systems to facilitate efficient machinery operation
• Suitable for electric drive requiring durable connectivity
• Best for assembly needing high-current connections
• Used in control systems to facilitate efficient machinery operation
What is the maximum current rating this module can handle?
The module can accommodate a maximum current of 10A, making it suitable for high-current applications.
How does the polarised feature enhance the use of this connector?
The polarised design ensures that the connector will only mate in the correct orientation, providing greater reliability and preventing accidental disconnects.
What operational temperature range can this connector withstand?
This connector can function optimally within a temperature range of -40°C to +125°C, making it versatile for different industrial settings.
How many mating cycles can this connector endure?
It is built to withstand up to 500 mating cycles, ensuring longevity and reducing the need for frequent replacements.
