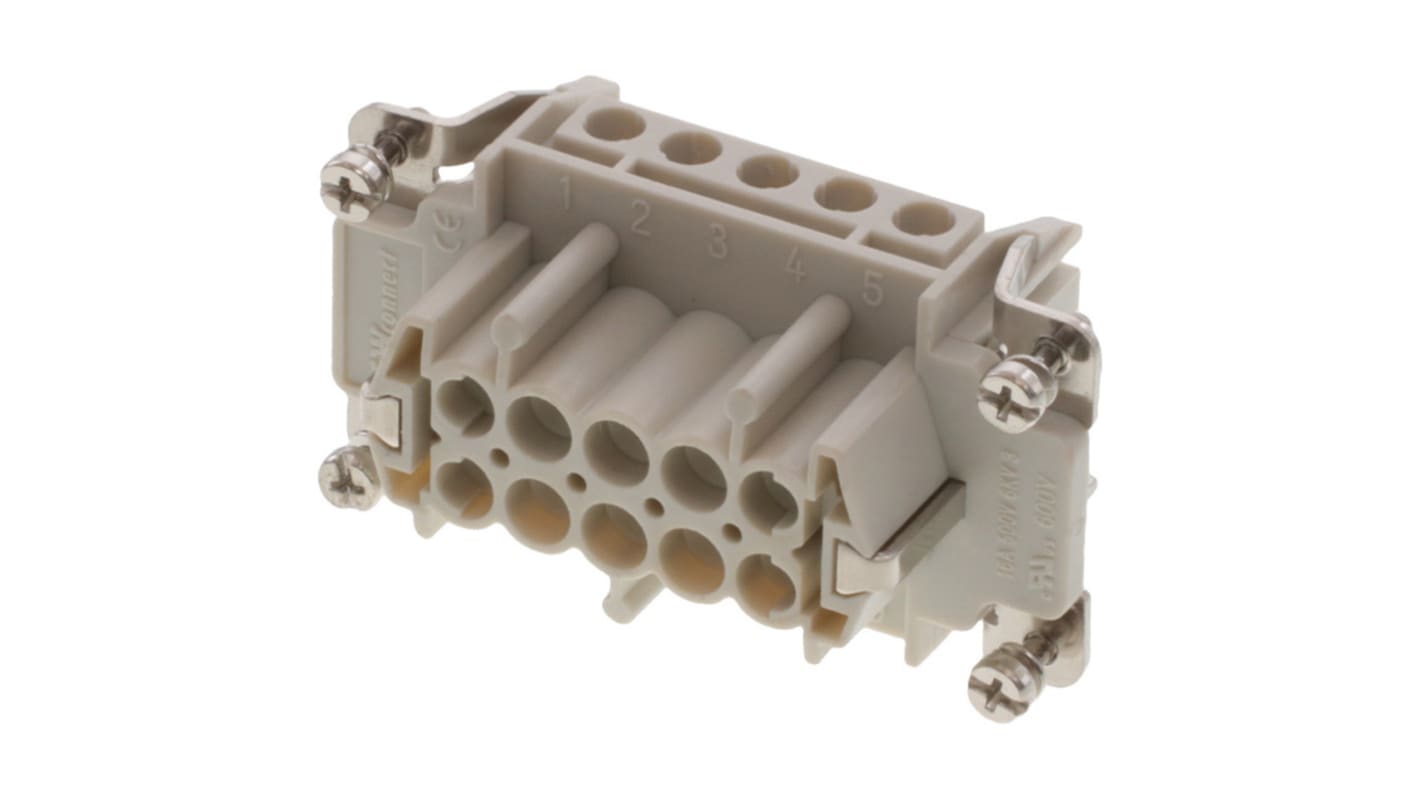

Molex Heavy Duty Power Connector Module, 16A, Female, 93601 Series, 10 Contacts
- RS Stock No.:
- 250-1941
- Mfr. Part No.:
- 936010231
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£9.71
(exc. VAT)
£11.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 58 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.71 |
| 10 - 24 | £9.40 |
| 25 - 49 | £9.24 |
| 50 + | £8.92 |
*price indicative
- RS Stock No.:
- 250-1941
- Mfr. Part No.:
- 936010231
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Current Rating | 16A | |
| Gender | Female | |
| Series | 93601 | |
| Type | Screw Terminal Insert | |
| Termination Method | Screw | |
| For Use With | Electronic Machinery | |
| Pole Format | 10P | |
| Number of Rows | 2 | |
| Voltage Rating | 500 V | |
| Number of Contacts | 10 | |
| Body Orientation | Straight | |
| Series Number | 93601 | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand Molex | ||
Current Rating 16A | ||
Gender Female | ||
Series 93601 | ||
Type Screw Terminal Insert | ||
Termination Method Screw | ||
For Use With Electronic Machinery | ||
Pole Format 10P | ||
Number of Rows 2 | ||
Voltage Rating 500 V | ||
Number of Contacts 10 | ||
Body Orientation Straight | ||
Series Number 93601 | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 500V Voltage Rating - 936010231
This heavy duty power connector module is designed for high-performance applications in the field of electronic machinery. Featuring a robust female configuration, this connector module accommodates up to 10 contacts, ensuring reliable connectivity. With dimensions aligning to size 10B, it guarantees a secure fit for various applications.
Features & Benefits
• Designed for a maximum current rating of 16A
• Supports voltage up to 500V for high-power applications
• Incorporates screw terminal termination for secure connections
• Features copper alloy contacts for improved conductivity
• Built with a dual-row design to optimise space
• Provides wire protection to enhance durability and reliability
• Supports voltage up to 500V for high-power applications
• Incorporates screw terminal termination for secure connections
• Features copper alloy contacts for improved conductivity
• Built with a dual-row design to optimise space
• Provides wire protection to enhance durability and reliability
Applications
• Ideal for use with electronic machinery connectors
• Suitable for requiring a compact 10 contact connector
• Utilised in environments where high current handling is crucial
• Compatible with size 10B hoods and housing options
• Suitable for requiring a compact 10 contact connector
• Utilised in environments where high current handling is crucial
• Compatible with size 10B hoods and housing options
How many contacts does this connector support?
This connector supports a total of 10 contacts, which enhances its versatility in various applications.
What is the operating temperature range for this product?
The operational temperature range is between -40°C and +125°C, making it suitable for diverse environments.
Can this connector accommodate varying wire sizes?
Yes, it can handle wire sizes from 0.5mm² to 2.5mm², offering flexibility in connection options.
