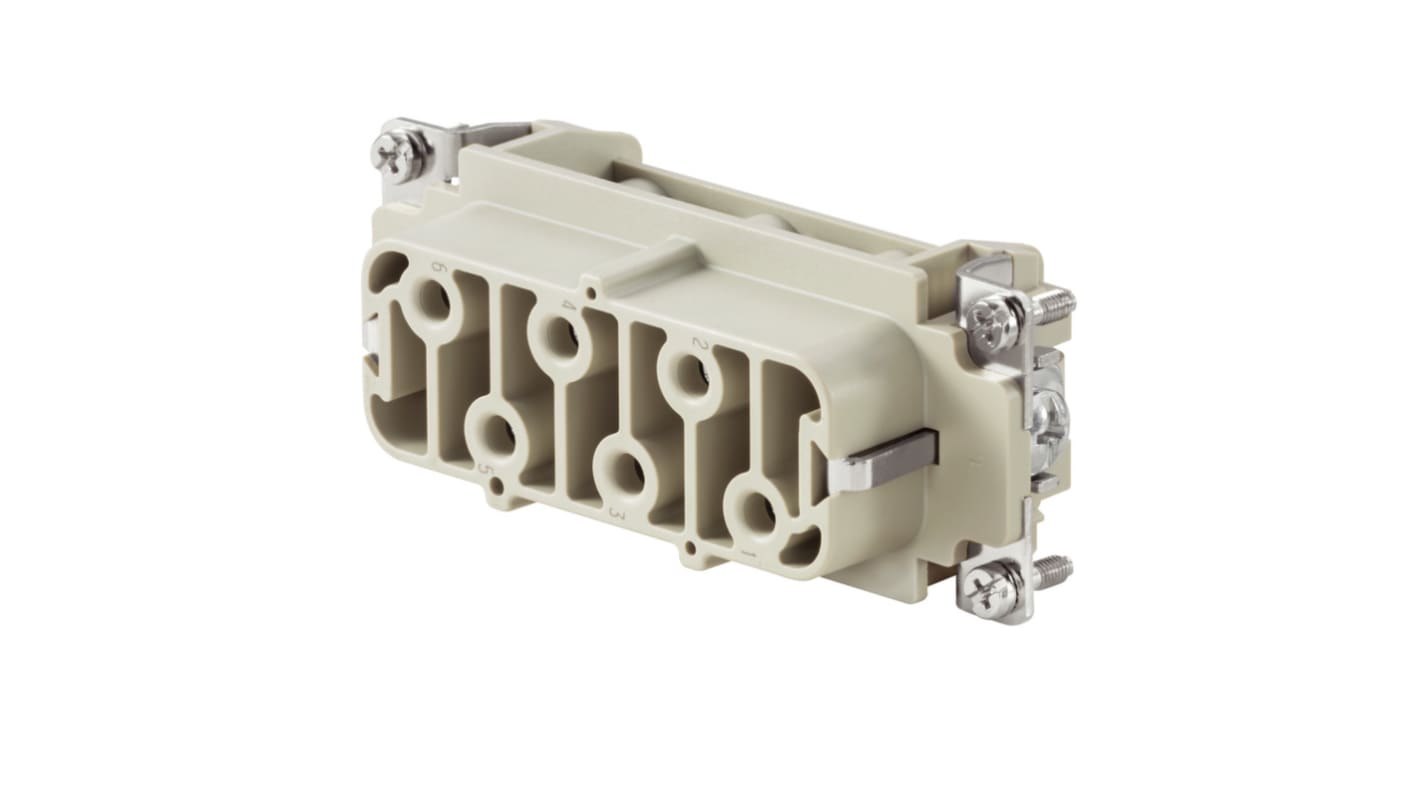

Weidmüller Contact Insert, 35A, HSB Series Female, 6 Contacts
- RS Stock No.:
- 249-3441
- Mfr. Part No.:
- 1498900000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£19.34
(exc. VAT)
£23.21
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.34 |
*price indicative
- RS Stock No.:
- 249-3441
- Mfr. Part No.:
- 1498900000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | Contact Insert | |
| Current Rating | 35A | |
| Series | HSB | |
| Sub Type | Connector Insert | |
| Connector Gender | Female | |
| Pole Format | 6 | |
| Number of Rows | 2 | |
| Voltage | 600V | |
| Mount Type | Cable | |
| IP Rating | IP65 | |
| Standards/Approvals | UL/CSA, RoHS | |
| Manufacturer Size Code | 6 | |
| Number of Contacts | 6 | |
| Minimum Wire Size mm² | 0.5mm² | |
| Orientation | Straight | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Maximum Wire Size mm² | 6mm² | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type Contact Insert | ||
Current Rating 35A | ||
Series HSB | ||
Sub Type Connector Insert | ||
Connector Gender Female | ||
Pole Format 6 | ||
Number of Rows 2 | ||
Voltage 600V | ||
Mount Type Cable | ||
IP Rating IP65 | ||
Standards/Approvals UL/CSA, RoHS | ||
Manufacturer Size Code 6 | ||
Number of Contacts 6 | ||
Minimum Wire Size mm² 0.5mm² | ||
Orientation Straight | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
Maximum Wire Size mm² 6mm² | ||
- COO (Country of Origin):
- CN
The Weidmuller HSB Sealed industrial connectors insert has screw connection where wire connection level is designed as a screw element. All screw connections are equipped with a wire protection spring.
Rated current is 35A
Number of poles is 6
Female Insert
