Phoenix Contact Heavy Duty Power Connector Module, 10A, HC Series Female, 15 Contacts
- RS Stock No.:
- 201-6190
- Mfr. Part No.:
- 1584389
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£13.66
(exc. VAT)
£16.39
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.66 |
*price indicative
- RS Stock No.:
- 201-6190
- Mfr. Part No.:
- 1584389
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Current Rating | 10A | |
| Product Type | Heavy Duty Power Connector Module | |
| Series | HC | |
| Sub Type | Female Insert | |
| Connector Gender | Female | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 15+PE | |
| Number of Rows | 3 | |
| Voltage | 250V ac | |
| Mount Type | DIN Rail | |
| IP Rating | IP54 | |
| Number of Contacts | 15 | |
| Manufacturer Size Code | D15 | |
| Standards/Approvals | No | |
| Minimum Wire Size mm² | 0.14mm² | |
| Orientation | Straight | |
| Maximum Wire Size mm² | 1.5mm² | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Current Rating 10A | ||
Product Type Heavy Duty Power Connector Module | ||
Series HC | ||
Sub Type Female Insert | ||
Connector Gender Female | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 15+PE | ||
Number of Rows 3 | ||
Voltage 250V ac | ||
Mount Type DIN Rail | ||
IP Rating IP54 | ||
Number of Contacts 15 | ||
Manufacturer Size Code D15 | ||
Standards/Approvals No | ||
Minimum Wire Size mm² 0.14mm² | ||
Orientation Straight | ||
Maximum Wire Size mm² 1.5mm² | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||

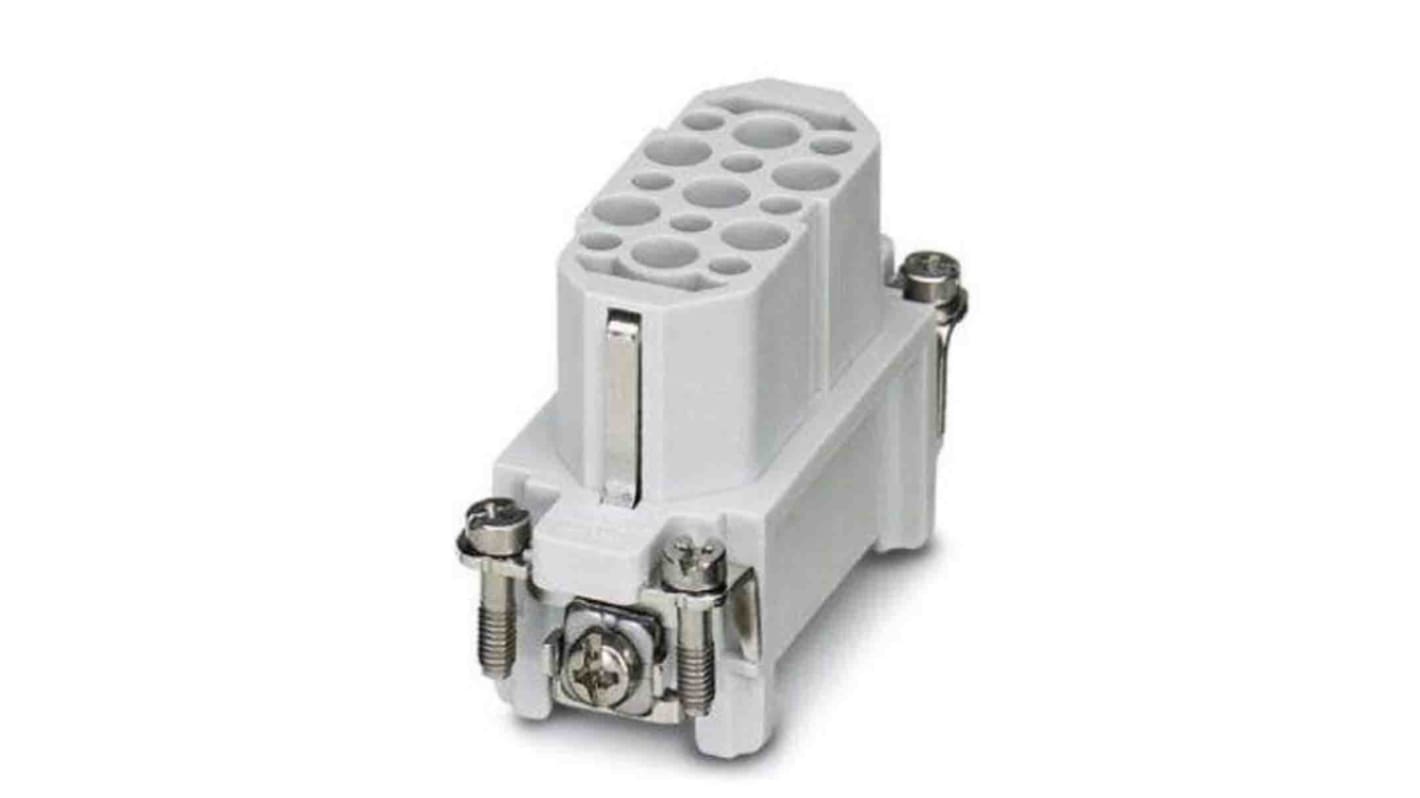

The Phoenix Contact HEAVYCON female insert has 15 number of positions. It is used for crimp connection method. The contact material is made of copper alloy.
V0 flammability rating according to UL 94
-40°C to 125°C ambient temperature
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
