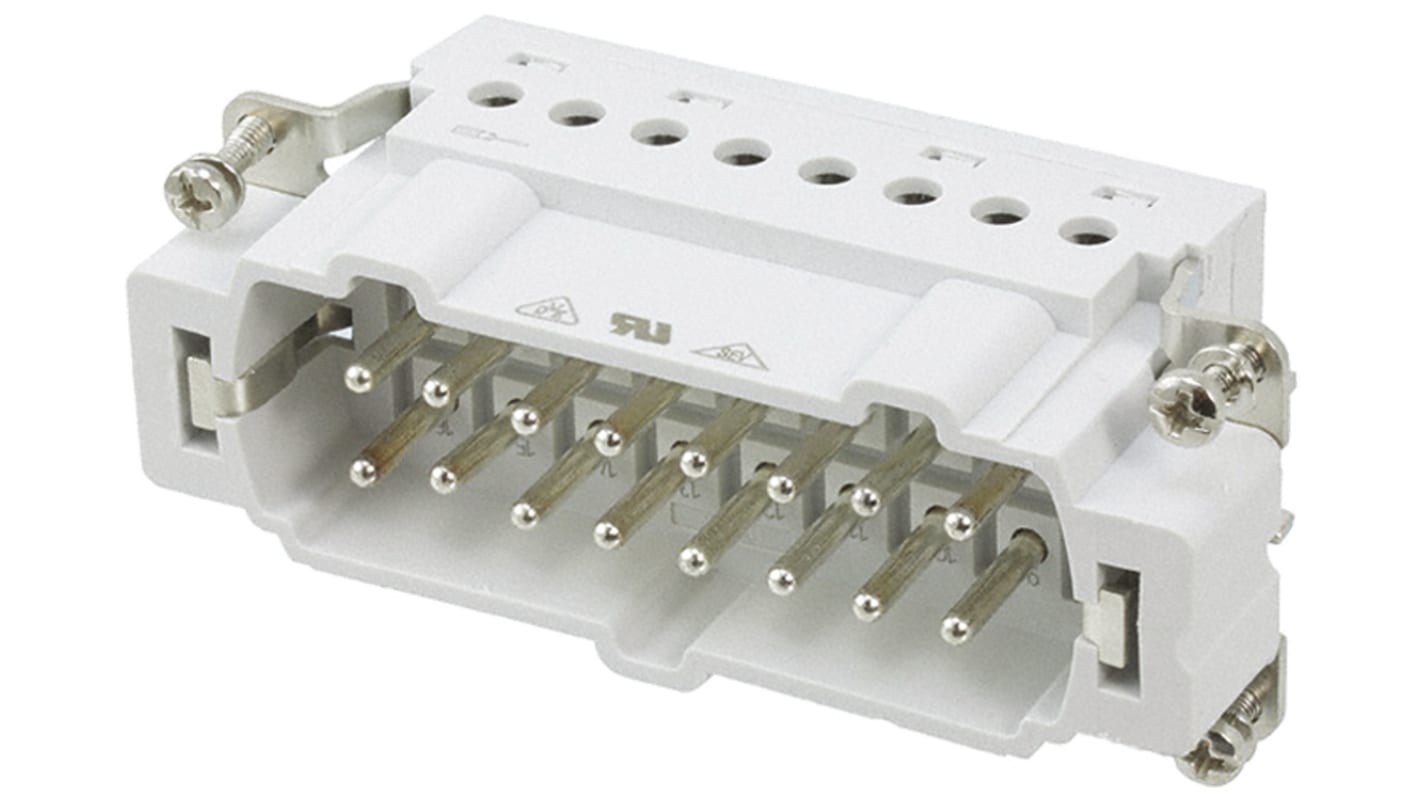

TE Connectivity Heavy Duty Power Connector Insert, 16A, HE Series Male, 16 Contacts
- RS Stock No.:
- 164-8450
- Distrelec Article No.:
- 304-48-141
- Mfr. Part No.:
- 1-1103638-1
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 5 units)*
£268.72
(exc. VAT)
£322.465
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 120 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 5 - 5 | £53.744 | £268.72 |
| 10 + | £51.056 | £255.28 |
*price indicative
- RS Stock No.:
- 164-8450
- Distrelec Article No.:
- 304-48-141
- Mfr. Part No.:
- 1-1103638-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Current Rating | 16A | |
| Product Type | Heavy Duty Power Connector Insert | |
| Series | HE | |
| Sub Type | Connector Insert | |
| Connector Gender | Male | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 16+E | |
| Number of Rows | 2 | |
| Voltage | 400V | |
| Mount Type | Panel | |
| Number of Contacts | 16 | |
| Standards/Approvals | No | |
| Contact Plating | Gold, Silver | |
| Orientation | Straight | |
| Contact Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Current Rating 16A | ||
Product Type Heavy Duty Power Connector Insert | ||
Series HE | ||
Sub Type Connector Insert | ||
Connector Gender Male | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 16+E | ||
Number of Rows 2 | ||
Voltage 400V | ||
Mount Type Panel | ||
Number of Contacts 16 | ||
Standards/Approvals No | ||
Contact Plating Gold, Silver | ||
Orientation Straight | ||
Contact Material Polycarbonate | ||
HE Inserts
Male and female inserts will fit either cable hood housings or base housings. The insrts is supplied without contacts. Each insert has a separate earth contact.,If 32 way connectors are required both the 1-16 pole (16 way) and 17-32 pole inserts should be purchased. These inserts will fit alongside each other in size 10 HE housing.
Inserts
Approvals
UL listed, CSA certified, SEV
