From Contact Connectors, these hoods are for use with Contact Epic H-BE connector inserts. The hoods have integrated pips to connect securely to corresponding connector housing levers, ensuring optimum compatibility for your application. All models are highly reliable and excellent quality.

• Stock No. 377-1222 is a H-BE 48 way IP65 top entry hood with a PG29 Cable Gland
• Stock No. 431-5031 is a H-BE 6 way IP65 side entry hood with a M20 Cable Gland
• Stock No. 431-5047 is a H-BE 10 way IP65 side entry hood with a M20 Cable Gland
• Stock No. 431-5069 is a H-BE 16 way IP65 side entry hood with a M25 Cable Gland
• Stock No. 431-5075 is a H-BE 24 way IP65 side entry hood with a M25 Cable Gland
• Stock No. 431-5081 is a H-BE 32 way IP65 side entry hood with a M32 Cable Gland
• Stock No. 431-5097 is a H-BE 48 way IP65 side entry hood with a M40 Cable Gland
• Stock No. 431-5104 is a H-BE M20 6 way IP65 top entry hood with a M20 Cable Gland
• Stock No. 431-5126 is a H-BE 10 way IP65 top entry hood with a M20 Cable Gland
• Stock No. 431-5132 is a H-BE M25 16 way IP65 top entry hood with a M25 Cable Gland
• Stock No. 431-5148 is a H-BE 24 way IP65 top entry hood with a M25 Cable Gland
• Stock No. 377-1216 is a H-BE 32 way PG29 top entry hood with a PG29 Cable Gland
• Stock No. 243-6192 is a H-BE 32 way IP65 side entry hood with a PG29 Cable Gland
• Stock No. 243-6209 is a H-BE 48 way IP65 side entry hood with a PG36 Cable Gland

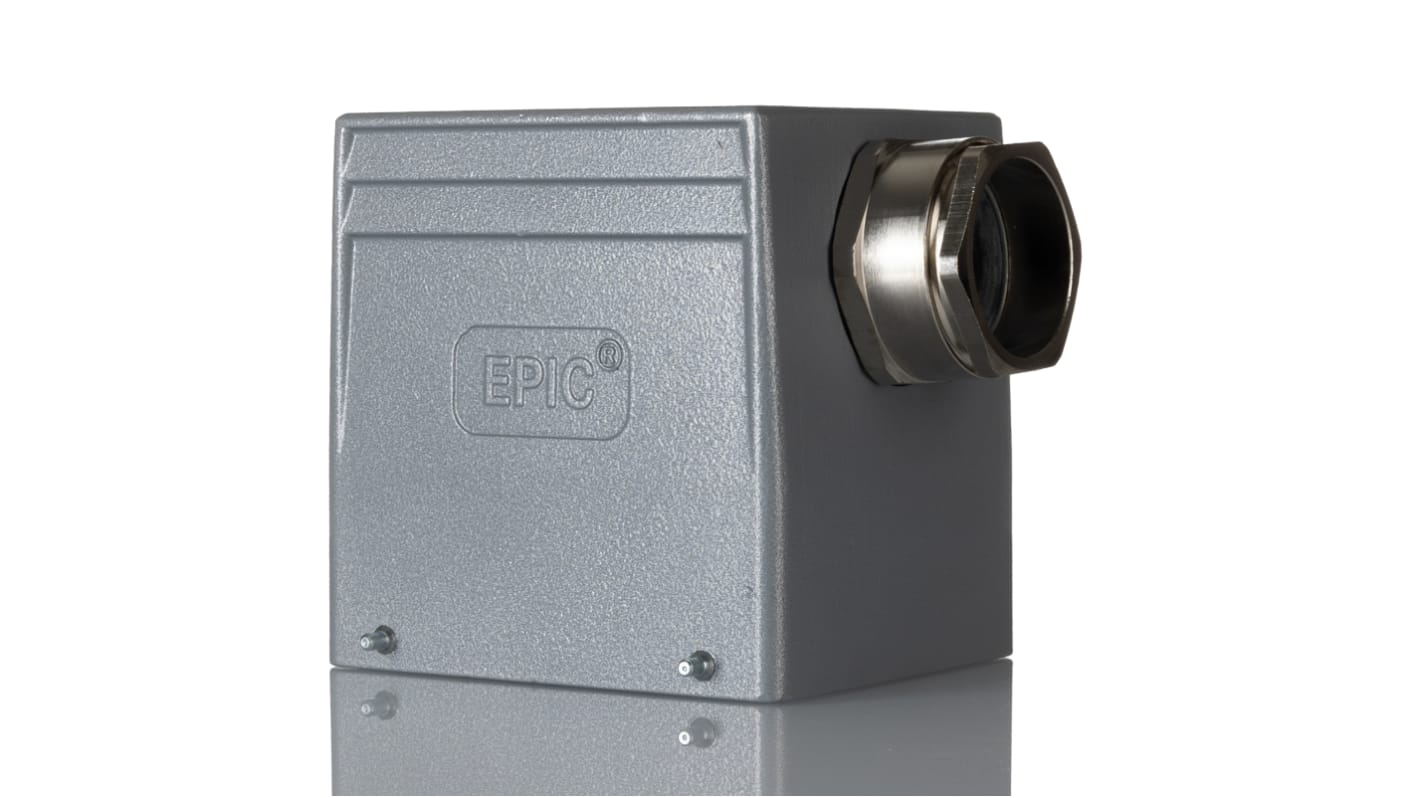

This EPIC connector accessory features a rugged nickel-plated brass body material suited for a temperature range of -20 to 55°C. With an impressive diameter of 34.7mm and compatible with cable sizes ranging from 17 to 19 mm, it delivers robust performance across various demanding environments.

• Supports 16A current for high-performance applications
• Facilitates easy installation with side entry orientation
• Durable construction offers longevity in demanding environments
• Compatible with a range of industrial power connectors

• Used in automation systems for power distribution
• Ideal for electrical and mechanical equipment connections
• Suitable for harsh industrial environments requiring durable connections
• Utilised in outdoor applications needing IP65 protection

Yes, it comes with an IP65 rating for dust and water resistance.

It is compatible with PG29 connector specifications.

Yes, it has a voltage rating of 440Vac.

VDE; CSA; UL; SEV

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
