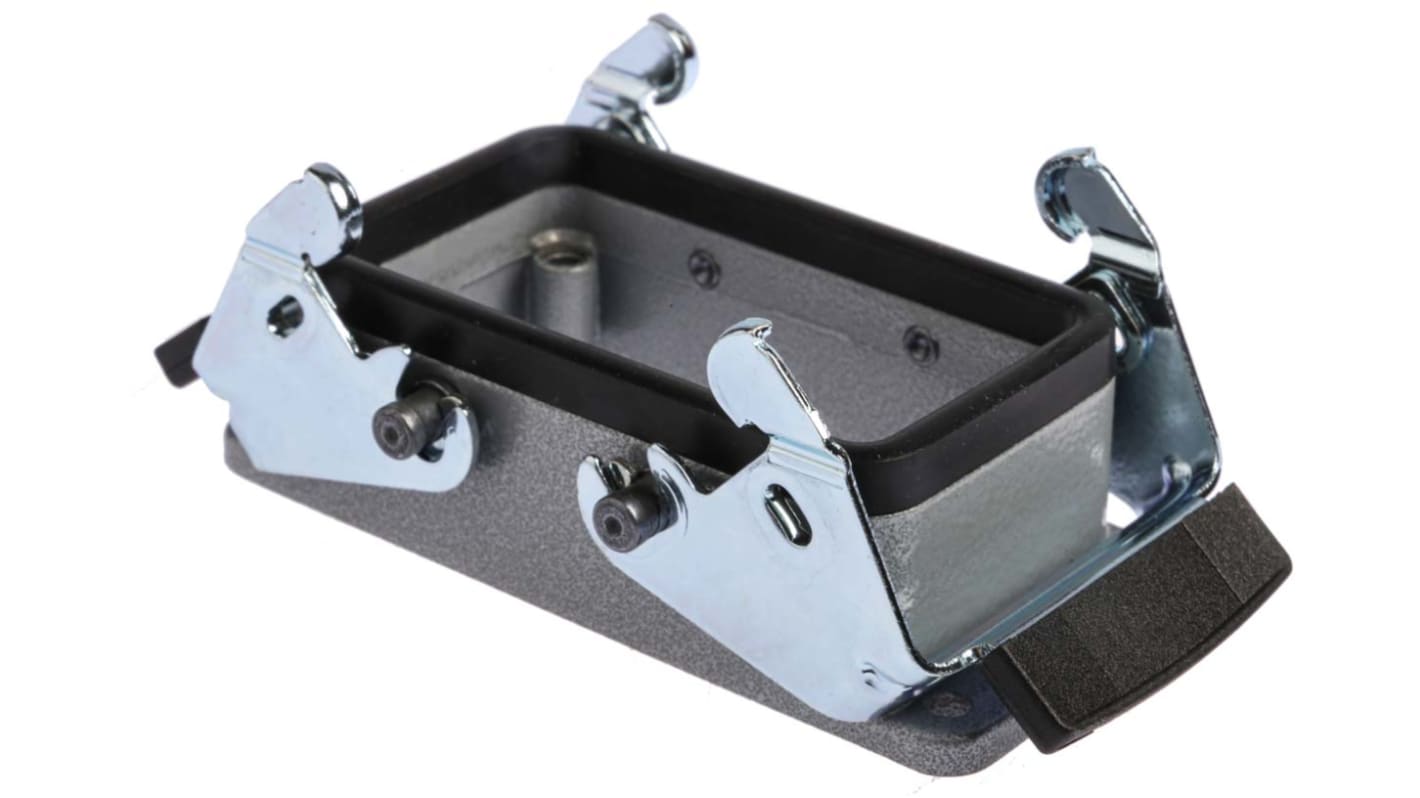

EPIC H-B Heavy Duty Power Connector Hood EPIC Range

This H-B series connector hood features a robust panel mount design with a double lever locking mechanism and an IP65 rating for protection against dust and water. It operates effectively from -40°C to +100°C, with short-term resilience up to +125°C, making it versatile for various industrial environments.

• IP65 rating for waterproof and dustproof performance
• Panel mount base for secure and stable installation
• Double lever locking mechanism for improved reliability
• Temperature range from -40°C to +100°C for harsh environments
• Durable aluminium alloy construction

• Plant engineering and automation systems
• Light and sound technology setups
• Harsh conditions in the plastics industry

No, standard tools can be used for panel mounting.

The housing is made from aluminium alloy and is powder-coated.

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
