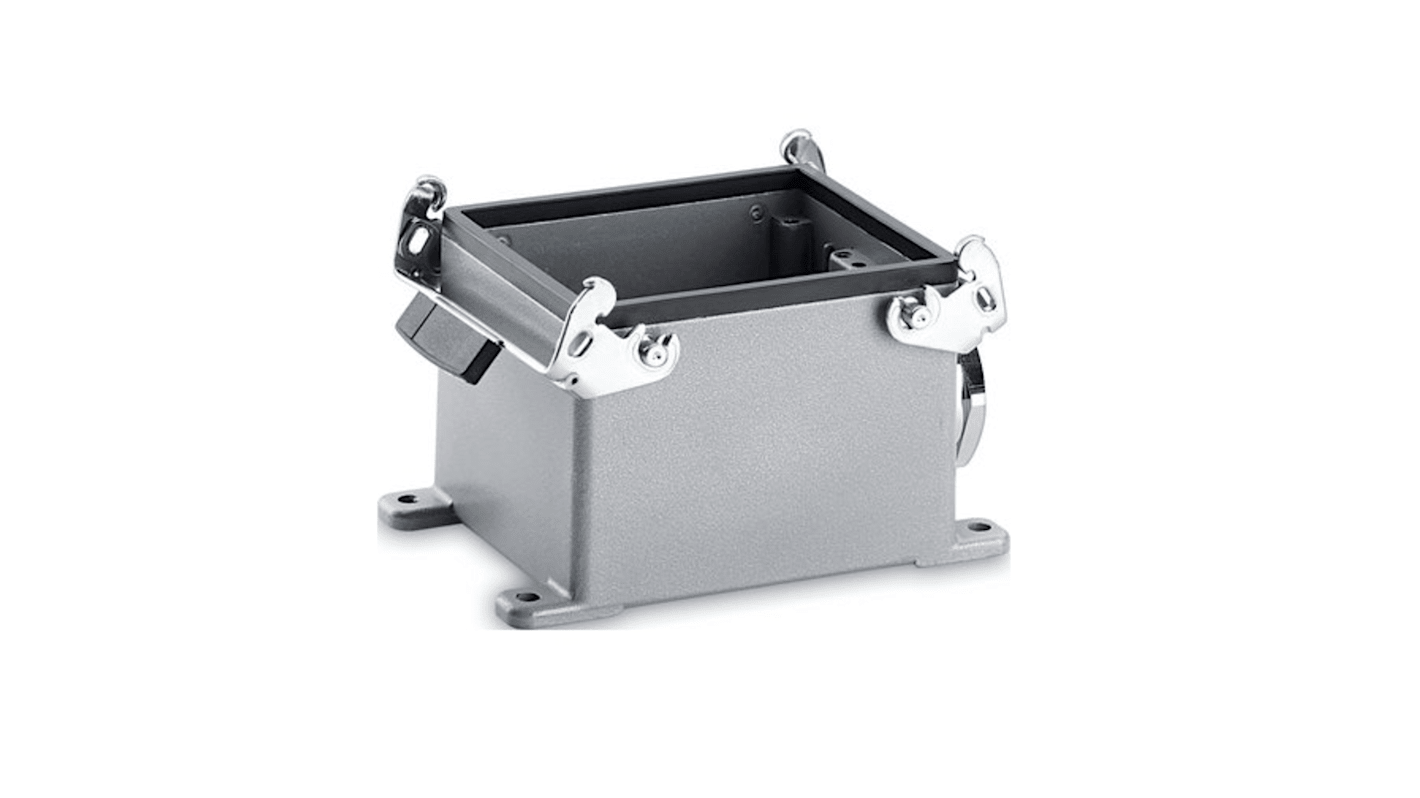

EPIC H-B Heavy Duty Power Connector Housing, 144 (H-DD), 32 (H-BE) Contacts, PG29 Thread EPIC
- RS Stock No.:
- 243-6215
- Mfr. Part No.:
- 10137000+12954600
- Brand:
- EPIC
Save 11% when you buy 50 units
Subtotal (1 unit)*
£66.77
(exc. VAT)
£80.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 12 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £66.77 |
10 - 24 | £64.11 |
25 - 49 | £61.43 |
50 + | £58.83 |
*price indicative
- RS Stock No.:
- 243-6215
- Mfr. Part No.:
- 10137000+12954600
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPIC | |
Series | H-B | |
Type | Connector Housing | |
Number of Contacts | 144 (H-DD), 32 (H-BE) | |
Thread Size | PG29 | |
Pole Format | 144P+E, 32P+E | |
Range | EPIC | |
IP Rating | IP65 | |
Cable Entry Angle | Side | |
Number of Levers | 2 | |
Select all | ||
---|---|---|
Brand EPIC | ||
Series H-B | ||
Type Connector Housing | ||
Number of Contacts 144 (H-DD), 32 (H-BE) | ||
Thread Size PG29 | ||
Pole Format 144P+E, 32P+E | ||
Range EPIC | ||
IP Rating IP65 | ||
Cable Entry Angle Side | ||
Number of Levers 2 | ||
- COO (Country of Origin):
- DE


EPIC H-BE Series Heavy Duty Power Connector Housing, PG29 Thread size, IP65 - 10137000+12954600
This EPIC connector accessory offers a robust dual cable entry angle of 'Side' and features a series standard body material of nickel-plated brass. It operates efficiently within a temperature range of -20 to 55°C and ensures durability and reliability in various environments. The product is designed with two levers for optimal functionality and performance.
Features & Benefits
• Accommodates up to 144 contacts for versatility
• Side cable entry design assists in space-limited setups
• Two levers enhance secure locking for reliability
• Compatible with PG29 thread for standardisation
• Supports a range of pole formats for custom applications
• Side cable entry design assists in space-limited setups
• Two levers enhance secure locking for reliability
• Compatible with PG29 thread for standardisation
• Supports a range of pole formats for custom applications
Applications
• Used in industrial automation systems
• Ideal for electronics manufacturing setups
• Suitable for electrical machinery connections
• Employed in mechanical equipment integration
• Ideal for electronics manufacturing setups
• Suitable for electrical machinery connections
• Employed in mechanical equipment integration
How many levers does it have?
The connector accessory includes two levers.
Can it withstand harsh environmental conditions?
Yes, it is designed to meet IP65 standards for protection.
Is it suitable for diverse industrial applications?
Yes, it is compatible with various industrial connectors.
Approvals
VDE; CSA; UL; SEV
H-BE / H-DD Hoods & Housings
HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.
Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts
These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
