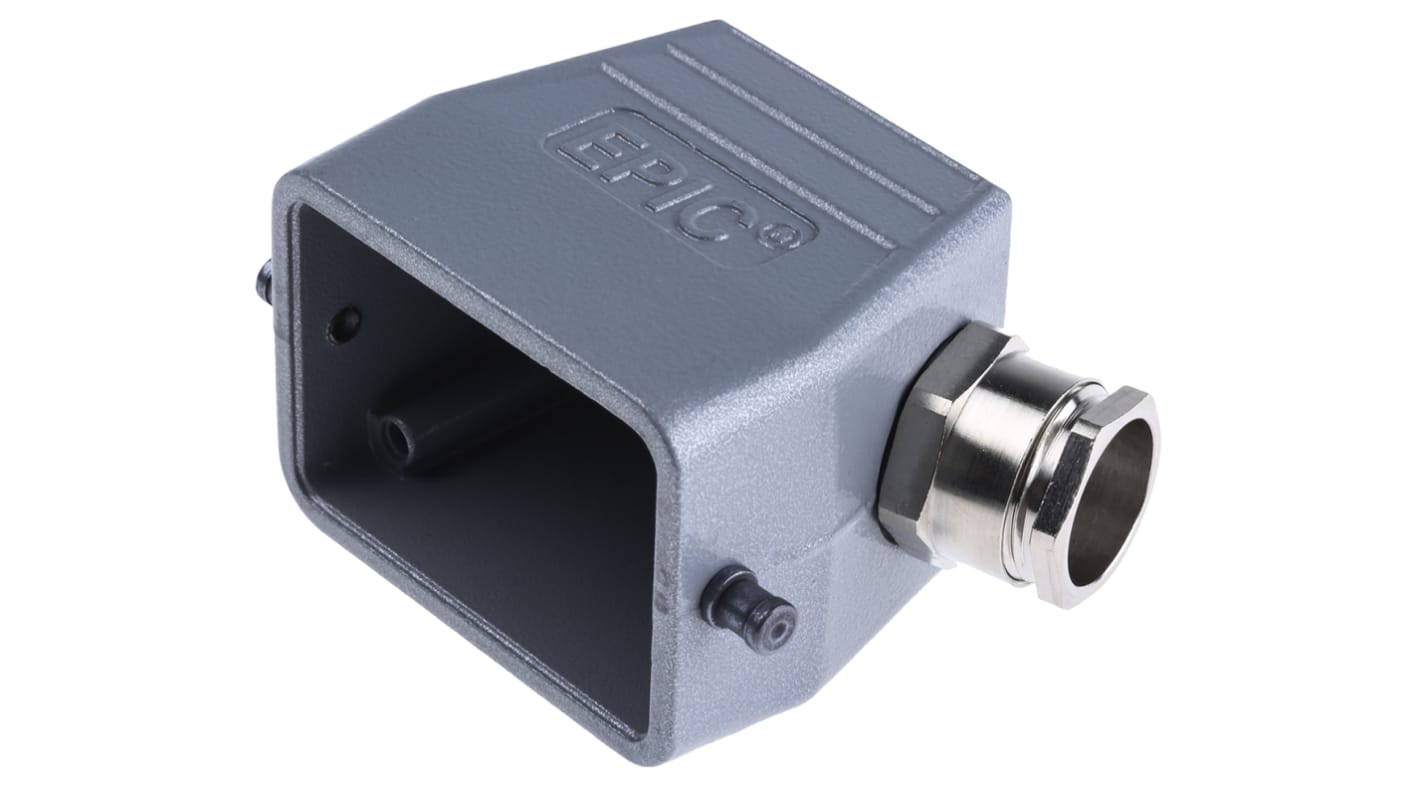

EPIC H-B Heavy Duty Power Connector Hood, 24 Contacts, PG13.5 Thread, Side Entry

RS Stock No.:: 448-698
Mfr. Part No.:: 10012000+12.9543
Brand:: EPIC

EPIC H-B Heavy Duty Power Connector Hood, 24 Contacts, PG13.5 Thread, Side Entry

Bulk discount available

Subtotal (1 unit)*

£17.32

(exc. VAT)

£20.78

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

85 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£17.32
10 - 24	£16.62
25 - 49	£15.92
50 +	£15.24

*price indicative

RS Stock No.:: 448-698
Mfr. Part No.:: 10012000+12.9543
Brand:: EPIC

H-BE/H-DD Hoods and Cable Glands. PG and Metric versions

From Contact Connectors, this hood and cable gland kit is for use with Contact Epic H-BE and H-DD connector inserts. The hoods have integrated pips to connect securely to corresponding connector housing levers.

Available in this Range

• Stock No.448-698 is a H-BE 6/H-DD 24 way side entry hood with a PG13.5 Cable Gland
• Stock No. 448-711 is a H-BE 10/H-DD 42 way side entry hood with a PG16 Cable Gland
• Stock No. 448-727 is a H-BE 16/H-DD 72 way side entry hood with a PG21 Cable Gland
• Stock No. 448-733 is a H-BE 24/H-DD 108way side entry hood with a PG21 Cable Gland
• Stock No. 448-705 is a H-BE 6/H-DD 24 way top entry hood with a PG13.5 Cable Gland
• Stock No. 243-6158 is a H-BE 10/H-DD 42 way top entry hood with a PG16 Cable Gland
• Stock No. 243-6164 is a H-BE 16/H-DD 72 way top entry hood with a PG21 Cable Gland
• Stock No. 448-749 is a H-BE 6/H-DD 24 way side entry hood with a PG21 Cable Gland
• Stock No. 448-755 is a H-BE 6/H-DD 24 way top entry hood with a PG21 Cable Gland
• Stock No. 448-761 is a H-BE 10/H-DD 42 way side entry hood with a PG29 Cable Gland
• Stock No. 298-5256 is a H-BE 10/H-DD 42 way top entry hood with a PG29 Cable Gland
• Stock No. 298-5262 is a H-BE 16/H-DD 72 way top entry hood with a PG29 Cable Gland
• Stock No. 298-5278 is a H-BE 24/H-DD 108 way top entry hood with a PG29 Cable Gland
• Stock No. 243-6186 is a H-BE 24/H-DD 108 way top entry hood with a PG21 Cable Gland

Approvals

UL listed, CSA certified, SEV

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EPIC
	Series	H-B
	Type	Connector Hood
	Number of Contacts	24
	Thread Size	PG13.5
	Body Orientation	Side Entry
	Pole Format	24P+E
	Current Rating	16A
	Voltage Rating	440 V ac
	Gender	Female, Male

	Select all
	Brand EPIC
	Series H-B
	Type Connector Hood
	Number of Contacts 24
	Thread Size PG13.5
	Body Orientation Side Entry
	Pole Format 24P+E
	Current Rating 16A
	Voltage Rating 440 V ac
	Gender Female, Male
