AAVID THERMALLOY Heatsink, Power Semiconductors, 1.55°C/W 75 mm 100 mm 40 mm
- RS Stock No.:
- 712-4383
- Mfr. Part No.:
- 0S517/100/B
- Brand:
- AAVID THERMALLOY
Image representative of range
Bulk discount available
Subtotal (1 unit)*
£16.45
(exc. VAT)
£19.74
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £16.45 |
| 10 - 24 | £15.64 |
| 25 - 49 | £15.14 |
| 50 - 99 | £14.70 |
| 100 + | £14.24 |
*price indicative
- RS Stock No.:
- 712-4383
- Mfr. Part No.:
- 0S517/100/B
- Brand:
- AAVID THERMALLOY
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AAVID THERMALLOY | |
| For Use With | Power Semiconductors | |
| Product Type | Heatsink | |
| Length | 100mm | |
| Width | 40 mm | |
| Height | 75mm | |
| Thermal Resistance | 1.55°C/W | |
| Fastening | Clip | |
| Colour | Black Anodised | |
| Finish | Nickel Plated, Black Anodised | |
| Compatible Package Type | TO-0220, TO-0218, TO-0247J, TO-092, TO-0247, TO-247, TO-220 | |
| Standards/Approvals | RoHS | |
| Application | Cooling | |
| Special Features | Easy to Assemble/Disassemble, Vibration Resistance, Suitable for Automated or Manual Assembly, Constant Pressure, Low Stress on Component, Suitable for Thin Components, Corrosion Resistance, Patented System, High Elasticity, Even Pressure Distribution | |
| Select all | ||
|---|---|---|
Brand AAVID THERMALLOY | ||
For Use With Power Semiconductors | ||
Product Type Heatsink | ||
Length 100mm | ||
Width 40 mm | ||
Height 75mm | ||
Thermal Resistance 1.55°C/W | ||
Fastening Clip | ||
Colour Black Anodised | ||
Finish Nickel Plated, Black Anodised | ||
Compatible Package Type TO-0220, TO-0218, TO-0247J, TO-092, TO-0247, TO-247, TO-220 | ||
Standards/Approvals RoHS | ||
Application Cooling | ||
Special Features Easy to Assemble/Disassemble, Vibration Resistance, Suitable for Automated or Manual Assembly, Constant Pressure, Low Stress on Component, Suitable for Thin Components, Corrosion Resistance, Patented System, High Elasticity, Even Pressure Distribution | ||

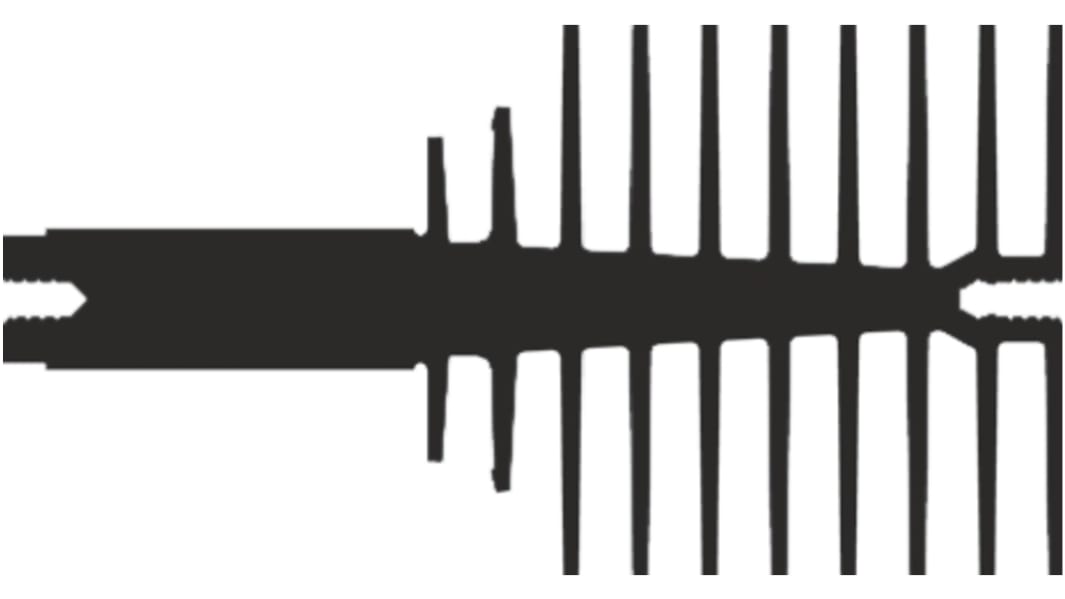

The Max Clip System™ OS517 Profile
Clip mounting technology offers high reliability
Economic and manufacturing benefits that replace rivets and screws
Simplified and rapid assembly for mounting a semiconductor to the heatsink
Improved performance with the use of special thermal interface materials
