Fischer Elektronik Heatsink, TO-247, TO-218, TO-220, TO-248 Packages 27 mm 20mm
- RS Stock No.:
- 283-5908
- Distrelec Article No.:
- 175-58-638
- Mfr. Part No.:
- FK 243 MI 247 O
- Brand:
- Fischer Elektronik
Stock information currently inaccessible
- RS Stock No.:
- 283-5908
- Distrelec Article No.:
- 175-58-638
- Mfr. Part No.:
- FK 243 MI 247 O
- Brand:
- Fischer Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fischer Elektronik | |
| Product Type | Heatsink | |
| For Use With | TO-247, TO-218, TO-220, TO-248 Packages | |
| Length | 27mm | |
| Width | 20mm | |
| Series | FK | |
| Colour | Silver | |
| Compatible Package Type | TO-248, TO-218, TO-247, TO-220 | |
| Standards/Approvals | No | |
| Application | Cooling | |
| Material | Copper | |
| Select all | ||
|---|---|---|
Brand Fischer Elektronik | ||
Product Type Heatsink | ||
For Use With TO-247, TO-218, TO-220, TO-248 Packages | ||
Length 27mm | ||
Width 20mm | ||
Series FK | ||
Colour Silver | ||
Compatible Package Type TO-248, TO-218, TO-247, TO-220 | ||
Standards/Approvals No | ||
Application Cooling | ||
Material Copper | ||
- COO (Country of Origin):
- DE

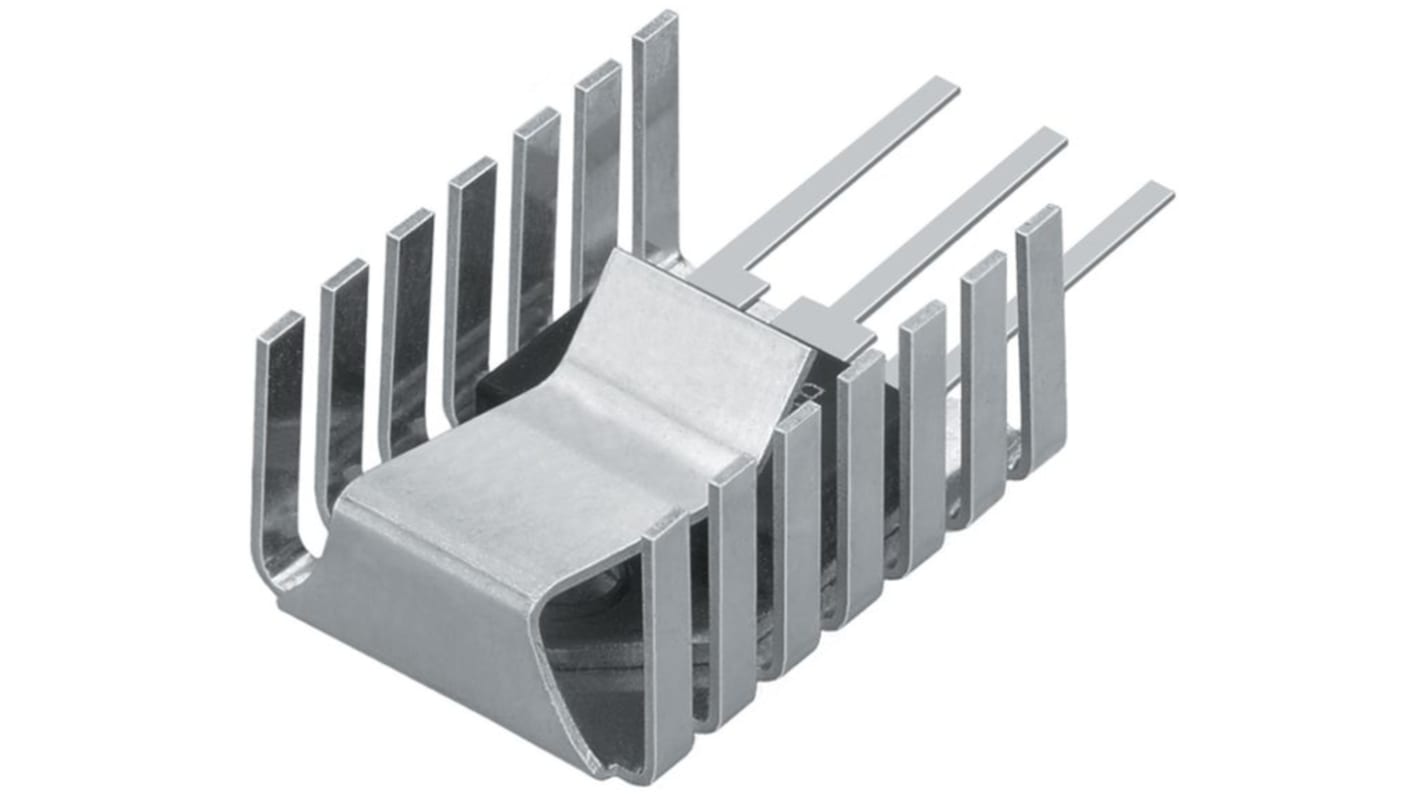

The Clip-on heatsink is designed to efficiently dissipate heat from transistors in plastic cases. With a copper material and solderable surface, it offers a thermal resistance of 18.7 K/W without solder lug, making it ideal for horizontal and vertical installations.
Suitable for use with transistors in plastic cases
Made of 0.6mm thick copper material
Solderable surface for easy installation
Three variants available for different installation orientations
Efficiently dissipates heat with a thermal resistance of 18.7 K/W
