Heatsink, TO-220, 18.3 x 16 x 35.6mm
- RS Stock No.:
- 263-4353
- Mfr. Part No.:
- WA-T220-101E
- Brand:
- Arcol Ohmite
Available to back order for despatch 08/05/2024
Added
Price Each
£1.81
(exc. VAT)
£2.17
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £1.81 |
| 5 - 9 | £1.54 |
| 10 - 24 | £1.50 |
| 25 + | £1.46 |
- RS Stock No.:
- 263-4353
- Mfr. Part No.:
- WA-T220-101E
- Brand:
- Arcol Ohmite
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

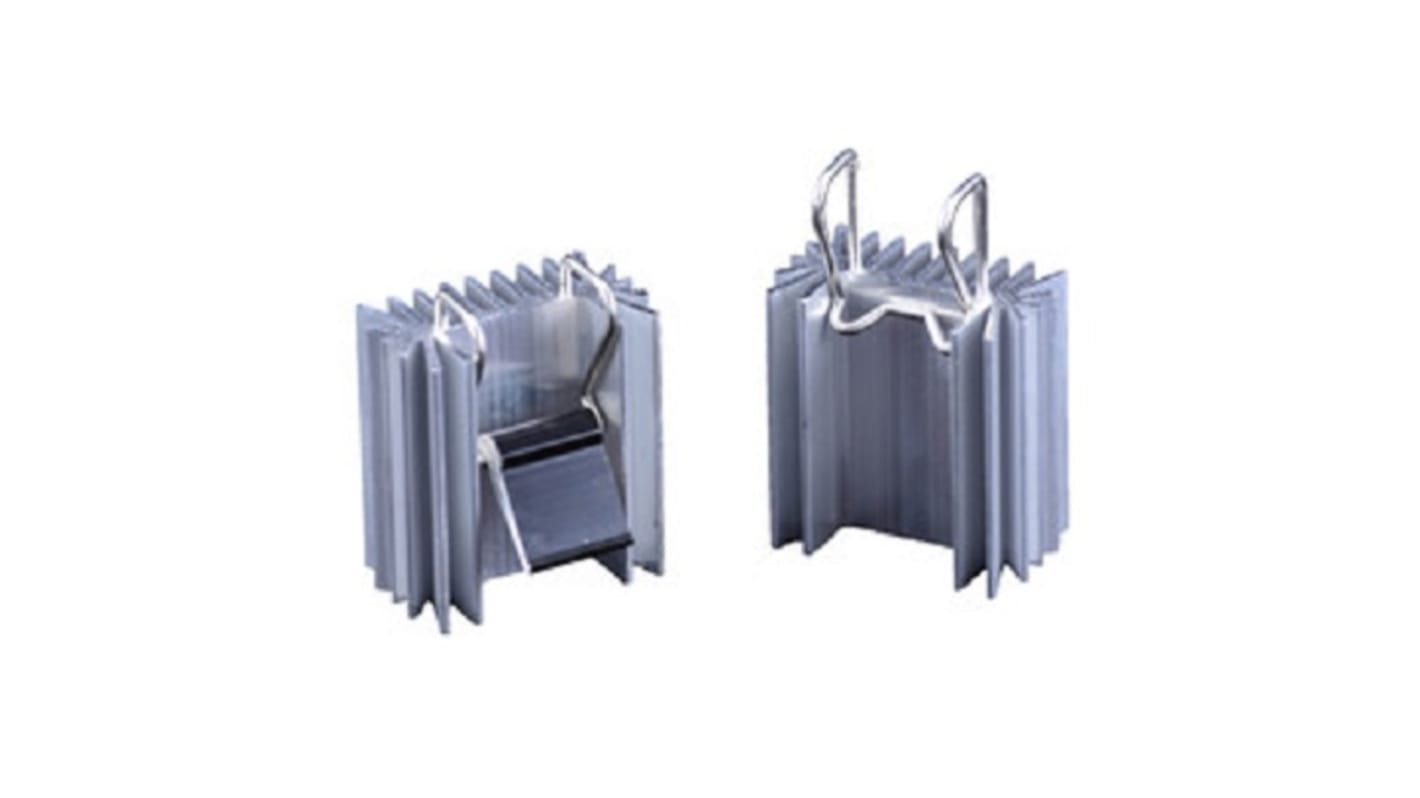

The Arcol Ohmite W series heat sink combines a tin plated, solderable, integral spring clip with an extruded aluminium heat sink body for an all in one solution to through hole mounting of TO-220.
Reduced assembly cost
Maximum repeatability that is clamping force of the spring clip is not degraded by repeated loading and unloading
Maximum heat transfer per unit ppace
Maximum resistance to shock and vibration
Maximum reliability that helps prevent short circuits
RoHS compliant
Maximum repeatability that is clamping force of the spring clip is not degraded by repeated loading and unloading
Maximum heat transfer per unit ppace
Maximum resistance to shock and vibration
Maximum reliability that helps prevent short circuits
RoHS compliant
Specifications
Attribute | Value |
|---|---|
| For Use With | TO-220 |
| Length | 18.3mm |
| Width | 16mm |
| Height | 35.6mm |
| Dimensions | 18.3 x 16 x 35.6mm |
