Arcol Ohmite Heatsink, TO-247, 23.1 x 16 x 35.6mm
- RS Stock No.:
- 263-4354
- Mfr. Part No.:
- WA-T247-101E
- Brand:
- Arcol Ohmite
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 263-4354
- Mfr. Part No.:
- WA-T247-101E
- Brand:
- Arcol Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol Ohmite | |
| For Use With | TO-247 | |
| Length | 23.1mm | |
| Width | 16mm | |
| Height | 35.6mm | |
| Dimensions | 23.1 x 16 x 35.6mm | |
Select all | ||
|---|---|---|
Brand Arcol Ohmite | ||
For Use With TO-247 | ||
Length 23.1mm | ||
Width 16mm | ||
Height 35.6mm | ||
Dimensions 23.1 x 16 x 35.6mm | ||
- COO (Country of Origin):
- CN

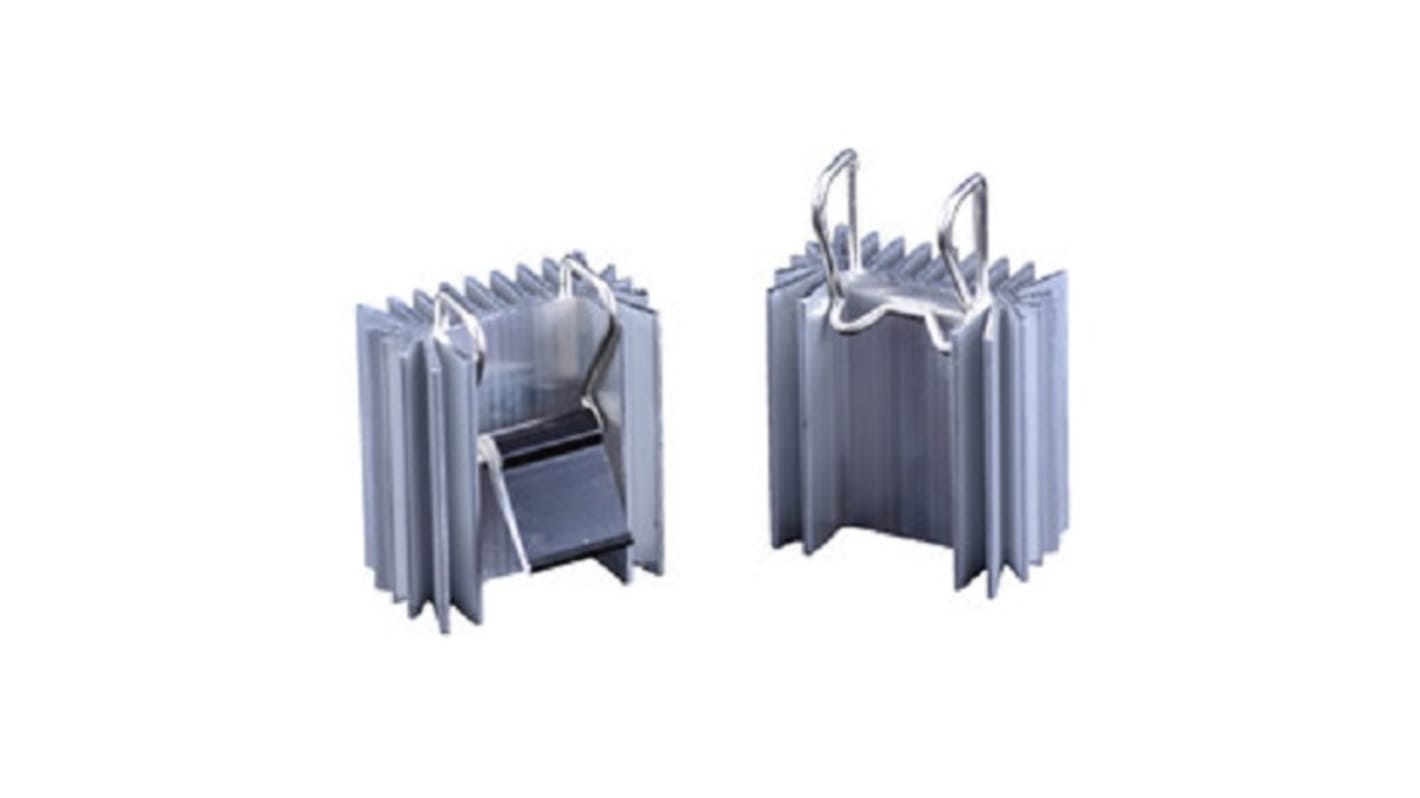

The Arcol Ohmite W series Heat sink combines a tin plated, solderable, integral spring clip with an extruded aluminium heat sink body for an all in one solution to through hole mounting of TO-247.
Reduced assembly cost
Maximum repeatability that is clamping force of the spring clip is not degraded by repeated loading and unloading
Maximum heat transfer per unit ppace
Maximum resistance to shock and vibration
Maximum reliability that helps prevent short circuits
RoHS compliant
Maximum repeatability that is clamping force of the spring clip is not degraded by repeated loading and unloading
Maximum heat transfer per unit ppace
Maximum resistance to shock and vibration
Maximum reliability that helps prevent short circuits
RoHS compliant
