Arcol Ohmite Heatsink, TO-220, TO-247, TO-218, 4.7°C/W 25 mm 25.4 mm 41.6 mm
- RS Stock No.:
- 227-5378
- Mfr. Part No.:
- FA-T220-25E
- Brand:
- Arcol Ohmite
Bulk discount available
Subtotal (1 unit)*
£3.88
(exc. VAT)
£4.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 471 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.88 |
| 10 - 24 | £3.79 |
| 25 - 49 | £3.64 |
| 50 - 99 | £3.44 |
| 100 + | £3.35 |
*price indicative
- RS Stock No.:
- 227-5378
- Mfr. Part No.:
- FA-T220-25E
- Brand:
- Arcol Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol Ohmite | |
| For Use With | TO-220, TO-247, TO-218 | |
| Product Type | Heatsink | |
| Length | 25.4mm | |
| Width | 41.6 mm | |
| Height | 25mm | |
| Fastening | Vertical | |
| Thermal Resistance | 4.7°C/W | |
| Series | F and R | |
| Finish | Black Anodised | |
| Compatible Package Type | TO-218, TO-220, TO-247 | |
| Standards/Approvals | No | |
| Material | Aluminium | |
| Surface Area | 9285mm² | |
| Select all | ||
|---|---|---|
Brand Arcol Ohmite | ||
For Use With TO-220, TO-247, TO-218 | ||
Product Type Heatsink | ||
Length 25.4mm | ||
Width 41.6 mm | ||
Height 25mm | ||
Fastening Vertical | ||
Thermal Resistance 4.7°C/W | ||
Series F and R | ||
Finish Black Anodised | ||
Compatible Package Type TO-218, TO-220, TO-247 | ||
Standards/Approvals No | ||
Material Aluminium | ||
Surface Area 9285mm² | ||
- COO (Country of Origin):
- CN

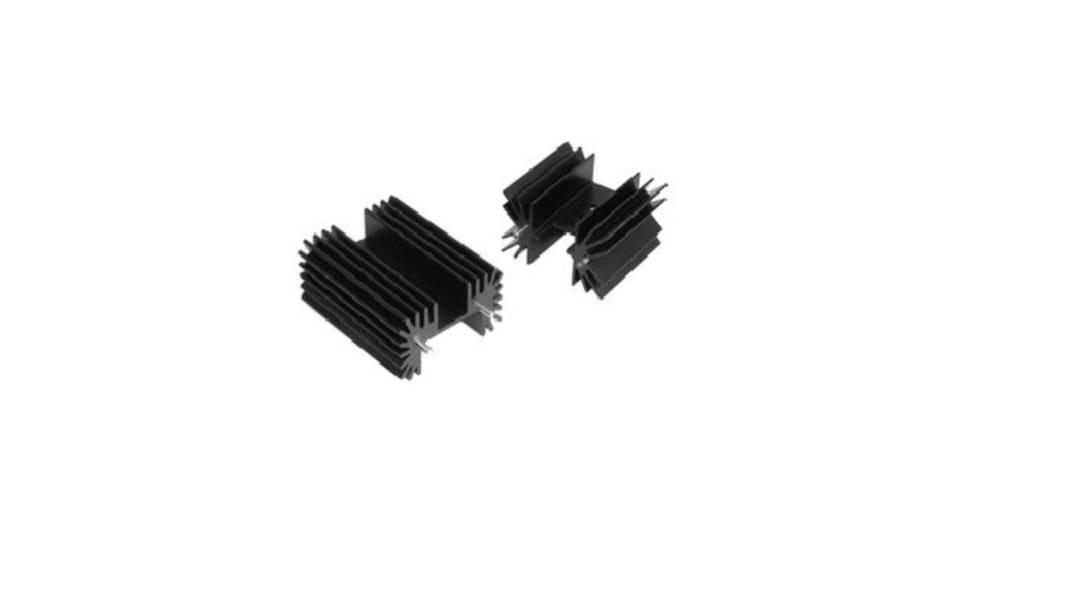

The Arcol Ohmite Heatsink is used with vertical mounting with solderable pins.
For TO-220, TO-218, TO-247
