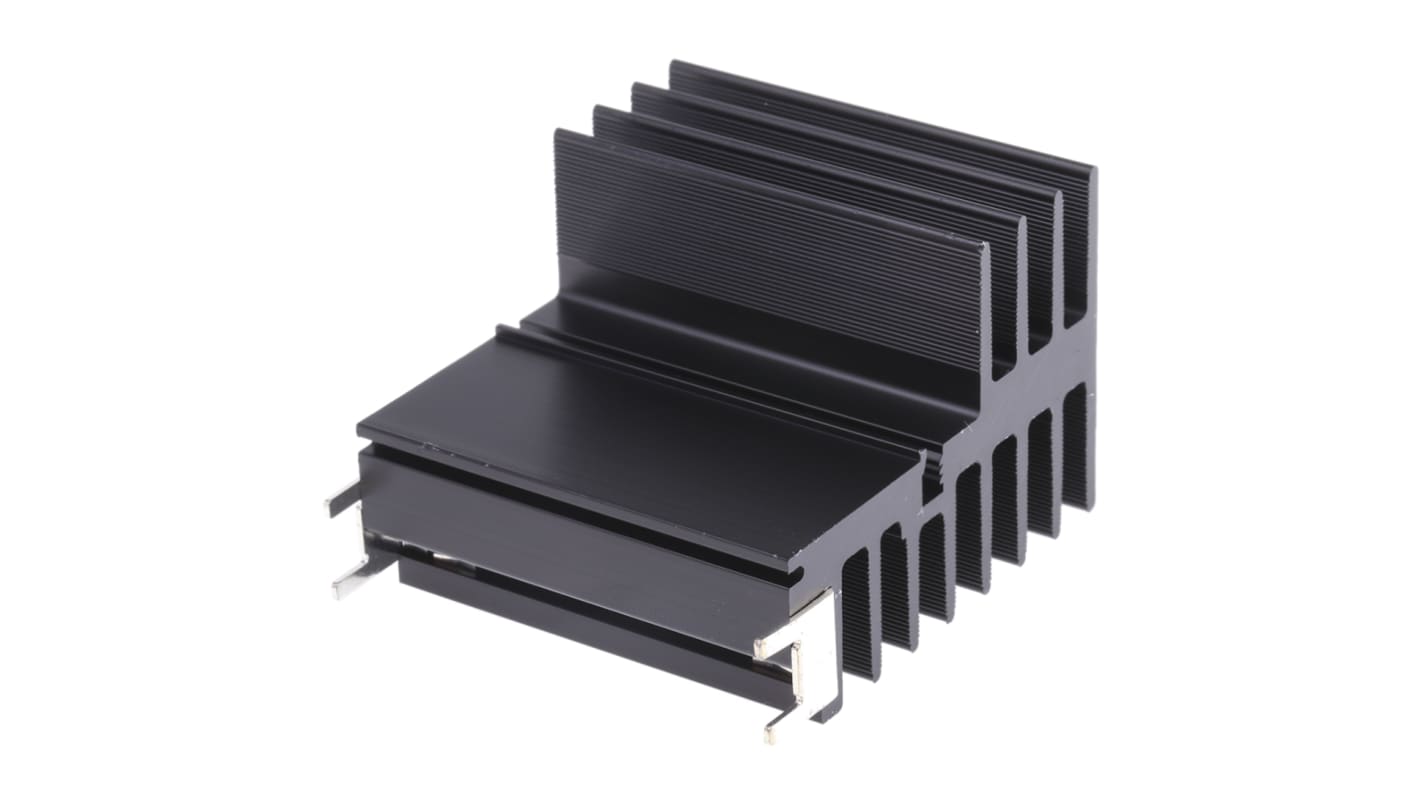

RS PRO Heatsink, Universal Rectangular Alu, 3.2K/W, 50 x 54 x 38mm, PCB Mount
- RS Stock No.:
- 234-2435
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.46
(exc. VAT)
£6.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 324 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.46 |
10 - 24 | £5.05 |
25 - 49 | £4.81 |
50 - 99 | £4.65 |
100 + | £4.26 |
*price indicative
- RS Stock No.:
- 234-2435
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
For Use With | Universal Rectangular Alu | |
Length | 50mm | |
Width | 54mm | |
Height | 38mm | |
Dimensions | 50 x 54 x 38mm | |
Thermal Resistance | 3.2K/W | |
Mounting | PCB Mount | |
Colour | Black | |
Package Type | TO-218, TO-220 | |
Material | Aluminium | |
Select all | ||
---|---|---|
Brand RS PRO | ||
For Use With Universal Rectangular Alu | ||
Length 50mm | ||
Width 54mm | ||
Height 38mm | ||
Dimensions 50 x 54 x 38mm | ||
Thermal Resistance 3.2K/W | ||
Mounting PCB Mount | ||
Colour Black | ||
Package Type TO-218, TO-220 | ||
Material Aluminium | ||
- COO (Country of Origin):
- GB
Non Standard Extrusion 54mm Wide x 38mm High
Note
Thermal resistance quoted is with fins vertical in free air. Length dimension refers to extrusion length along fins.
Note
Abl standard installation notch dimensions are 6.4mm maximum depth x 6.4mm across
