RS PRO Heating Element, 50 mm, 75 mm, Heater Mat, 3.75 W, 12 V

View all Heating Elements
Bulk discount available

Subtotal (1 unit)*

£51.32

(exc. VAT)

£61.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£51.32
5 - 9£49.74
10 +£48.66

*price indicative

RS Stock No.:
798-3766
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Heating Element

Element Type

Heater Mat

Power Rating

3.75W

Overall Length

50mm

Overall Width

75mm

Standards/Approvals

RoHS

Supply Voltage

12 V

COO (Country of Origin):
GB

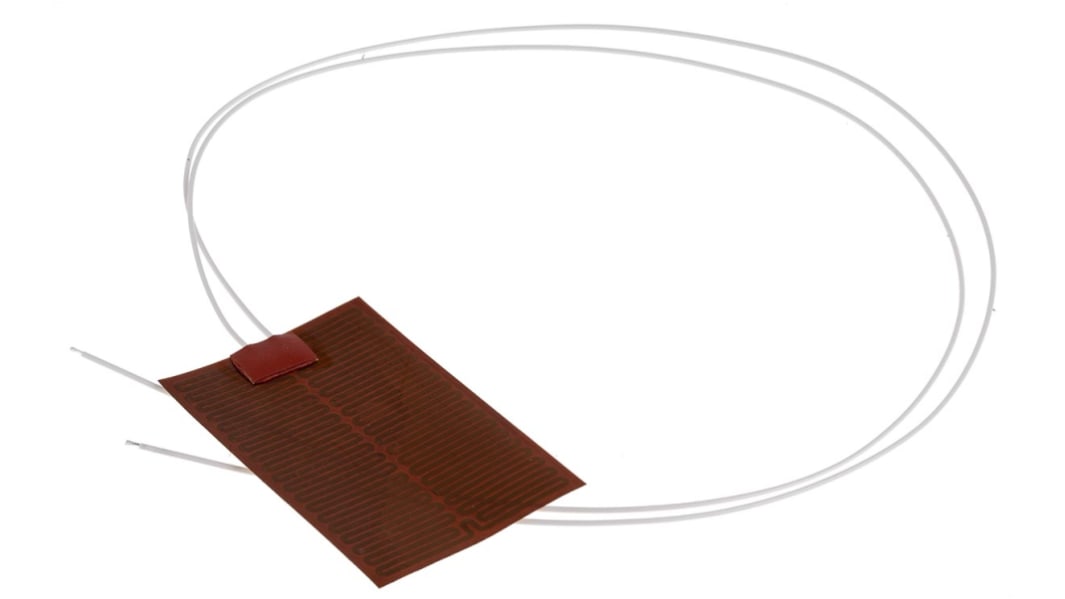

RS PRO Heating Element


This heating element from RS PRO is ideal in situations where you need to generate heat in a very compact space. The heater mat is a fraction of a millimetre thick and has very little thermal mass, allowing it to respond very quickly to the application or removal of power. As the Kapton© polyimide material provides excellent electrical insulation, you can safely attach it to a metal system and transfer heat directly into it.

This heating element is ideal for military, medical, lab or photographic applications thanks to its low out-gassing properties and ease of cleaning and sterilisation. The element supports a broad operating temperature range of -60°C to +200°C, making it suitable for a range of demanding applications. It's ideally used with a thermocouple or limit switch to sense and control the temperature.

Features and Benefits


• Suitable for laboratory research, LCD displays and computer equipment, medical sterilisation, military and aerospace applications and photographic and optical equipment

• Heater mat element type

• Length of 50 mm

• Polyimide material

• Maximum operating temperature of +200°C

• Thickness of 0.2 mm

• Width of 100 mm
