Bulk discount available
Subtotal (1 unit)*
£54.91
(exc. VAT)
£65.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £54.91 |
| 5 - 9 | £53.20 |
| 10 + | £52.05 |
*price indicative
- RS Stock No.:
- 790-4849
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Element Type | Band Heater | |
| Power Rating | 150 W | |
| Supply Voltage | 230 V ac | |
| Width | 25mm | |
| Diameter | 40 mm | |
| Lead Length | 1m | |
| Peak Temperature | +300°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Element Type Band Heater | ||
Power Rating 150 W | ||
Supply Voltage 230 V ac | ||
Width 25mm | ||
Diameter 40 mm | ||
Lead Length 1m | ||
Peak Temperature +300°C | ||
- COO (Country of Origin):
- CN

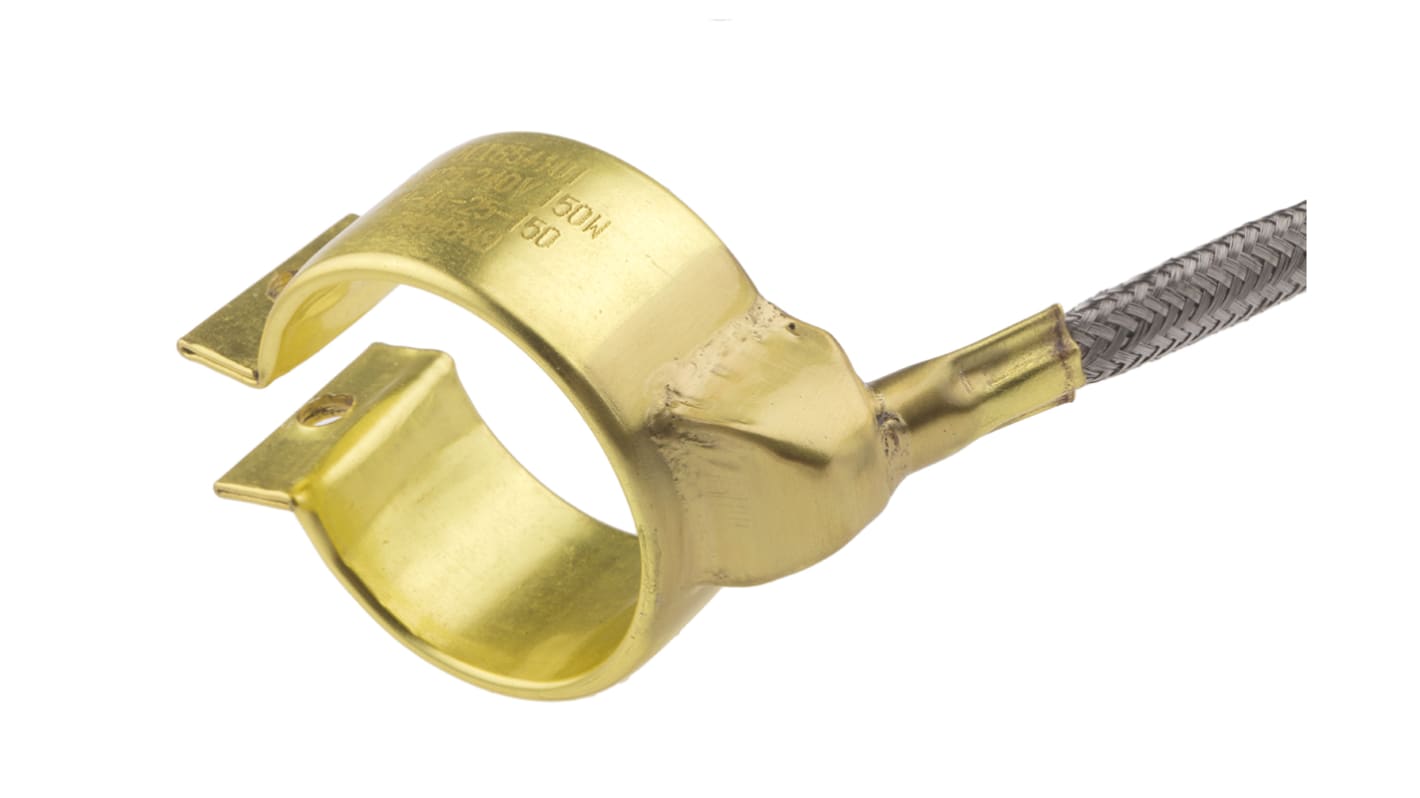

Sealed Mica Nozzle Heaters
These nozzle heaters are hermetically sealed for liquid plastic within the manufacturing process. These types of heaters are used to give long life where normal mica heaters cannot last as long due to process leakages.
These heaters are typically used on injection moulding machines, extruders, dies, moulds and process machinery.
These heaters are typically used on injection moulding machines, extruders, dies, moulds and process machinery.
Constructed by winding resistance wire
Insulated and terminal connections fitted
Encased in brass casing which gives good mechanical strength and protection
Supply voltage is 230 V
Up to 300 °C
Cable length is 1m
Available in various sizes
Insulated and terminal connections fitted
Encased in brass casing which gives good mechanical strength and protection
Supply voltage is 230 V
Up to 300 °C
Cable length is 1m
Available in various sizes
Multi-Purpose Process Heaters
In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.
Warning
These heaters shall only be used where adequate electrical, thermal and mechanical barriers are provided to prevent access to hazardous parts without the use of a tool.
