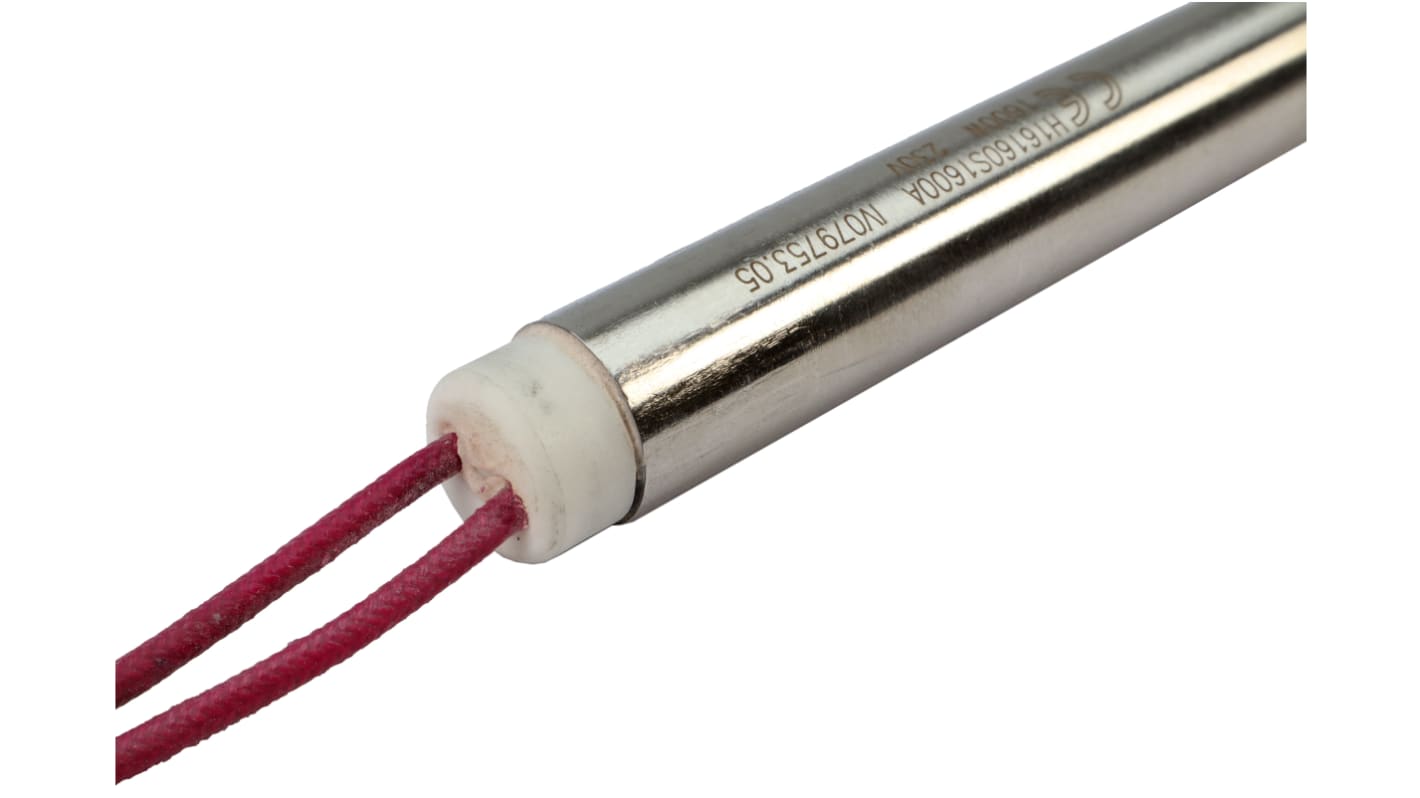

Acim Jouanin Cartridge Heater, 160mm, 1.6 kW, 230 V ac
- RS Stock No.:
- 231-8009
- Mfr. Part No.:
- H16x160x1600
- Brand:
- Acim Jouanin
Subtotal (1 unit)*
£50.40
(exc. VAT)
£60.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £50.40 |
*price indicative
- RS Stock No.:
- 231-8009
- Mfr. Part No.:
- H16x160x1600
- Brand:
- Acim Jouanin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Acim Jouanin | |
Element Type | Cartridge Heater | |
Power Rating | 1.6 kW | |
Supply Voltage | 230 V ac | |
Length | 160mm | |
Heating Element Form | Tubular | |
Select all | ||
---|---|---|
Brand Acim Jouanin | ||
Element Type Cartridge Heater | ||
Power Rating 1.6 kW | ||
Supply Voltage 230 V ac | ||
Length 160mm | ||
Heating Element Form Tubular | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Acim Jouanin high-charge cartridge heater allow metal parts to be heated quickly. Inserted into bores, they operate in harsh environments. It has insulation by very high purity magnesium oxide with a specific, highly compacted particle size and used flexible power cables, nickel core, siliconized fiberglass insulated. It used nickel-chrome resistance wire wound on high quality sintered magnesia bars.
Stainless steel sheath, with plasma welded end disc
Maximum temperature 350 ° C
Wattage tolerance + 5% to -10%
Maximum temperature 350 ° C
Wattage tolerance + 5% to -10%
