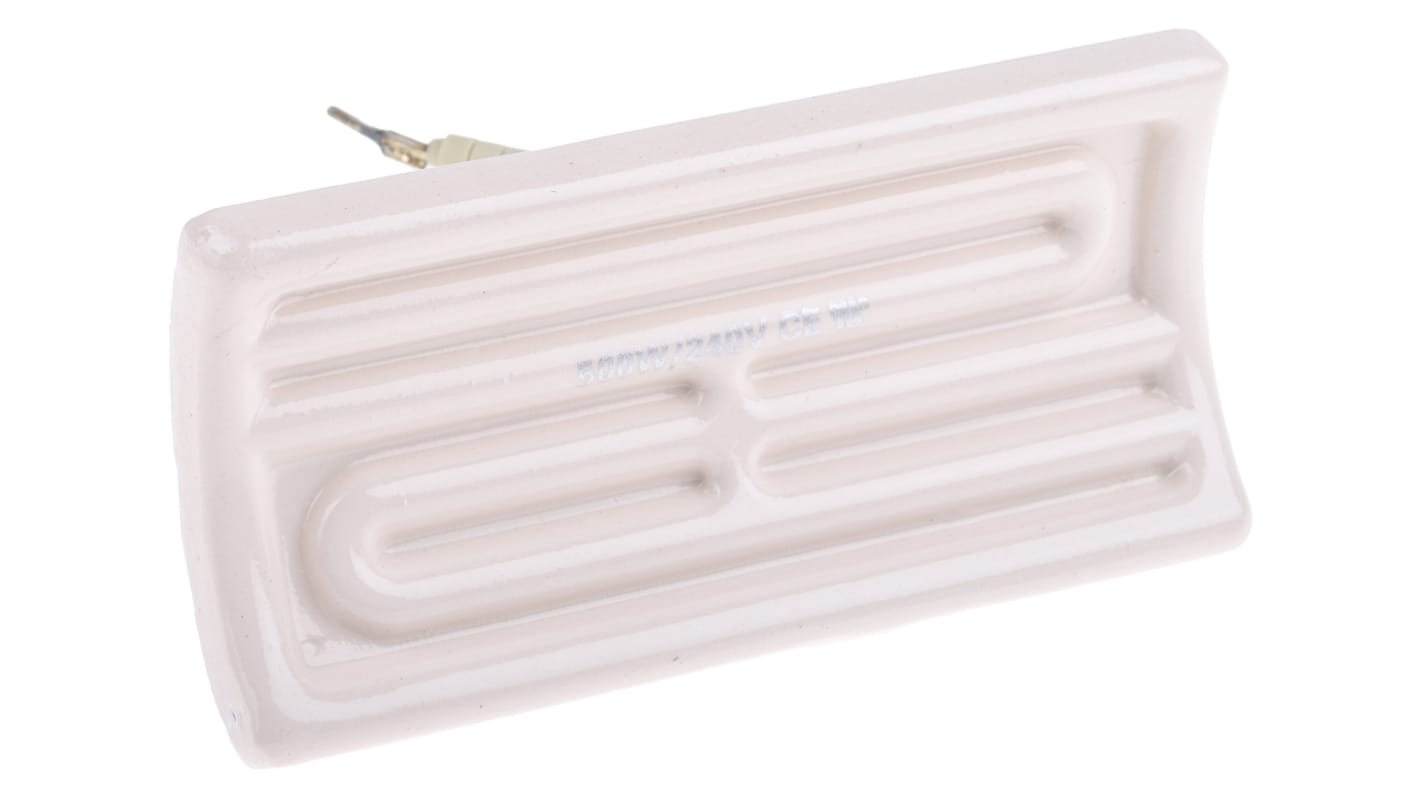

RS PRO Ceramic Heating Element, 122mm, 500 W, 230 V ac
- RS Stock No.:
- 198-8529
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£30.64
(exc. VAT)
£36.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 127 unit(s) ready to ship
- Plus 41 unit(s) ready to ship from another location
- Plus 38 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £30.64 |
5 - 9 | £29.73 |
10 + | £29.09 |
*price indicative
- RS Stock No.:
- 198-8529
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Power Rating | 500 W | |
Supply Voltage | 230 V ac | |
Length | 122mm | |
Width | 60mm | |
Thickness | 35mm | |
Heating Element Form | Curved Ceramic Element | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Power Rating 500 W | ||
Supply Voltage 230 V ac | ||
Length 122mm | ||
Width 60mm | ||
Thickness 35mm | ||
Heating Element Form Curved Ceramic Element | ||
- COO (Country of Origin):
- CN
RS PRO Ceramic Heating Element, 122 mm, 500 W, 230 V AC
Use this handy, compact ceramic heating element from RS PRO when you've got plastic weldings or paint coatings that need curing. Its concave, curved shape focuses heat just where you need it, which makes it extremely energy efficient.
The heater is power rated at 500 W with a supply voltage of 230 V AC. Its glazed ceramic construction is resistant to corrosion, and the element is designed to last – it has a guaranteed working life of between 5,000 and 10,000 hours. With a maximum operating temperature of +700°C, it's suitable for even the most challenging industrial environments.
Part of the tried and tested RS PRO range, this curved ceramic heating element has undergone strict quality controls, so you're assured a reliable product. It also meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for safe electrostatic discharge.
The heater is power rated at 500 W with a supply voltage of 230 V AC. Its glazed ceramic construction is resistant to corrosion, and the element is designed to last – it has a guaranteed working life of between 5,000 and 10,000 hours. With a maximum operating temperature of +700°C, it's suitable for even the most challenging industrial environments.
Part of the tried and tested RS PRO range, this curved ceramic heating element has undergone strict quality controls, so you're assured a reliable product. It also meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for safe electrostatic discharge.
Features and Benefits
• Curved ceramic heating element
• Power rating of 500 W
• Supply voltage of 230 V
• Length of 122 mm
• Width of 60 mm
• Thickness of 35 mm
• Maximum surface temperature of +700°C
• Working life of 5000-10,000 hours
• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
• Power rating of 500 W
• Supply voltage of 230 V
• Length of 122 mm
• Width of 60 mm
• Thickness of 35 mm
• Maximum surface temperature of +700°C
• Working life of 5000-10,000 hours
• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
