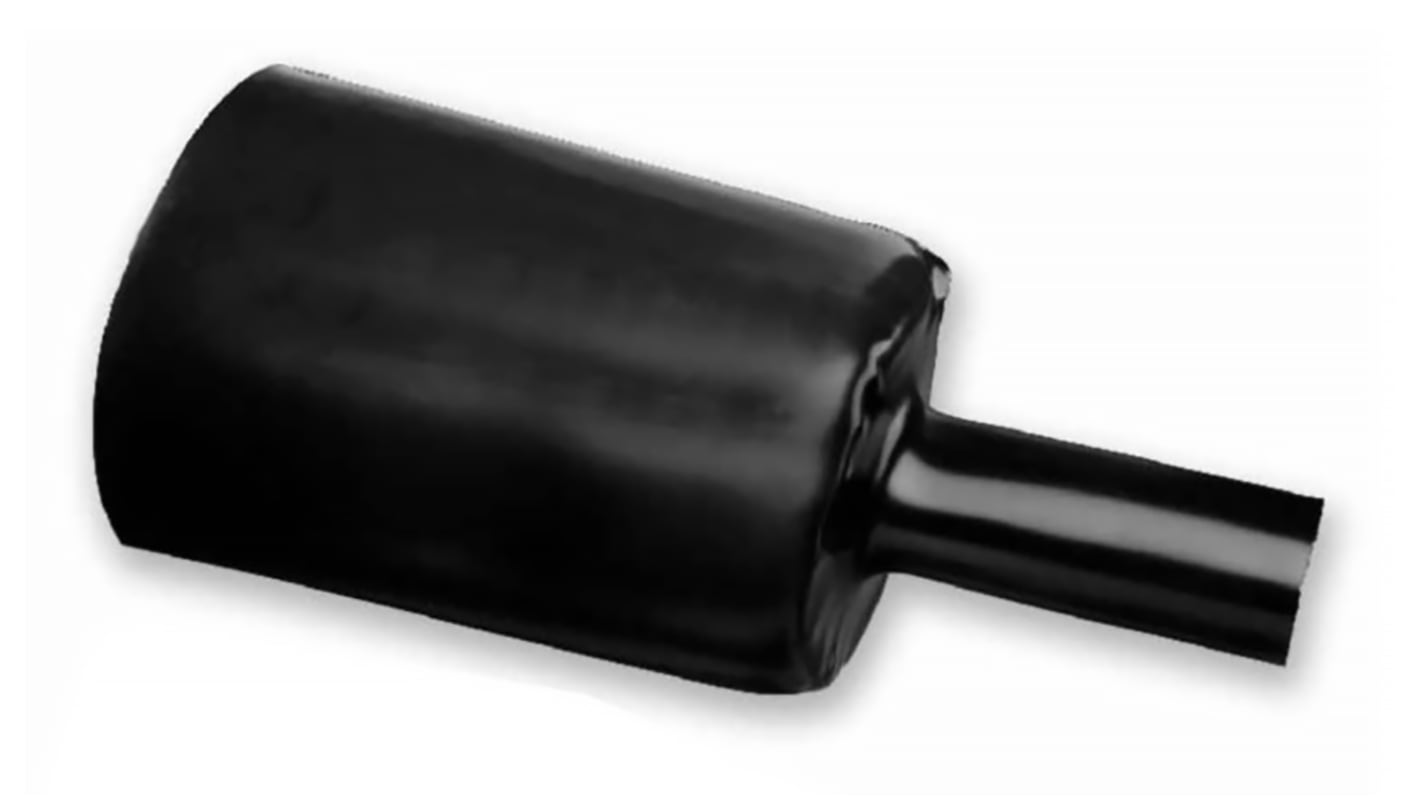

TE Connectivity Adhesive Lined Halogen Free Heat Shrink Tubing, Black 56mm Sleeve Dia. x 1.2m Length 4:1 Ratio, RHW

RS Stock No.:: 808-7869
Mfr. Part No.:: RHW-56/16-1200/ADH-0
Brand:: TE Connectivity

TE Connectivity Adhesive Lined Halogen Free Heat Shrink Tubing, Black 56mm Sleeve Dia. x 1.2m Length 4:1 Ratio, RHW

678 In stock - FREE next working day delivery available

10 available from Europe for delivery within 2 working day(s).

Price Each

£46.69

(exc. VAT)

£56.03

(inc. VAT)

Units	Per unit
1 - 14	£46.69
15 - 49	£44.40
50 +	£42.91

RS Stock No.:: 808-7869
Mfr. Part No.:: RHW-56/16-1200/ADH-0
Brand:: TE Connectivity

Technical Reference

RHW Heavy Wall Heatshrink Data Sheet

Legislation and Compliance

COO (Country of Origin):: CZ

Product Details

RHW Heavy Wall Heatshrink Tubing

This is a rugged heavy wall RHW tubing designed specifically for insulation, protection and sealing electrical connections and joints in low voltage cables. Whenever maximum mechanical protection is required in an electrical insulation system RHW is the ideal choice.

Withstands mechanical abuse
Impact and abrasion resistance
High level strain relief when installed on splices and joints
Chemical, moisture and oil resistant
Complete moisture proof seal preventing corrosion
Adhesive liner formulated uniquely to seal to common insulation materials for example PVC, Neoprene
Can be easily installed using a torch or heat gun
High shrink ratio
Halogen Free
UV Resistant
RoHS Compliant

Applications:

Power distribution
Buses and trucks
Heavy equipment
Locomotives and rail cars
Shipyards
Underground wells

Standards

RHW, SCD, UL File E91151 (Sizes 12/3 - 70/20 only)

Specifications

Attribute	Value
Sleeve Diameter	56mm
Colour	Black
Shrunk Diameter	16mm
Sleeve Type	Heat Shrink
Adhesive Lined	Yes
Shrink Ratio	4:1
Sleeve Length	1.2m
Material	Polyolefin
Operating Temperature Range	-40 → +110 °C
Flame Retardant	No
Halogen Free	Yes
Standards Met	UL
Series	RHW
