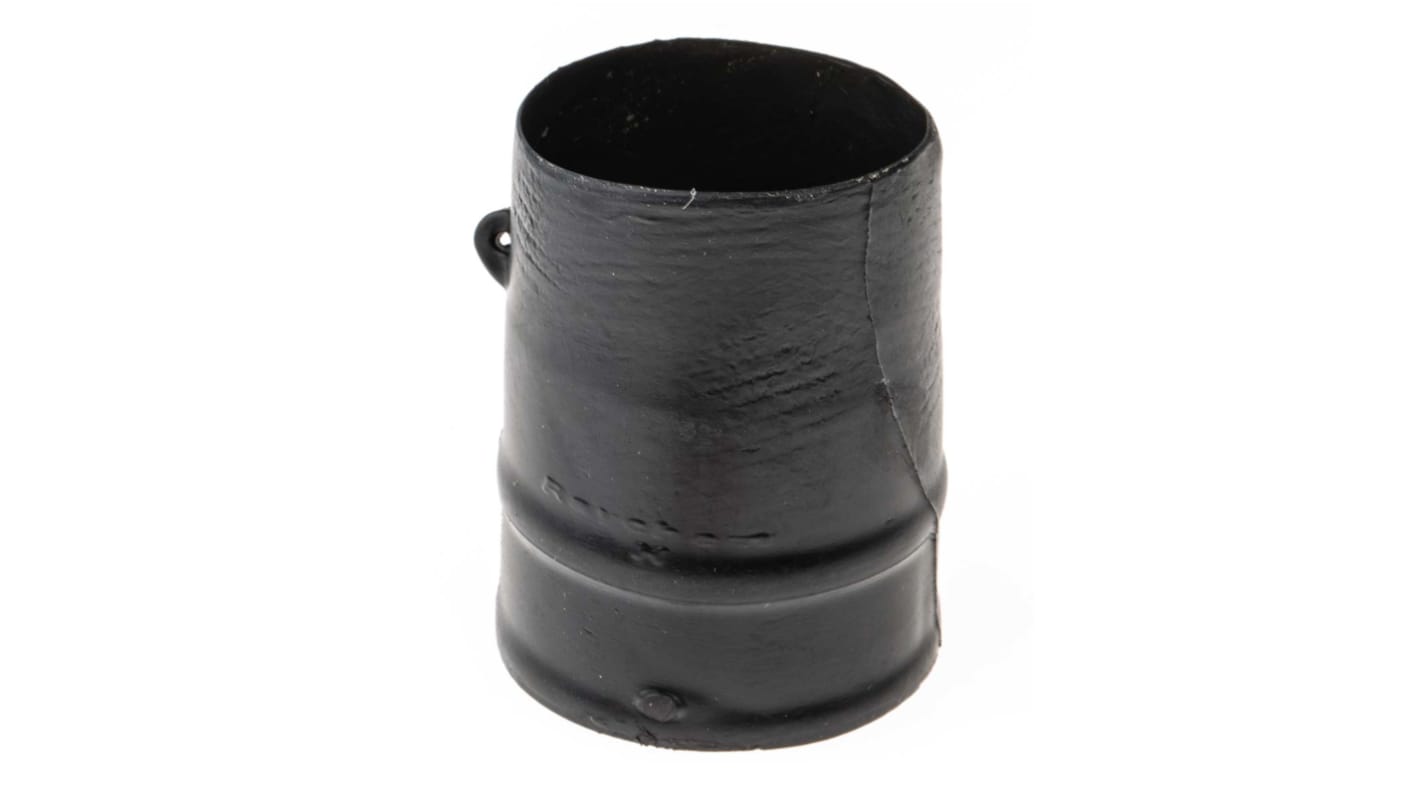

TE Connectivity Straight, Fluid Resistant Elastomer Adhesive Lined, 31mm
- RS Stock No.:
- 718-3206
- Mfr. Part No.:
- 202K142-25/86-0
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 718-3206
- Mfr. Part No.:
- 202K142-25/86-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Type | Straight | |
| Inside Diameter Primary | 31mm | |
| Inside Diameter Secondary | 31mm | |
| Adhesive Lined | Yes | |
| Material | Fluid Resistant Elastomer | |
| Number of Breakouts | 1 | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +105°C | |
| Shrunk Diameter Primary | 18mm | |
| Shrunk Diameter Secondary | 7.1mm | |
| Series | 202K1 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Type Straight | ||
Inside Diameter Primary 31mm | ||
Inside Diameter Secondary 31mm | ||
Adhesive Lined Yes | ||
Material Fluid Resistant Elastomer | ||
Number of Breakouts 1 | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +105°C | ||
Shrunk Diameter Primary 18mm | ||
Shrunk Diameter Secondary 7.1mm | ||
Series 202K1 | ||
- Moulded Boot Straight size 42
- Installation of /225 Coated Straight and 90° Moulded Parts using a Hot Air Gun.
- Installation of /225 Coated Straight and 90° Moulded Parts using a Hot Air Gun.
- Installation of /225 Coated Straight and 90° Moulded Parts using a Hot Air Gun.
- Installation of /225 Coated Straight and 90° Moulded Parts using a Hot Air Gun.
Ready Coated General Purpose (Lipped) - 202K1 and 222K1 Series
High performance pre-coated epoxy adhesive option on the 202K straight and 222K right angled boots (-25 Fluid resistant modified elastomer).
