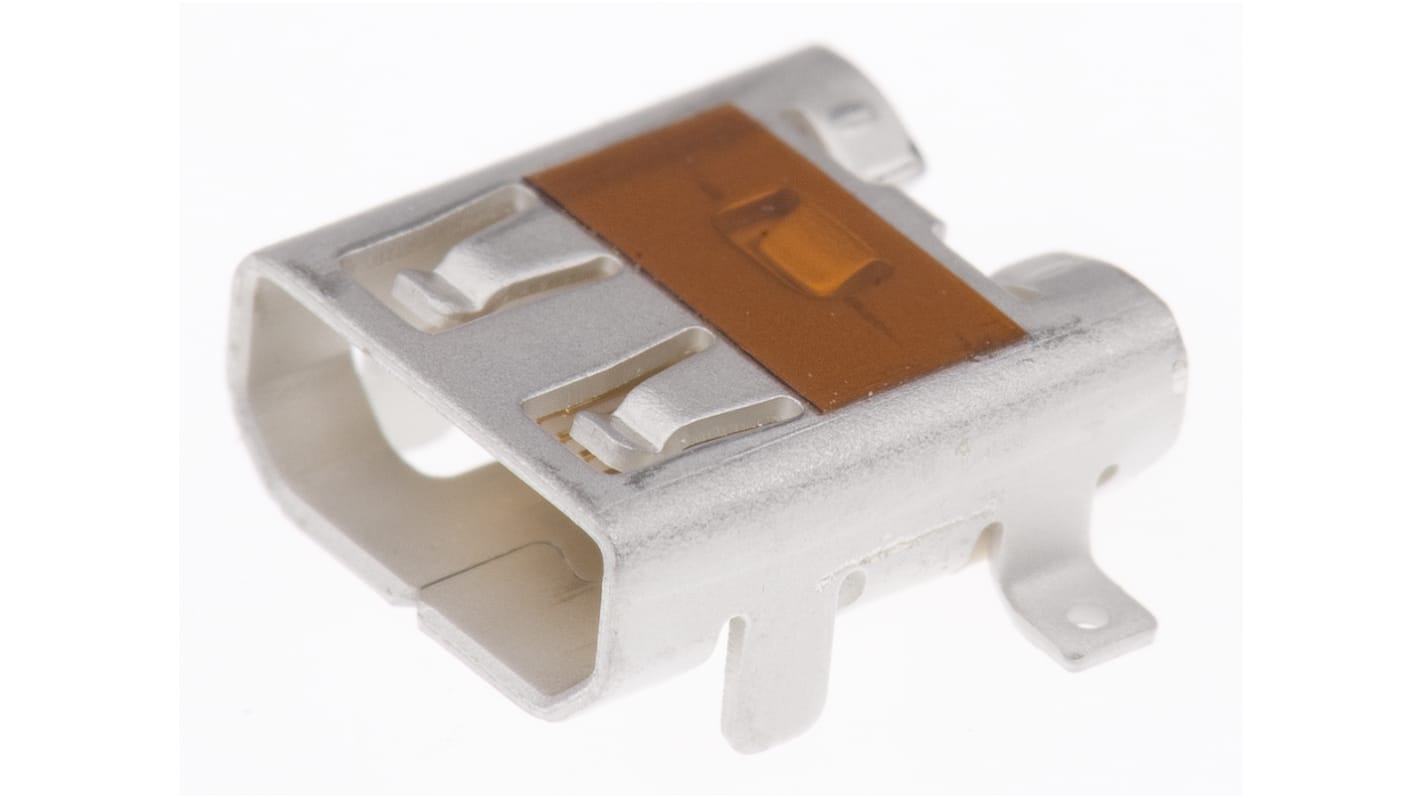

    Molex Type D 19 Way Female Right Angle HDMI Connector 30 V

    Molex
    RS Stock No.:
    727-6318
    Mfr. Part No.:
    46765-2001
    Brand:
    Molex
    View all HDMI Connectors
    30 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £14.07

    (exc. VAT)

    £16.88

    (inc. VAT)

    UnitsPer unit
    1 +£14.07
    Packaging Options:
    RS Stock No.:
    727-6318
    Mfr. Part No.:
    46765-2001
    Brand:
    Molex

    Legislation and Compliance


    Product Details

    HDMI Type D Micro Connectors


    These HDMI Type D Micro receptacles meet the requirements of the HDMI 1.4 Specification.

    Features include:
    0.40mm (.016″) pitch dual-row
    5,000 mating cycles
    Friction lock on receptacle shell
    Rear receptacle-shell-over-housing design
    Receptacle terminal hold-down feature

    Note

    Full SMT, through hole and hybrid shell options available, see stock numbers 727-6311 , 727-6314 and 727-6318 respectively.


    Molex HDMI Type D Micro Connectors


    The Molex HDMI Type D Micro connector meets all mechanical and electrical requirements of the HDMI 1.4 Specification and is only half the size of the current Type C (Mini) connector. These HDMI Type D Micro connectors offer significant space-saving and real estate advantages and is the industry’s only I/O solution that allows customers to surpass HD consumer demand. Despite its smaller size, the new HDMI Type D Micro connector delivers equivalent mechanical strength and electrical characteristics of its larger Type C predecessor.

    Specifications

    AttributeValue
    GenderFemale
    Number of Contacts19
    SizeType D
    Contact MaterialCopper Alloy
    Contact PlatingGold
    Body OrientationRight Angle
    Termination MethodSolder
    Current Rating800mA
    Voltage Rating30 V
    Housing MaterialThermoplastic
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-30°C
    SeriesHDMI
    Series Number7879
