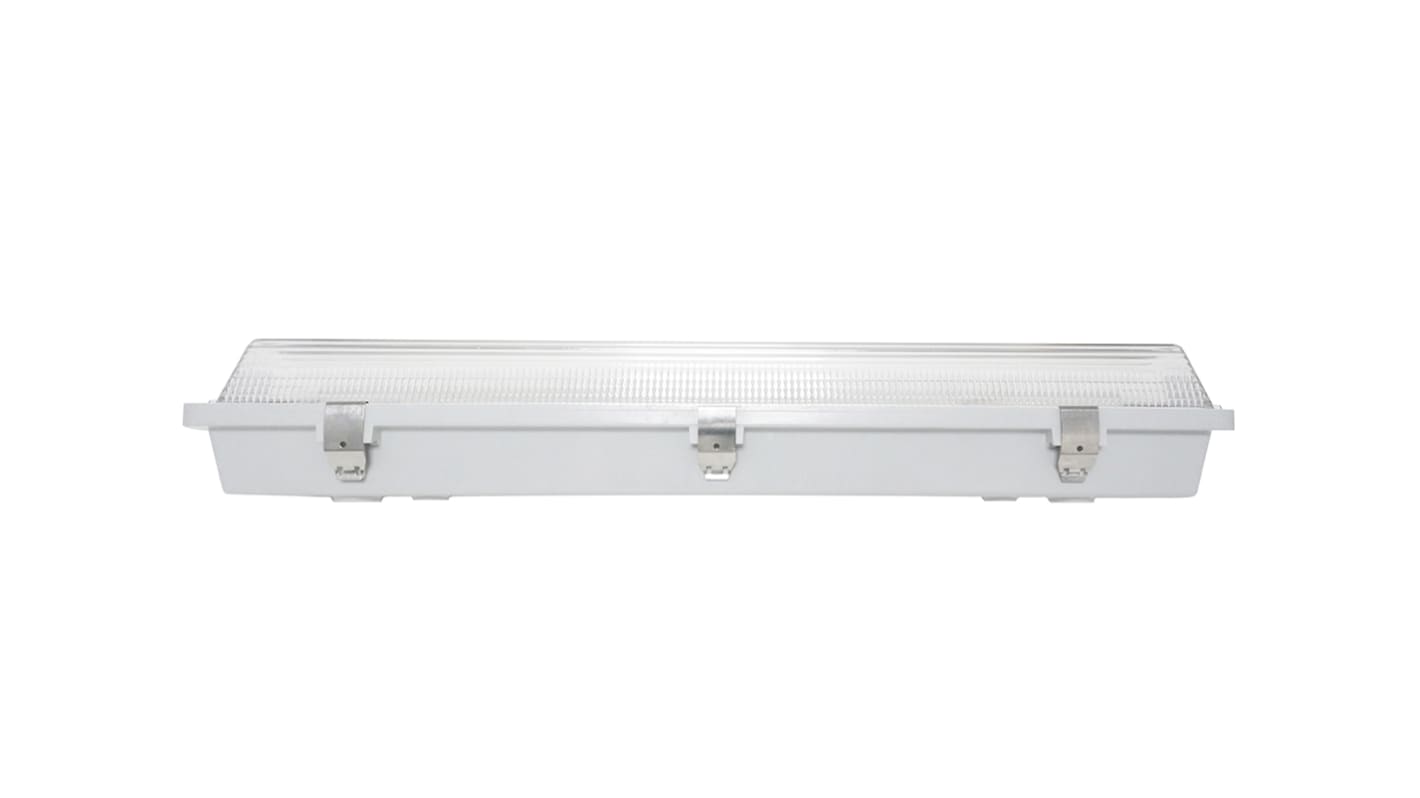

Petrel LED Snap-On LED Module Hazardous Area Light, Temp T4, 230V
- RS Stock No.:
- 175-0603
- Mfr. Part No.:
- XNLED147
- Brand:
- Petrel
Subtotal (1 unit)*
£691.10
(exc. VAT)
£829.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £691.10 |
*price indicative
- RS Stock No.:
- 175-0603
- Mfr. Part No.:
- XNLED147
- Brand:
- Petrel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Petrel | |
| Mount Type | Snap-On | |
| Product Type | Hazardous Area Light | |
| Temperature Classification | T4 | |
| Housing Material | Glass Reinforced Plastic, Polycarbonate | |
| Lamp Type | LED | |
| Sub Type | LED Module | |
| Voltage | 230V | |
| Anti-corrosive | Yes | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 51°C | |
| Length | 1.22m | |
| Depth | 108mm | |
| Number of Lamps | 1 | |
| Standards/Approvals | EN 60079-0-15-31, Ex tc IIIC T135°C Dc | |
| Width | 1.22m | |
| Hazardous Area Certification | NO | |
| Series | XN | |
| Select all | ||
|---|---|---|
Brand Petrel | ||
Mount Type Snap-On | ||
Product Type Hazardous Area Light | ||
Temperature Classification T4 | ||
Housing Material Glass Reinforced Plastic, Polycarbonate | ||
Lamp Type LED | ||
Sub Type LED Module | ||
Voltage 230V | ||
Anti-corrosive Yes | ||
IP Rating IP65 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 51°C | ||
Length 1.22m | ||
Depth 108mm | ||
Number of Lamps 1 | ||
Standards/Approvals EN 60079-0-15-31, Ex tc IIIC T135°C Dc | ||
Width 1.22m | ||
Hazardous Area Certification NO | ||
Series XN | ||
RoHS Status: Exempt
Petrel LED Hazardous Area Light Fitting
The Petrel LED hazardous area light fitting series lighting device. It is an ideal lighting device for the most challenging and harsh environments. It is available in different sizes from 2ft to 5ft. Use of LED technology has a number of advantages over the conventional lighting technology like decreased power consumption and thus cost savings on electricity bills, increased life expectancy and more. This LED is designated as ’unrestricted breathing' equipment, meaning no testing is required during routine maintenance inspections. Its highly advanced protection and tolerance features make it suitable for effectively dealing with the modern-day industrial challenges and requirements. The LED has a light output up to 10,000lm. It has a lifespan of about 50,000 hours.
Features and Benefits
• Low maintenance high efficiency LED light source.
• Energy efficient control.
• Corrosion resistant body
• Energy efficient control
• Captive diffuser for safe installation and maintenance
• Robust, long life enclosure
• Simple in design
• Easy access to its all parts
• Push fit gear tray for simple and fast installation
Applications
• Chemical Sites
• Refineries
• Pharmaceutical
• Paint Spray Shops
• Paper Mills
• Waste, Water and Metal Treatment Plants
Certifications
• II 3 GD Ex nA nC IIC T4 Gc
• Ex tc IIIC T135°C Dc
• IP 65 rated
