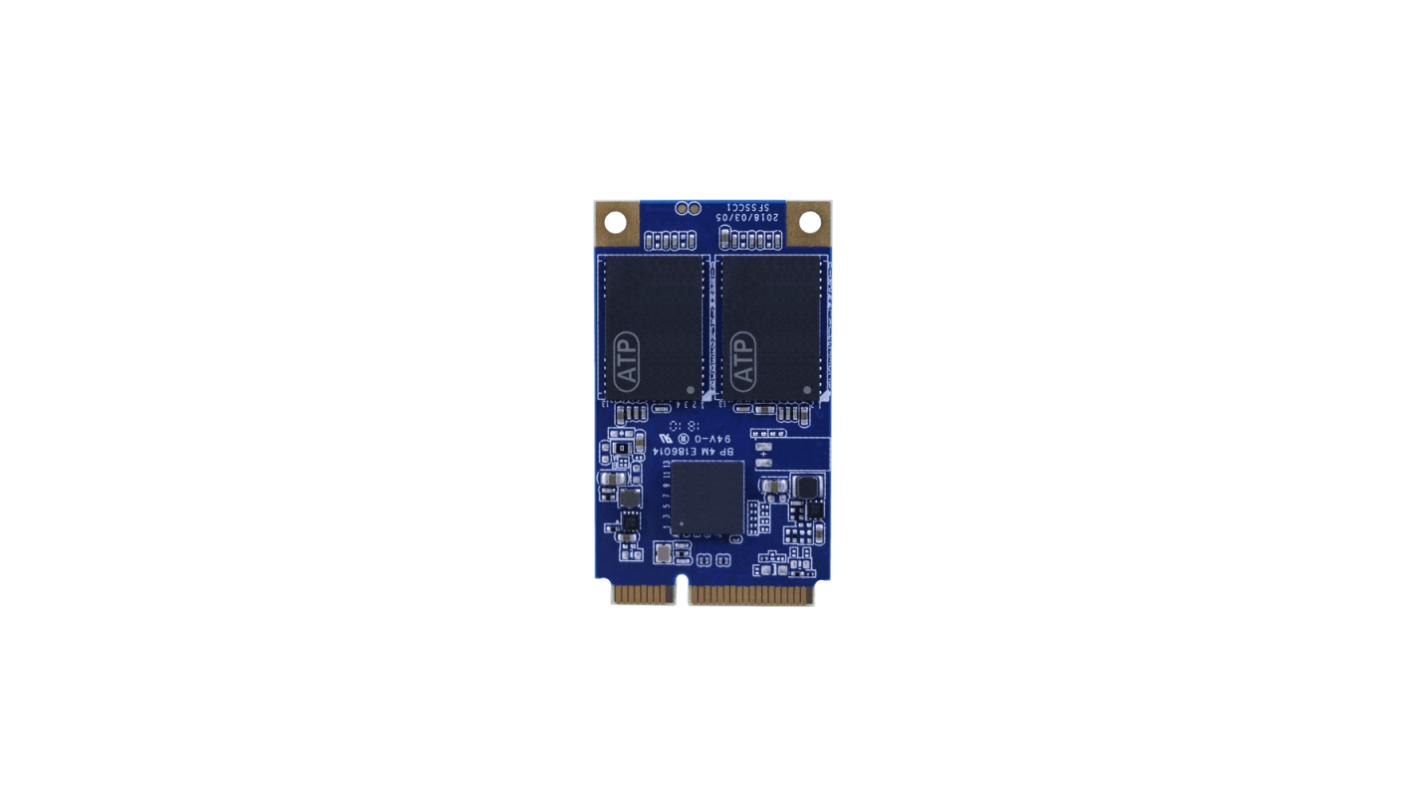

ATP A600Vc mSATA 32 GB Internal SSD
- RS Stock No.:
- 278-606
- Mfr. Part No.:
- AF32GSTHI-2BAXX
- Brand:
- ATP
Supply shortage
Due to a global supply shortage, we don't know when this will be back in stock.
- RS Stock No.:
- 278-606
- Mfr. Part No.:
- AF32GSTHI-2BAXX
- Brand:
- ATP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ATP | |
| Product Type | SSD | |
| Sub Type | Solid State Modules | |
| Model Number | A600Vc | |
| Memory Size | 32GB | |
| Internal/External | Internal | |
| Industrial Grade | Yes | |
| Form Factor | mSATA | |
| NAND Type | 3D TLC | |
| Encryption Level | 256 bit AES | |
| Interface Type | SATA III 6 Gb/S | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 3.5mm | |
| Width | 50.8mm | |
| Length | 29.85mm | |
| Standards/Approvals | RoHS, REACH, CE, BSMI, UKCA, FCC | |
| Select all | ||
|---|---|---|
Brand ATP | ||
Product Type SSD | ||
Sub Type Solid State Modules | ||
Model Number A600Vc | ||
Memory Size 32GB | ||
Internal/External Internal | ||
Industrial Grade Yes | ||
Form Factor mSATA | ||
NAND Type 3D TLC | ||
Encryption Level 256 bit AES | ||
Interface Type SATA III 6 Gb/S | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Height 3.5mm | ||
Width 50.8mm | ||
Length 29.85mm | ||
Standards/Approvals RoHS, REACH, CE, BSMI, UKCA, FCC | ||
- COO (Country of Origin):
- TW
The ATP Industrial Serial ATA (SATA) solid state modules provide higher performance and capacity while minimizing the overall module footprint, making them perfect choices for small systems installed in limited spaces. The SATA SSDs are packed with high densities and can withstand severe temperature shifts common in industrial environments, thanks to wide operating temperature ratings of -40°C to 85°C. It is a 32GB mSATA SSD
MCU based Power Loss Protection Design with Level 4 protection
LDPC and RAID Data Recovery
End to End Data Path Protection
TRIM and Global Wear Levelling support
