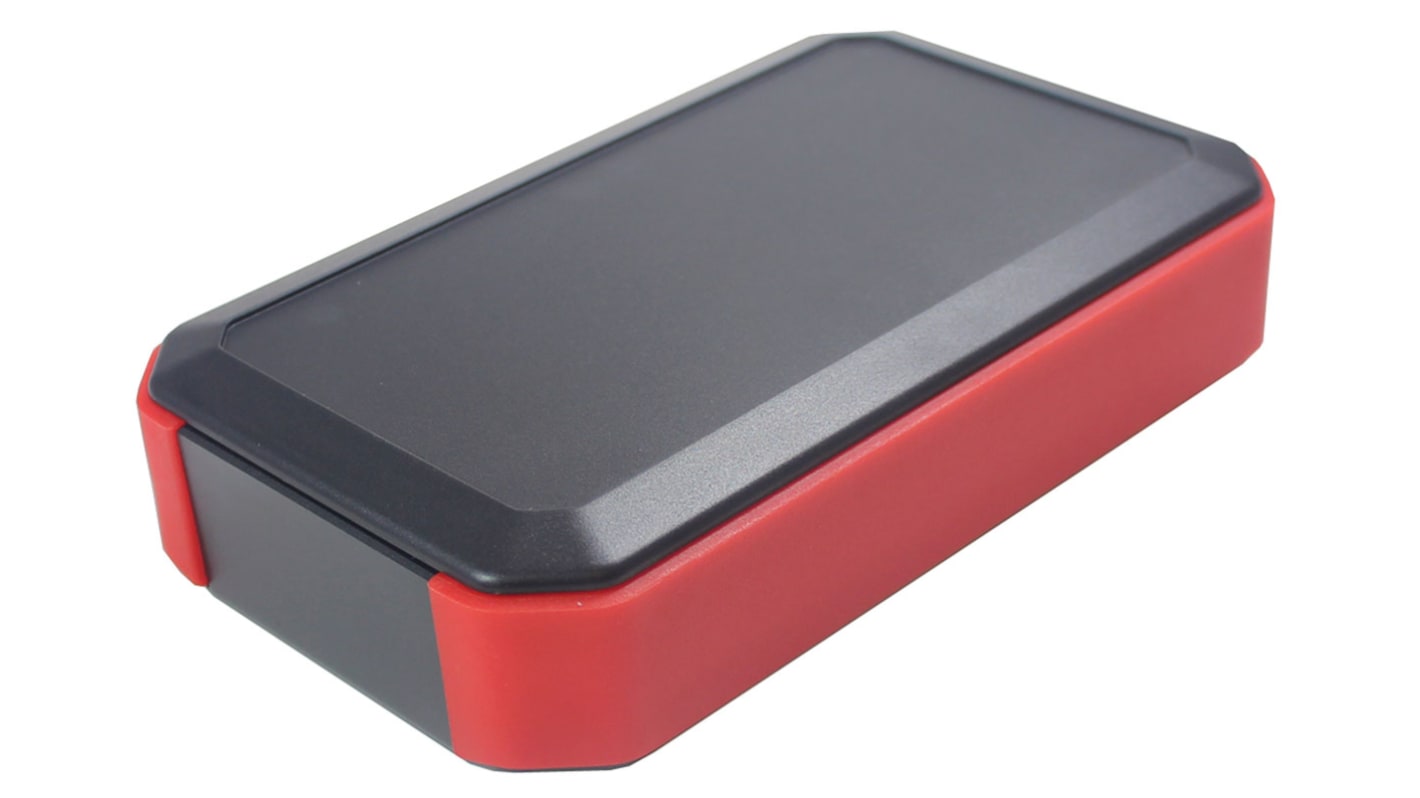

Takachi Electric Industrial, ABS, Handheld Enclosure With Integral Battery Compartment ,88 mm x 33 mm x 146 mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Takachi WH Handheld ABS Case

The WH series of waterproof hand held enclosures are available in either black or white, with a stylish chamfered edge. The IP67 waterproof protection makes them perfect for outdoor applications.

Features and Benefits

Manufactured from ABS UL94-V0
Available in 4 sizes
Rubber (TPE) sides provide a soft touch feel and extra protection
IP67 protection rating
Operating temperature -10°C to +60°C

Applications

The WH low profile cases are ideal for various hand held apparatuses, such as measuring instruments, inspection machine, transmitter, and medical equipment.

Supplied with

Lid, base, sides, gasket and fixing screws.

Specifications
Attribute Value
Body Material ABS
External Length 88 mm
External Width 146 mm
External Height 33 mm
External Dimensions 88 x 146 x 33mm
Integral Battery Compartment Yes
Colour Black, Red
Series WH
Standards Met UL 94 V-0
Special Features Flame Resistant
4 In stock for FREE next working day delivery
Price Each
£ 21.79
(exc. VAT)
£ 26.15
(inc. VAT)
Units
Per unit
1 - 1
£21.79
2 - 4
£21.24
5 +
£20.69
