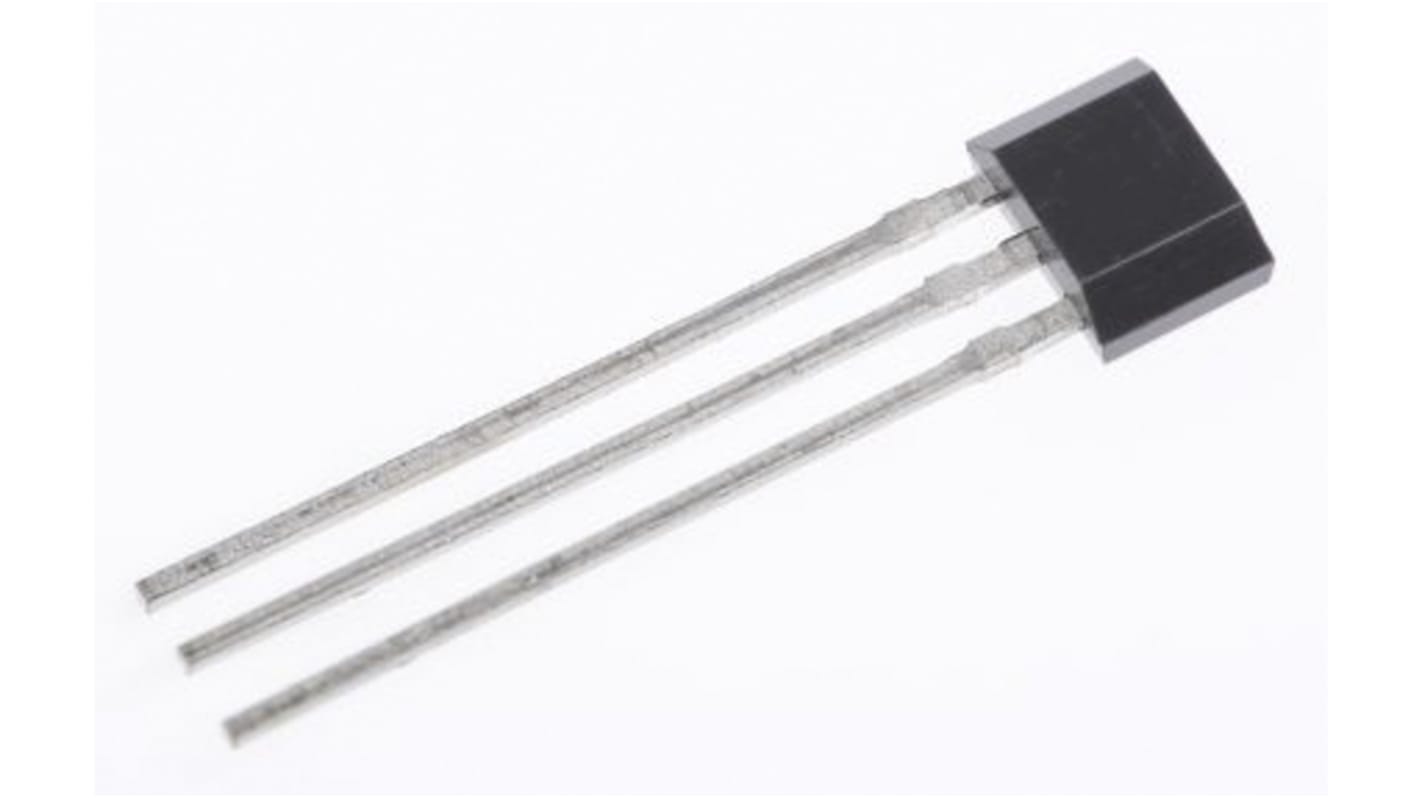

DiodesZetex Hall Effect Sensor 4 mA 60 mA Omnipolar Through Hole Open Drain Maintained, 105 °C, -40 °C, 28V dc, 3 V dc
- RS Stock No.:
- 246-7387
- Mfr. Part No.:
- AH3562Q-P-A
- Brand:
- DiodesZetex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£8.975
(exc. VAT)
£10.775
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- Final 1,800 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.359 | £8.98 |
| 50 - 75 | £0.352 | £8.80 |
| 100 - 475 | £0.224 | £5.60 |
| 500 - 1975 | £0.214 | £5.35 |
| 2000 + | £0.209 | £5.23 |
*price indicative
- RS Stock No.:
- 246-7387
- Mfr. Part No.:
- AH3562Q-P-A
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
The DiodesZetex makes a high-voltage, high-sensitivity Hall effect omnipolar switch IC designed for position and proximity sensing in automotive applications, such as in seat and seatbelt buckles, steering lock/immobilization, gear stick, transmission actuator and gear position, HVAC compression, wiper, door/trunk closure, and so on. To support a wide range of demanding applications, the design is optimized to operate over the supply range of 3.0V to 28V.
The device offers omnipolar operation It has high sensitivity BOP and BRP of ±20G and ±10G typical It has single open-drain output with overcurrent limit It has operating voltage range of 3.0 V to 28 V
