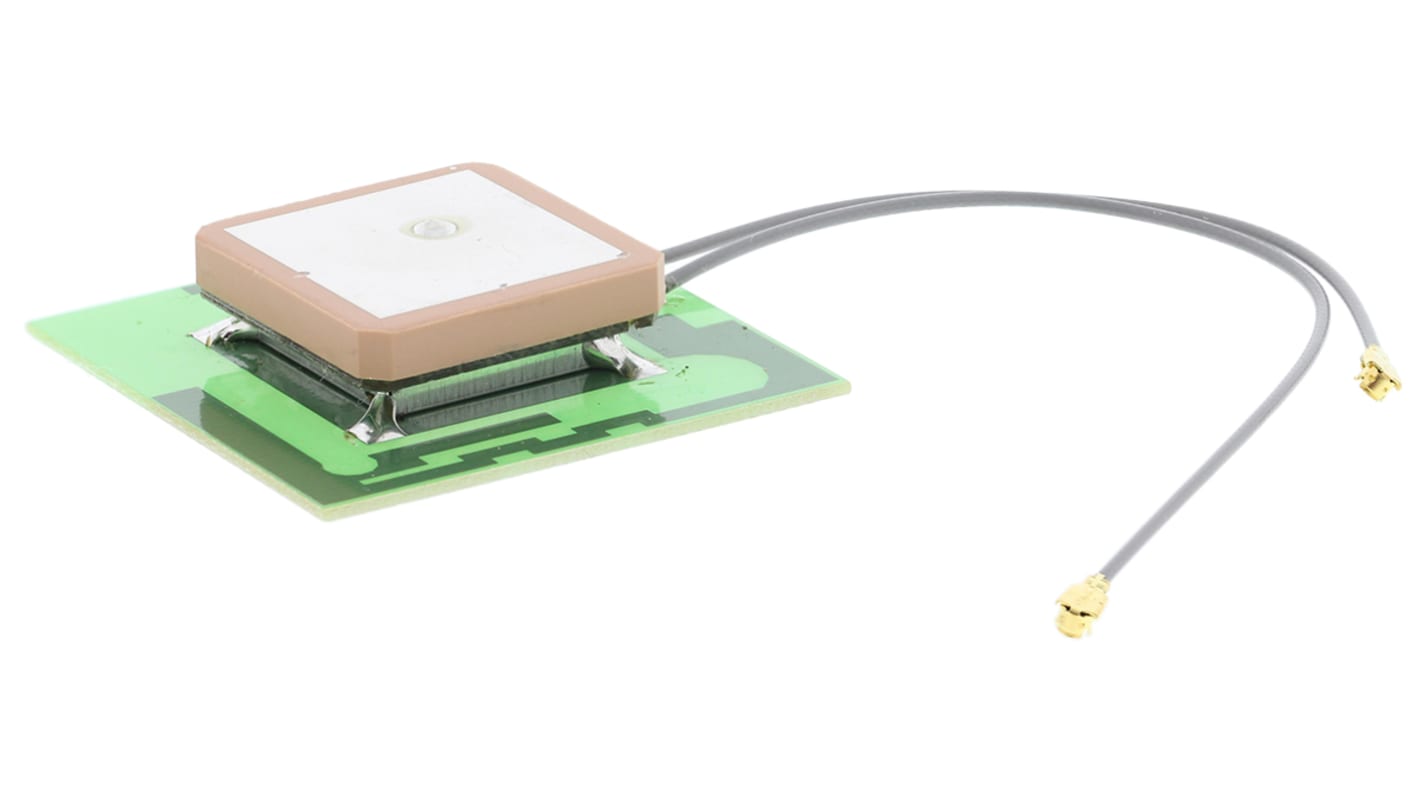

RF Solutions ANT-GSMGPSPCB PCB GPS Antenna, 2G (GSM/GPRS), GPS
- RS Stock No.:
- 704-3354
- Mfr. Part No.:
- ANT-GSMGPSPCB
- Brand:
- RF Solutions
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 704-3354
- Mfr. Part No.:
- ANT-GSMGPSPCB
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RF Solutions | |
| Antenna Physical Form | PCB | |
| Lead Length | 800mm | |
| Antenna Mounting Type | PCB | |
| RF Protocols | 2G (GSM/GPRS), GPS | |
| Gain | 28dBi | |
Select all | ||
|---|---|---|
Brand RF Solutions | ||
Antenna Physical Form PCB | ||
Lead Length 800mm | ||
Antenna Mounting Type PCB | ||
RF Protocols 2G (GSM/GPRS), GPS | ||
Gain 28dBi | ||
GSM/GPS Quad-Band Patch Antenna
Total GSM and GPS coverage anywhere in the world
Operating Temperature -35 to +95°C
Operating Temperature -35 to +95°C
GSM
Quad Band Antenna, 824-960 / 1710-1990MHz
Active gain: +2 to +3dBi
VSWR <2.5:1
Vertical Polarisation
iPex/UFL Connector
Active gain: +2 to +3dBi
VSWR <2.5:1
Vertical Polarisation
iPex/UFL Connector
GPS
1575.42MHz ±1MHz
Gain: 28dB typ.
Operates from 2.8 to 5.5V at 28mA
RHCP: Right Hand Circular
iPex/UFL Connector
Gain: 28dB typ.
Operates from 2.8 to 5.5V at 28mA
RHCP: Right Hand Circular
iPex/UFL Connector
Multi-Band Antennas, RF Solutions
