STMicroelectronics TESEO-VIC3DA GPS Module -156 dBm
- RS Stock No.:
- 234-8907
- Mfr. Part No.:
- TESEO-VIC3DA
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£16.02
(exc. VAT)
£19.22
(inc. VAT)
Add 4 units to get free delivery
In Stock
- 576 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £16.02 |
| 10 - 39 | £15.70 |
| 40 - 79 | £15.40 |
| 80 - 99 | £15.06 |
| 100 + | £14.77 |
*price indicative
- RS Stock No.:
- 234-8907
- Mfr. Part No.:
- TESEO-VIC3DA
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | GPS Module | |
| Acquisition Sensitivity | -156dBm | |
| Tracking Sensitivity | -163dBm | |
| Height | 2.42mm | |
| Interface Type | I2C, UART | |
| Length | 16mm | |
| Minimum Supply Voltage | 2.97V | |
| Maximum Supply Voltage | 3.63V | |
| Time to First Fix - Cold Start | 32s | |
| Protocol | NMEA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | TESEO-VIC3DA | |
| Standards/Approvals | No | |
| Width | 11.95 mm | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type GPS Module | ||
Acquisition Sensitivity -156dBm | ||
Tracking Sensitivity -163dBm | ||
Height 2.42mm | ||
Interface Type I2C, UART | ||
Length 16mm | ||
Minimum Supply Voltage 2.97V | ||
Maximum Supply Voltage 3.63V | ||
Time to First Fix - Cold Start 32s | ||
Protocol NMEA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series TESEO-VIC3DA | ||
Standards/Approvals No | ||
Width 11.95 mm | ||

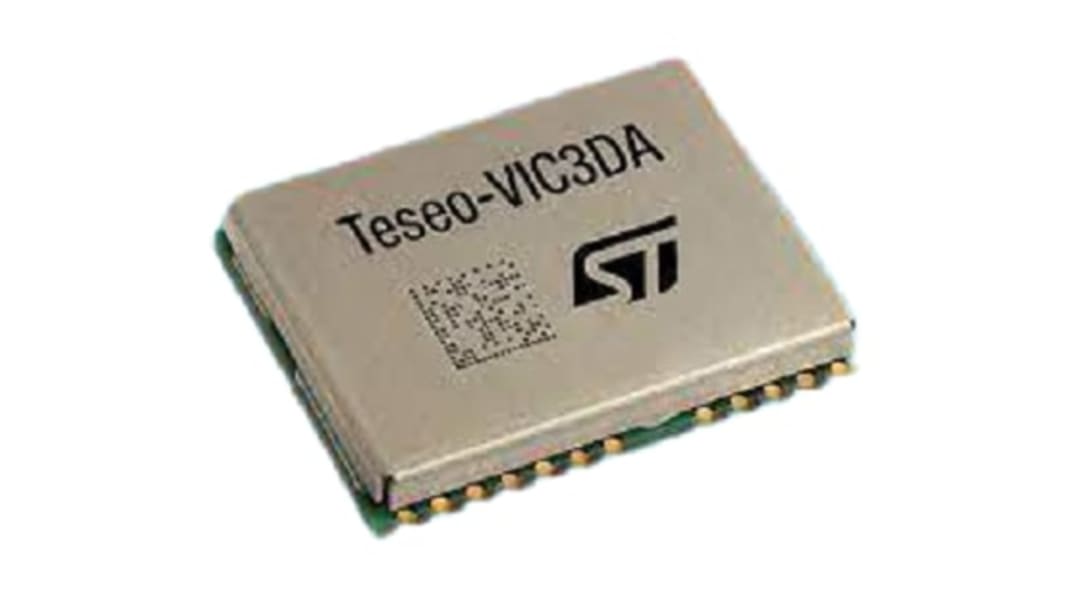

The STMicroelectronics Teseo-VIC3DA module is an easy to use dead-reckoning Global Navigation Satellite System (GNSS) standalone module, embedding TeseoIII single die standalone positioning receiver IC working simultaneously on multiple constellations.
AEC-Q100 qualification on going
Simultaneous multiconstellation
Teseo dead-reckoning Automotive way firmware
-163 dBm sensitivity tracking
