Hammond 1550 Series Natural Natural Lid Die Cast Aluminium Enclosure, IP66, IK08 51 mm, 115 mm, 64 mm
- RS Stock No.:
- 868-1026
- Distrelec Article No.:
- 150-02-668
- Mfr. Part No.:
- 1550WD
- Brand:
- Hammond
Subtotal (1 unit)*
£9.71
(exc. VAT)
£11.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.71 |
*price indicative
- RS Stock No.:
- 868-1026
- Distrelec Article No.:
- 150-02-668
- Mfr. Part No.:
- 1550WD
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 51mm | |
| External Length | 115mm | |
| External Width | 64mm | |
| IP Rating | IP66 | |
| Lid Colour | Natural | |
| Colour | Natural | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Shielding | Shielded | |
| Series | 1550 | |
| Weight | 160g | |
| Standards/Approvals | RoHS | |
| IK Rating | IK08 | |
| Transparent Door | No | |
| Explosion Proof | No | |
| Gasket Material | EVA Foam | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 51mm | ||
External Length 115mm | ||
External Width 64mm | ||
IP Rating IP66 | ||
Lid Colour Natural | ||
Colour Natural | ||
Flanged No | ||
Hazardous Area Certification No | ||
Shielding Shielded | ||
Series 1550 | ||
Weight 160g | ||
Standards/Approvals RoHS | ||
IK Rating IK08 | ||
Transparent Door No | ||
Explosion Proof No | ||
Gasket Material EVA Foam | ||
- COO (Country of Origin):
- TW

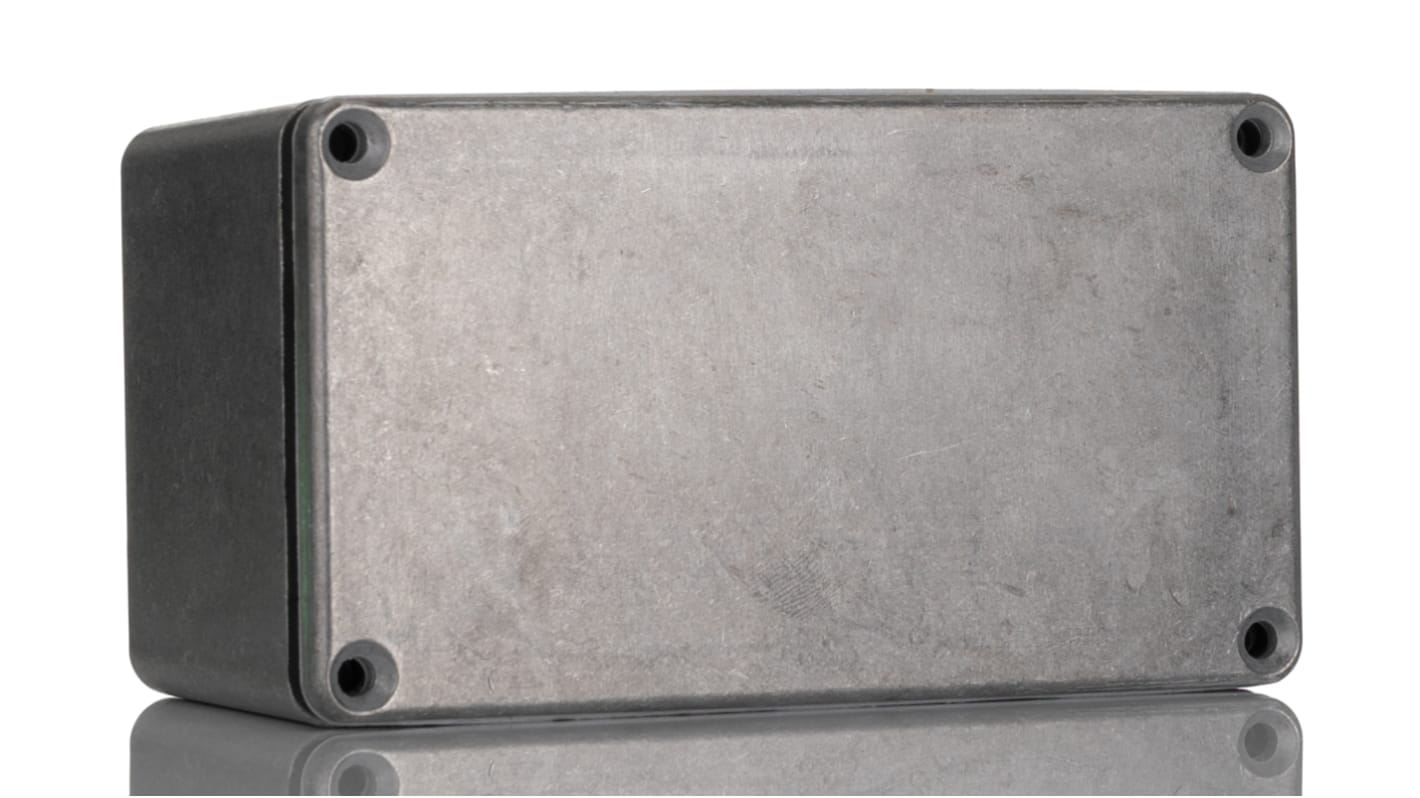

Hammond Enclosure 115 (L) x 64 (W) x 51mm (H), Includes EVA Foam Gasket, Vibra Finished - 1550 Series - 1550WD
Give your circuit board durable protection using this enclosure from Hammond. It's just what you need to safeguard delicate connections against airborne contaminants, giving you the benefit of superior reliability and an extended service life. To minimise the risk of sharp edges snagging other components, the unit features a smooth vibra finish. As this enclosure is supplied with a lid and screws, you've got everything you need to securely close it. Internal posts and factory-tapped holes mean there's no risk of wiring getting tangled when you're screwing the lid shut.
Features & Benefits
• IP66-rated enclosure is dust-tight and protected against high-pressure water jets
• Easy to mount PCBs, thanks to its low side wall draft angle of 2° or less
• No internal ribs for convenient connector installation without extra milling
Applications
• Food and beverage industries
• Industrial engineering
• Laboratory and research facilities
• Aerospace technology
What material is the enclosure made from?
It's constructed out of a rugged die-cast aluminium alloy that resists impact and wear for compatibility with harsh environments. As this metal is also easy to machine, it's a cinch to customise your enclosure.
