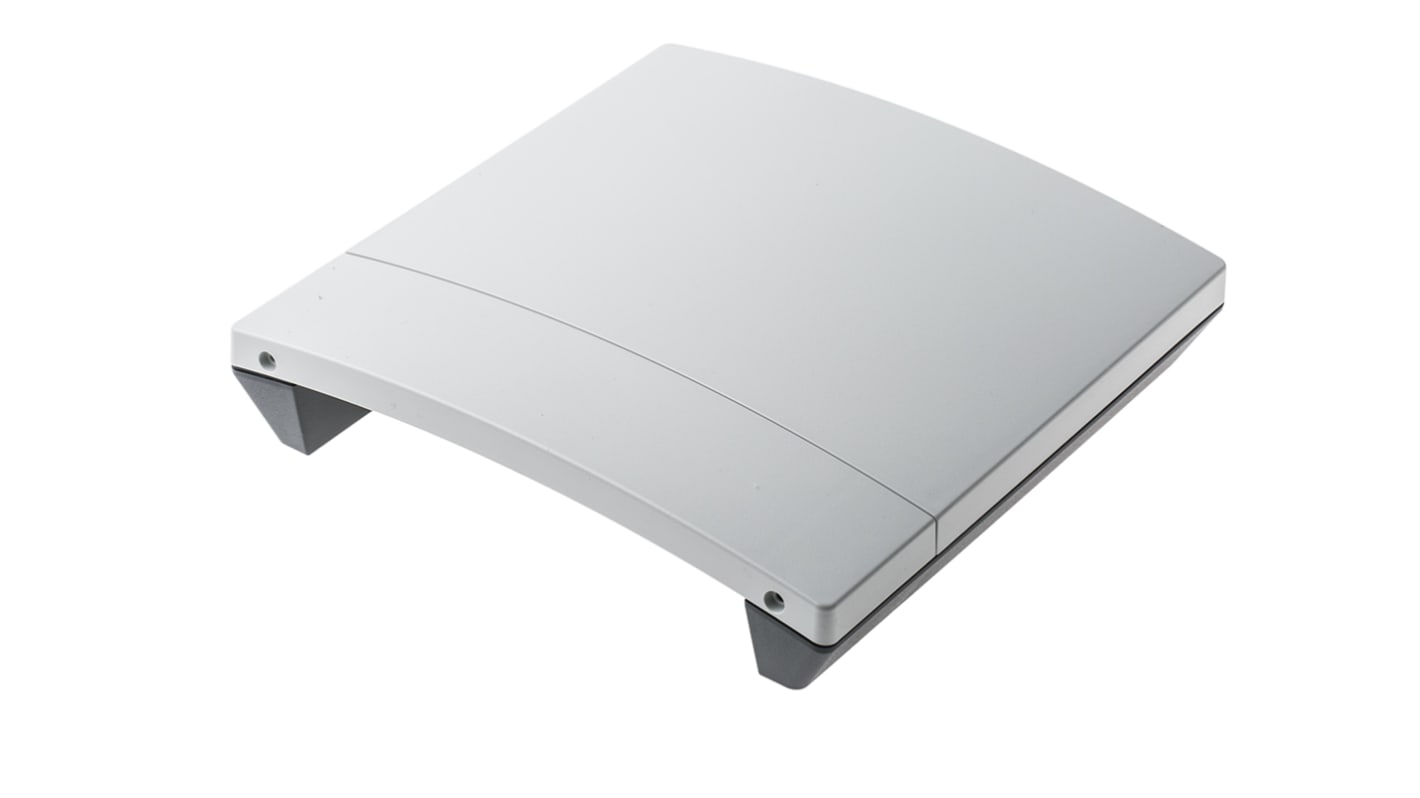

OKW NET-BOX Series Grey Polycarbonate Enclosure, IP65 50.5 mm, 220 mm, 220 mm
- RS Stock No.:
- 819-4015
- Mfr. Part No.:
- B3222101 + B3322151
- Brand:
- OKW
Subtotal (1 unit)*
£78.67
(exc. VAT)
£94.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.67 |
*price indicative
- RS Stock No.:
- 819-4015
- Mfr. Part No.:
- B3222101 + B3322151
- Brand:
- OKW
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OKW | |
| Product Type | Enclosure | |
| Body Material | Polycarbonate | |
| External Height | 50.5mm | |
| External Width | 220mm | |
| External Length | 220mm | |
| IP Rating | IP65 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Hazardous Area Certification | No | |
| Shielding | No | |
| Series | NET-BOX | |
| Standards/Approvals | RoHS Compliant | |
| Select all | ||
|---|---|---|
Brand OKW | ||
Product Type Enclosure | ||
Body Material Polycarbonate | ||
External Height 50.5mm | ||
External Width 220mm | ||
External Length 220mm | ||
IP Rating IP65 | ||
Lid Colour Grey | ||
Colour Grey | ||
Hazardous Area Certification No | ||
Shielding No | ||
Series NET-BOX | ||
Standards/Approvals RoHS Compliant | ||
NET-BOX Wall Mounted Enclosure
The OKW NET-BOX is a sleek new range of wall mounted enclosures for data and control electronics. These advanced contoured enclosures consist of a base section, front cover and lid. They are assembled using Torx T10 security screws. A unique feature of these ABS enclosures is the inset connector mounting face. This allows unsightly connections and cables to be hidden under the front lid of the enclosure for a professional installation.
It is ideal for central control units, data acquisition systems, data systems engineering, measuring and control technology, supervision terminals and access control, medical and wellness technology.
Stylish curved top section which can be fitted with LEDs, displays and switches
Inset panel on the underside provides discreet mounting for connections (RJ45, RS232, HDMI, USB, power inlets, etc)
Connectors and cables are hidden under the front lid
Simple 3 part assembly - bottom part, front cover and front lid
No visible fixing screws on the front, just two on the underside of the lid
Screw pillars in the bottom part for mounting PCBs and assemblies
3 point wall mounting system, the main electronics section stays closed, only the front lid has to be refitted after installation
Moulded in flame retardant material and can be sealed to IP65 for outdoor applications
Top cover and lid are light grey, RAL 7035
Supplied with
anti-tamper Torx T10 assembly screws and IP65 sealing kit.
