Hammond 1455 Series Black Aluminium Enclosure, IP54 27 mm, 160 mm, 78 mm

RS Stock No.:: 773-2965
Mfr. Part No.:: 1455J1601BK
Brand:: Hammond

Hammond 1455 Series Black Aluminium Enclosure, IP54 27 mm, 160 mm, 78 mm

Subtotal (1 unit)*

£16.62

(exc. VAT)

£19.94

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

11 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£16.62

*price indicative

RS Stock No.:: 773-2965
Mfr. Part No.:: 1455J1601BK
Brand:: Hammond

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Hammond
	Body Material	Aluminium
	Product Type	Enclosure
	External Height	27mm
	External Width	78mm
	External Length	160mm
	IP Rating	IP54
	Colour	Black
	Lid Colour	Black
	Flanged	No
	Shielding	No
	Hazardous Area Certification	No
	Series	1455
	Internal Mount Type	PCB
	Weight	190g
	Standards/Approvals	RoHS
	Explosion Proof	No

	Select all
	Brand Hammond
	Body Material Aluminium
	Product Type Enclosure
	External Height 27mm
	External Width 78mm
	External Length 160mm
	IP Rating IP54
	Colour Black
	Lid Colour Black
	Flanged No
	Shielding No
	Hazardous Area Certification No
	Series 1455
	Internal Mount Type PCB
	Weight 190g
	Standards/Approvals RoHS
	Explosion Proof No

COO (Country of Origin):: CA

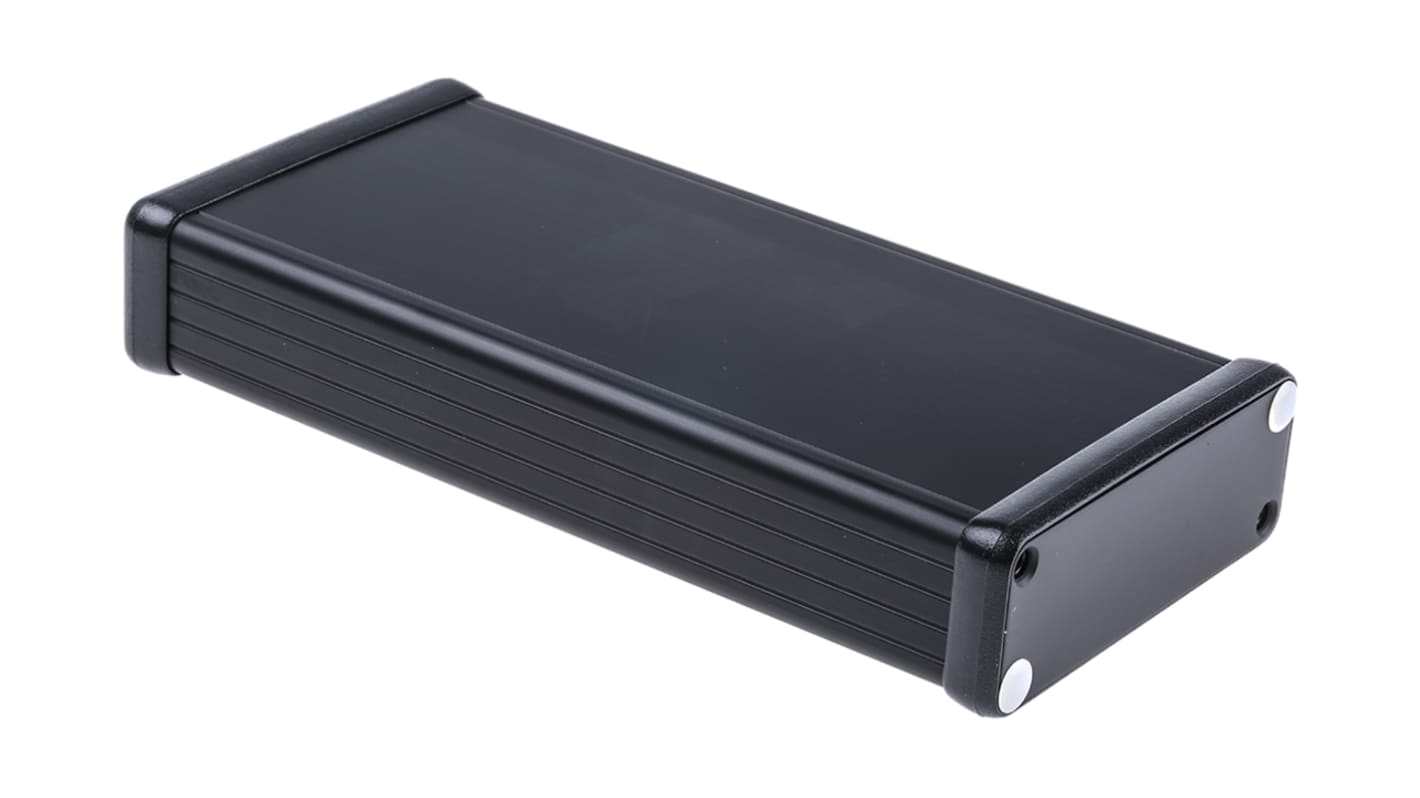

Hammond 1455 Enclosure with Metal End Panels

The Hammond 1455 series enclosure has an extruded aluminium body and two metal end panels with integral bezel. These enclosures are designed to house P.C. boards or for equipment interfacing.

Features and Benefits

• Designed to house P.C. boards or for equipment interfacing

• Sized for standard Eurocards

• PCBs mount horizontally by sliding into internal slots extruded into the enclosure body

• Enclosure includes two metal end panels with integral bezel

• Rugged body constructed from extruded aluminium with a minimum thickness of 1.5 mm

• Extruded body includes a slide removable belly plate, except in smaller sizes (A, B, C & D)

• Smaller sizes (A & B) are rounded for better hand held ergonomics

• DIN Rail clips & flange kits are available separately

FAQ:

Can these enclosures be used outdoor?

These enclosures are not suitable to be used outdoor as they do not feature any seal. Enclosures are not IP rated and cannot guarantee any waterproof or dustproof resistance. These metal enclosures are designed to be used in an indoor environment only.

What is supplied?

• 2 aluminium end panels;• 2 black ABS bezels;• extruded aluminium body;• 4 self-adhesive rubber feet;• end panel screws
