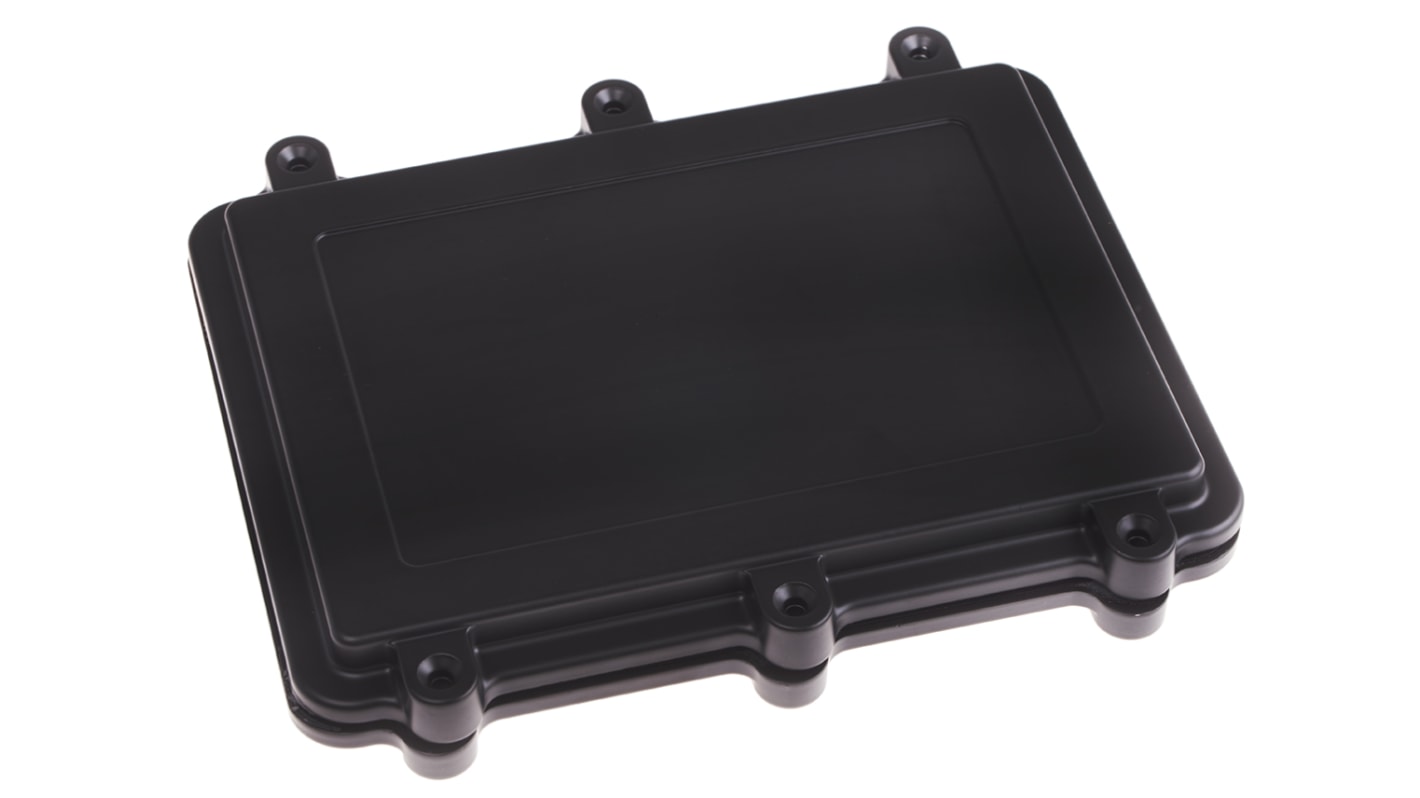

RS PRO Black Die Cast Aluminium Enclosure, IP67, Flanged, Black Lid, 200 x 150 x 28mm

RS Stock No.:: 771-7639
Brand:: RS PRO

RS PRO Black Die Cast Aluminium Enclosure, IP67, Flanged, Black Lid, 200 x 150 x 28mm

Subtotal (1 unit)*

£38.25

(exc. VAT)

£45.90

(inc. VAT)

FREE delivery for orders over £50.00

Being discontinued

Final 22 unit(s), ready to ship

Units	Per unit
1 +	£38.25

*price indicative

RS Stock No.:: 771-7639
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Body Material	Die Cast Aluminium
	External Length	200 mm
	External Height	28 mm
	External Width	150 mm
	External Dimensions	200 x 150 x 28mm
	IP Rating	IP67
	Colour	Black
	Lid Colour	Black
	Flanged	Yes
	Shielded	Yes
	RAL Code	RAL 9011
	Gasket Material	Silicone

	Select all
	Brand RS PRO
	Body Material Die Cast Aluminium
	External Length 200 mm
	External Height 28 mm
	External Width 150 mm
	External Dimensions 200 x 150 x 28mm
	IP Rating IP67
	Colour Black
	Lid Colour Black
	Flanged Yes
	Shielded Yes
	RAL Code RAL 9011
	Gasket Material Silicone

RS PRO Aluminium Shielded Enclosure Boxes, Black IP67

Introducing the shielded aluminium enclosures from RS PRO, a range of moulded diecast aluminium enclosures with screening seal to protect against electromagnetic and radio interference. These durable enclosures offer excellent protection of internal electrical and non-electrical components and can be used in a variety of environments. This high standard enclosure features a silicone gasket offering IP67 protection and a conductive gasket for EMI shielding. The holes for mounting the enclosure and fastening the lid are located outside the inner section for added reliability.

Features and Benefits

• Wall mounting holes and fixing screws are outside the sealing area for true seal protection
• M4 countersunk stainless screws are included to secure the cover and the body
• Supplied with a continuous silicone gasket to meet IP67 rating and a conductive gasket for EMI shielding
• External surfaces have a powder coated black painted finish
• Suitable for a wide range of applications

Applications

Aluminium enclosures are ideal for use as a general purpose enclosure, due to their lightweight yet durable design. aluminium enclosures are also great for RF projects or projects which are subject to weather. Due to the construction of the enclosures, they can also be used for projects involving heat as the cases make an excellent heat sink. Die cast aluminium enclosures are used in a wide range of applications such as:

• Electrical
• Music industry (pedals and foot switches)
• Button switching elements
• Telecommunication
• Network Junction boxes
• Mechanical and automation

What is the IP rating?

IP rating is known as – Ingress Protection or International Protection Rating Ratings are defined to the International Standard EN 60529 (British BS EN 60529:1992, European IEC 60529:1989)
The standards are used to define the level of sealing effectiveness of electrical enclosures. Standard denotes the protection against foreign bodies like dirt and water.

This enclosure features an ingress protection rating of IP67, ensuring the enclosure is completely protected from ingress of dust and water if the enclosure is submerged in water of up to 1m.

Can this enclosure be used outside?

This enclosure can be used indoors and outdoors, with an IP67 rating protecting internal components from dust and water.
