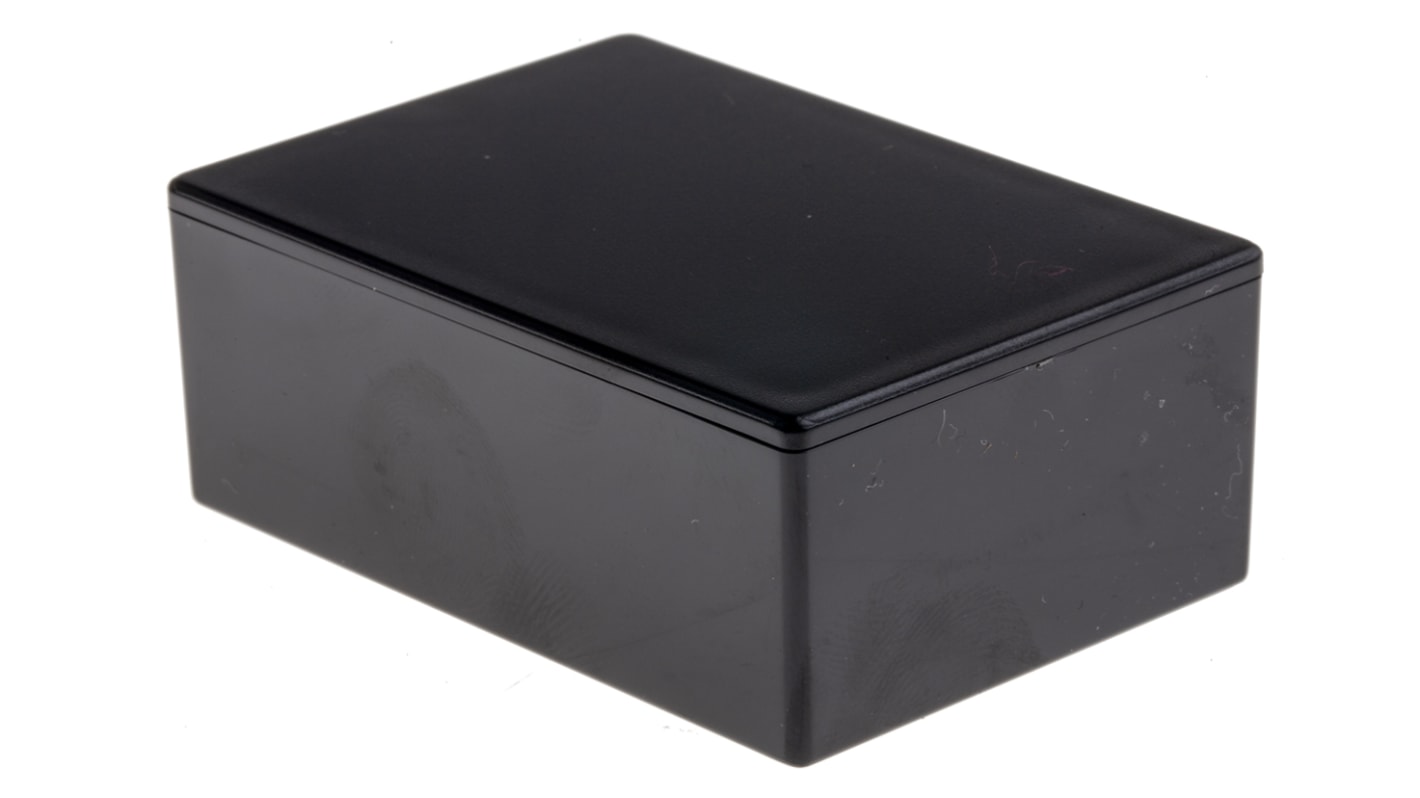

Takachi Electric Industrial SW Series Black ABS Enclosure, Black Lid, 65 x 45 x 25mm
- RS Stock No.:
- 500-4798
- Mfr. Part No.:
- SW-65B
- Brand:
- Takachi Electric Industrial
257 In stock - FREE next working day delivery available
371 available from Europe for delivery within 5 working day(s).
Added
Price Each
£1.13
(exc. VAT)
£1.36
(inc. VAT)
| Units | Per unit |
| 1 - 14 | £1.13 |
| 15 - 24 | £1.10 |
| 25 + | £1.06 |
- RS Stock No.:
- 500-4798
- Mfr. Part No.:
- SW-65B
- Brand:
- Takachi Electric Industrial
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Compact Plastic Case SW Series
General purpose One-touch open and close type compact case
The upper surface has a soft etched finish
The upper surface has a soft etched finish
SW-65B Model
SW-65 Series is a simple easy to use ABS plastic enclosure box. The enclosure is for general purpose use with an IP40 protection rating. The lid is an easy to use snap on, snap off, no screws or extra fittings required to keep the enclosures contents safe and secure. Various sizes are available to match specific requirements and this case is black and also available in light grey.
Features and Benefits:
General Purpose Compact Case/Enclosure Box
Protection Class IP40
Base ABS UL94V-1
Cover ABS UL94HB
No screws required – simple snap on/off lid
Ample interior space
Not shielded
Not Flame resistant
Colours available Black or Light Grey
Various sizes available
Compact and easy to use
Operating Temperature Range:
-10°C to +60°C
What Is IP40?
IP rating is known as – Ingress Protection or International Protection Rating.
Ratings are defined to the International Standard EN 60529 (British BS EN 60529:1992, European IEC 60529:1989).
The standards are used to define the level of sealing effectiveness of electrical enclosures.
Standard denotes the protection against foreign bodies like dirt and water.
The rating consists of the letters IP followed then by 2 digits/numbers (IP 40).
The first number stands for the level of protection provided against solid bodies.
The second number describes the degree of protection for the equipment within the enclosure from water.
Example IP40 = First number (4) protection from solid objects over 1 mm e.g. wires.
Example IP40 = Second number (0) No fluid protection - Not waterproof
What Is ABS?
ABS is a thermoplastic material made up from a 2 phase polymer blend.
As it is moulded this means the base and the lid have no seams.
ABS has strong resistance to chemicals and physical impacts.
Very easy to machine
Low melting point
Easily recyclable
Specifications
Attribute | Value |
|---|---|
| Body Material | ABS |
| External Length | 65 mm |
| External Height | 25 mm |
| External Width | 45 mm |
| External Dimensions | 65 x 45 x 25mm |
| Colour | Black |
| Lid Colour | Black |
| Shielded | No |
| Series | SW |
