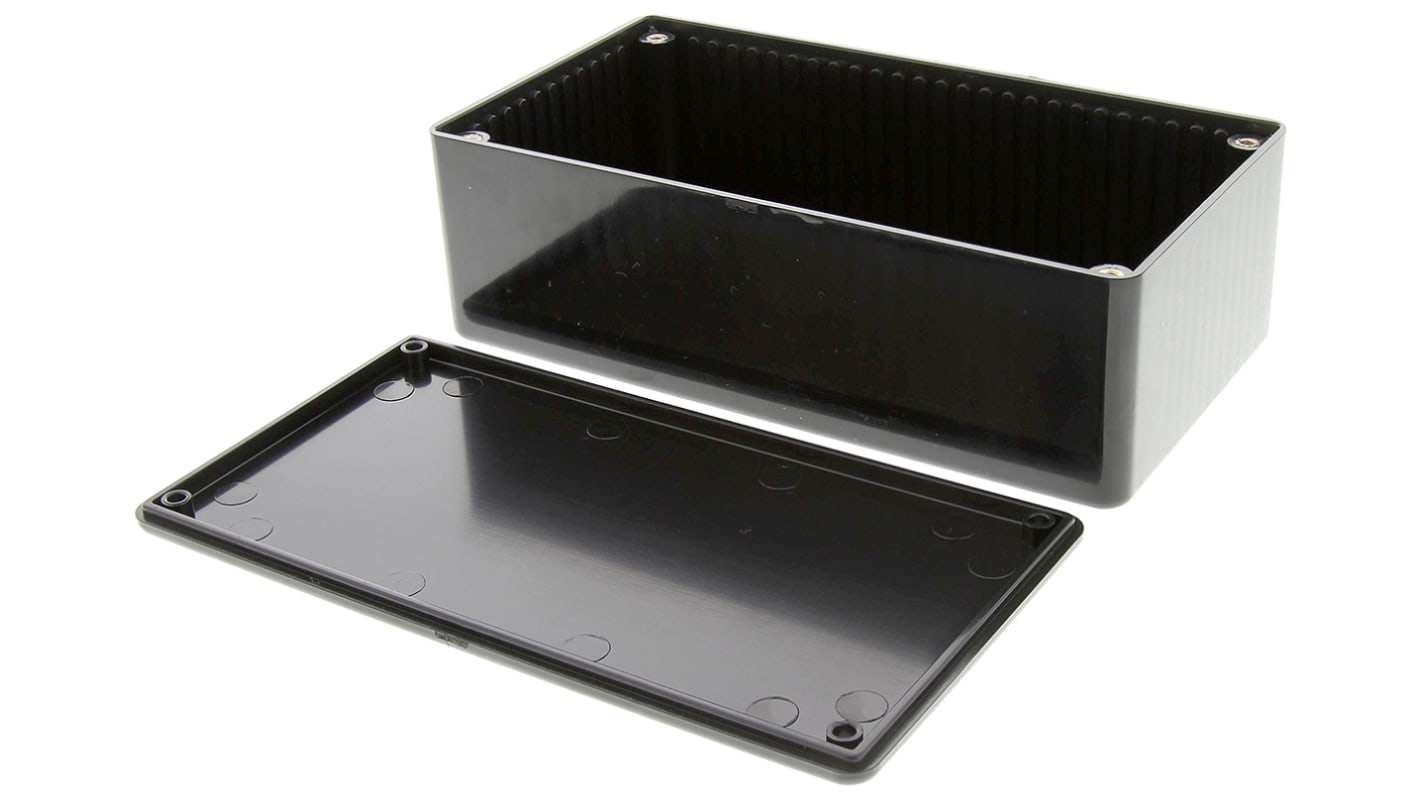

Hammond 1591 Series Black Flame Retardant ABS Enclosure, IP54, Black Lid, 150 x 80 x 50mm
- RS Stock No.:
- 493-6054
- Distrelec Article No.:
- 150-19-443
- Mfr. Part No.:
- 1591DBK
- Brand:
- Hammond
Subtotal (1 unit)*
£8.05
(exc. VAT)
£9.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 86 unit(s) ready to ship
- Plus 111 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.05 |
*price indicative
- RS Stock No.:
- 493-6054
- Distrelec Article No.:
- 150-19-443
- Mfr. Part No.:
- 1591DBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Flame Retardant ABS | |
| External Length | 150 mm | |
| External Height | 50 mm | |
| External Width | 80 mm | |
| External Dimensions | 150 x 80 x 50mm | |
| IP Rating | IP54 | |
| Range | 1591 | |
| Colour | Black | |
| Lid Colour | Black | |
| Flanged | No | |
| Shielded | No | |
| Series | 1591 | |
| Number Of Knockouts | 0 | |
| Weight | 131g | |
| Transparent Door | No | |
| RAL Code | RAL 9006 | |
| Explosion Proof | No | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Flame Retardant ABS | ||
External Length 150 mm | ||
External Height 50 mm | ||
External Width 80 mm | ||
External Dimensions 150 x 80 x 50mm | ||
IP Rating IP54 | ||
Range 1591 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged No | ||
Shielded No | ||
Series 1591 | ||
Number Of Knockouts 0 | ||
Weight 131g | ||
Transparent Door No | ||
RAL Code RAL 9006 | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA
Hammond Enclosure, 150 (L) x 80 (W) x 50mm (H), ABS Construction, Black - 1591 Series - 1591DBK
For long-lasting protection for your PCBs, count on this enclosure from Hammond. It's smooth on the inside to make slotting boards into the grooves plain sailing. The sturdy lap-joint construction withstands vibration and rough treatment while preventing contaminants from creeping inside. As the lid is held tightly shut with M3 machine screws that slot into plastic tapped holes, installation is easy and you can quickly open it again for PCB maintenance tasks.
Features & Benefits
• Light 131g weight doesn't add excess load to your system
• Handy slots accommodate standard 1.5mm PC cards
• IP54 rating means it's resistant to dust and low-pressure water sprays from every direction
• Handy slots accommodate standard 1.5mm PC cards
• IP54 rating means it's resistant to dust and low-pressure water sprays from every direction
Applications
• Medical equipment
• Industrial automation
• Automotive manufacturing
• Industrial automation
• Automotive manufacturing
What are the benefits of this unit's ABS plastic construction?
ABS housing is used because of its excellent resistance to high temperatures, corrosion and abrasion, as well as to mechanical stress and impacts. It means you can install this unit in challenging settings without worrying about loss of performance.
Are screws supplied with this product?
Yes. This assembly's supplied with 4 x 10mm screws to aid fast installation.
Approvals
Material Flamability Rating: UL94-V0
