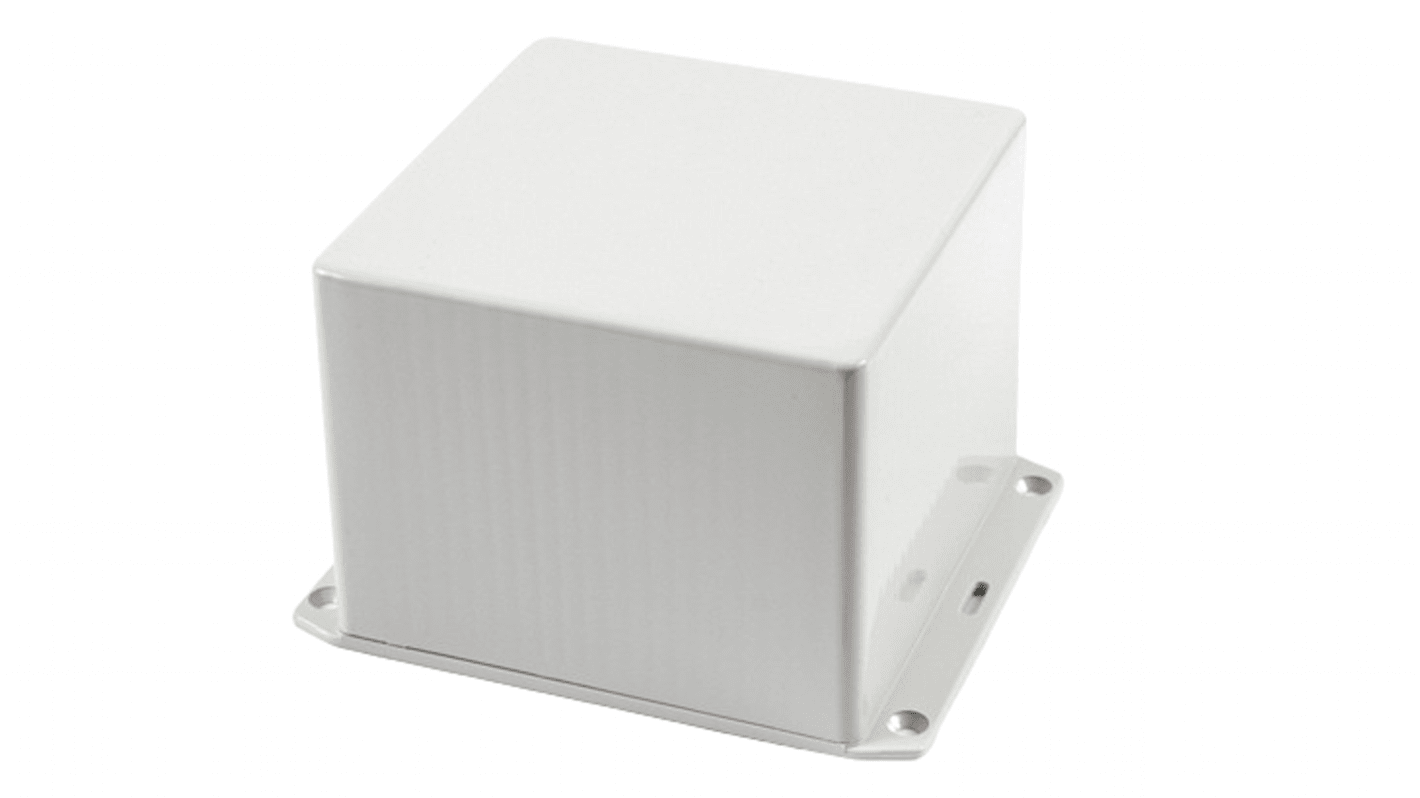

Hammond 1591 Series Light Grey Flame Retardant ABS Enclosure, IP54, Flanged, Light Grey Lid, 120 x 120 x 94mm
- RS Stock No.:
- 493-5887
- Mfr. Part No.:
- 1591VFLGY
- Brand:
- Hammond
Subtotal (1 unit)*
£11.45
(exc. VAT)
£13.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.45 |
*price indicative
- RS Stock No.:
- 493-5887
- Mfr. Part No.:
- 1591VFLGY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Flame Retardant ABS | |
| External Length | 120 mm | |
| External Height | 94 mm | |
| External Width | 120 mm | |
| External Dimensions | 120 x 120 x 94mm | |
| Range | 1591 | |
| IP Rating | IP54 | |
| Colour | Light Grey | |
| Lid Colour | Light Grey | |
| Flanged | Yes | |
| Shielded | No | |
| Series | 1591 | |
| Number Of Knockouts | 0 | |
| Transparent Door | No | |
| Weight | 227g | |
| RAL Code | RAL 7035 | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Flame Retardant ABS | ||
External Length 120 mm | ||
External Height 94 mm | ||
External Width 120 mm | ||
External Dimensions 120 x 120 x 94mm | ||
Range 1591 | ||
IP Rating IP54 | ||
Colour Light Grey | ||
Lid Colour Light Grey | ||
Flanged Yes | ||
Shielded No | ||
Series 1591 | ||
Number Of Knockouts 0 | ||
Transparent Door No | ||
Weight 227g | ||
RAL Code RAL 7035 | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA
Hammond Enclosure, 120 (L) x 120 (W) x 90mm (H), Flame-Retardant Fire Behaviour, Flanged Construction - 1591 Series - 1591VFLGY
Store and mount your sensitive electronic components in this enclosure from Hammond. Designed for housing a PCB, it features two standoffs moulded into the interior that hold onto a board securely. The internal sides are smooth so you can easily slip in your connector without risk of snagging. Thanks to the unit's lap-joint construction, you can quickly assemble and disassemble the lid and body. As the ABS housing is flame-retardant, it keeps your kit safe and won't contribute to a workplace fire.
Features & Benefits
• Self-tapping mounting screws for convenient fixing of the lid
• IP54 rating indicates it's protected against dust and water splashes
• External dimensions of 90 (H) x 120 (W) x 120mm (L) to accommodate larger boards
• IP54 rating indicates it's protected against dust and water splashes
• External dimensions of 90 (H) x 120 (W) x 120mm (L) to accommodate larger boards
Applications
• Repair stations
• Electrical engineering
• Airports and seaports
• Electrical engineering
• Airports and seaports
How do I mount this enclosure?
Thanks to its flanged design, you can mount this enclosure by hanging it on a shelf with ties or screwing it to a wall.
What PCB sizes can I fit in this enclosure?
For ease of installation, you can fit a standard 1.5mm PC card in this enclosure.
Approvals
Material Flamability Rating: UL94-V0
