Hammond 1591 Series Black ABS Enclosure, IP54 Flanged 21 mm, 100 mm, 50 mm
- RS Stock No.:
- 382-2106
- Distrelec Article No.:
- 300-85-358
- Mfr. Part No.:
- 1591ASFLBK
- Brand:
- Hammond

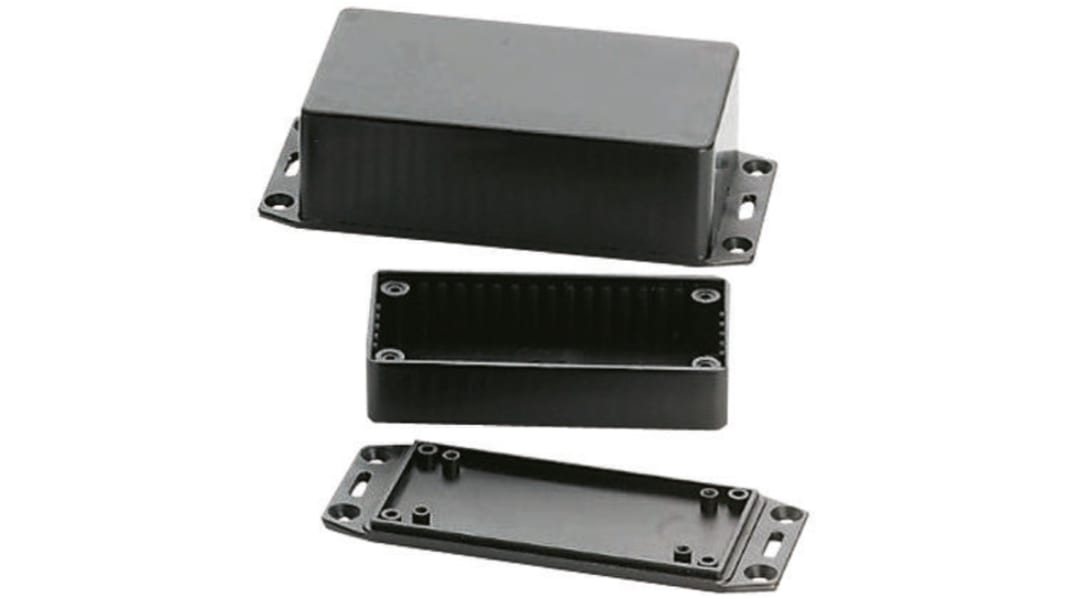

Image representative of range
Subtotal (1 unit)*
£3.63
(exc. VAT)
£4.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 42 unit(s) ready to ship
- Plus 157 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.63 |
*price indicative
- RS Stock No.:
- 382-2106
- Distrelec Article No.:
- 300-85-358
- Mfr. Part No.:
- 1591ASFLBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | ABS | |
| External Height | 21mm | |
| External Length | 100mm | |
| External Width | 50mm | |
| IP Rating | IP54 | |
| Colour | Black | |
| Lid Colour | Black | |
| Flanged | Yes | |
| Shielding | Unshielded | |
| Hazardous Area Certification | No | |
| Series | 1591 | |
| Internal Mount Type | Vertical | |
| Weight | 50g | |
| Standards/Approvals | RoHS | |
| Transparent Door | No | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material ABS | ||
External Height 21mm | ||
External Length 100mm | ||
External Width 50mm | ||
IP Rating IP54 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged Yes | ||
Shielding Unshielded | ||
Hazardous Area Certification No | ||
Series 1591 | ||
Internal Mount Type Vertical | ||
Weight 50g | ||
Standards/Approvals RoHS | ||
Transparent Door No | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA
Hammond Enclosure, 100 (L) x 50 (W) x 21mm (H), ABS Construction, Black Colour - 1591 Series - 1591ASFLBK
To protect your PCBs against damage, grab this enclosure from Hammond. It's a tough ABS shell that safeguards sensitive electronics against impact and abrasion. Thanks to the integrated card guides, you can vertically mount your 1.5mm printed circuit boards and be sure they're efficiently spaced. Lap-joint construction bumps shielding up to an IP54 rating meaning your components are protected against water splashes and dust. This flame retardant box is a safe option for volatile settings as it limits the spread of burning if there's a fire.
Features & Benefits
• Flanged lid and base with predrilled holes for quick and fuss-free installation
• Weighs just 50g, so it hardly puts any strain on your system
• Factory-tapped screw holes and internal posts prevent snagging between screws and wires
Applications
• Handheld testing instruments
• Power supplies
• Industrial control panels
• Food and beverage processing
• Robotics systems
Do I need to get additional fasteners for the lid of this enclosure?
Colour-coded screws are included, saving you the trouble of getting the right fasteners.
