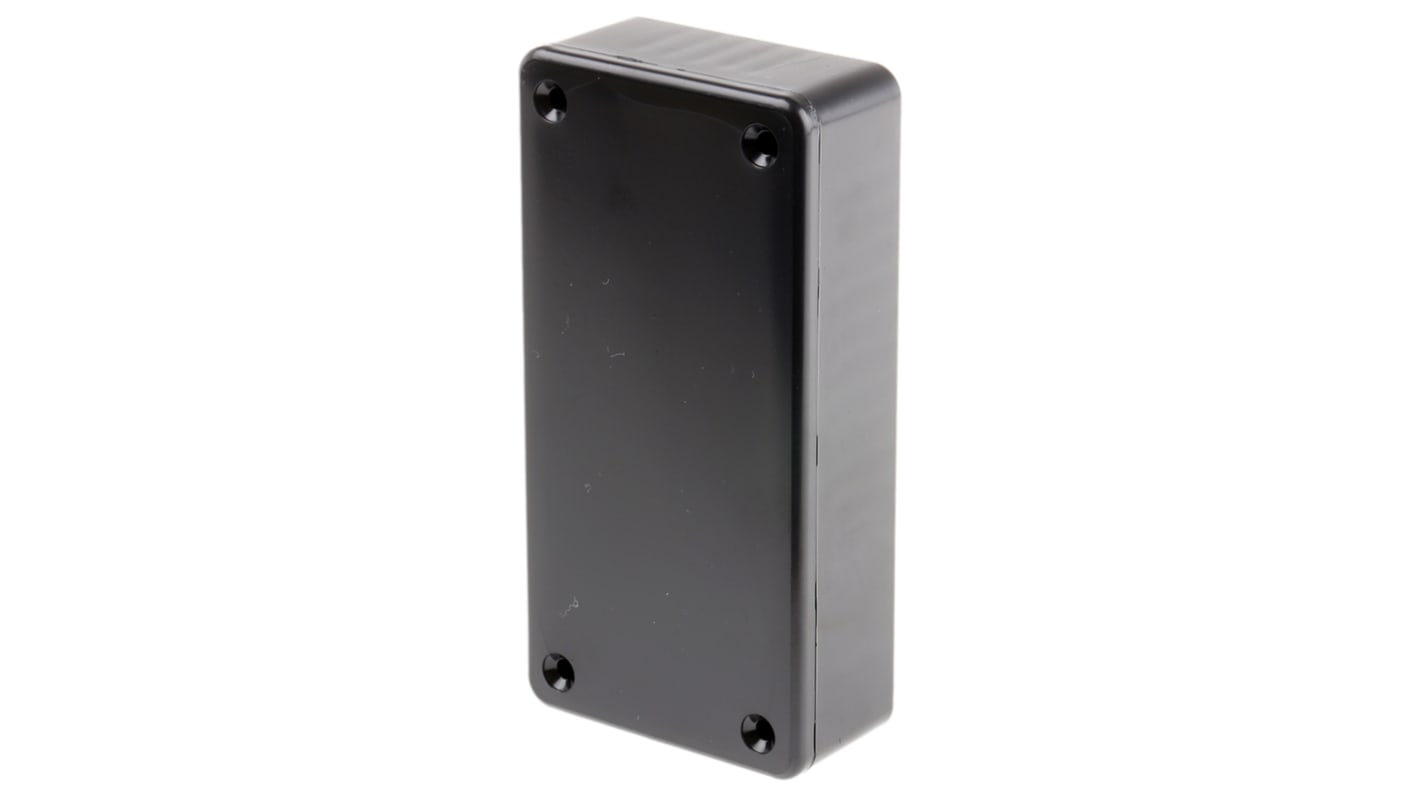

Hammond 1591 Series Black ABS Enclosure, IP54, Black Lid, 100 x 50 x 25mm
- RS Stock No.:
- 381-5192
- Mfr. Part No.:
- 1591ASBK
- Brand:
- Hammond
Subtotal (1 unit)*
£3.63
(exc. VAT)
£4.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 66 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.63 |
*price indicative
- RS Stock No.:
- 381-5192
- Mfr. Part No.:
- 1591ASBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | ABS | |
| External Length | 100 mm | |
| External Height | 25 mm | |
| External Width | 50 mm | |
| External Dimensions | 100 x 50 x 25mm | |
| IP Rating | IP54 | |
| Range | 1591 | |
| Colour | Black | |
| Lid Colour | Black | |
| Flanged | No | |
| Shielded | No | |
| Series | 1591 | |
| Number Of Knockouts | 0 | |
| Weight | 46g | |
| Transparent Door | No | |
| Explosion Proof | No | |
| RAL Code | RAL 9005 | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material ABS | ||
External Length 100 mm | ||
External Height 25 mm | ||
External Width 50 mm | ||
External Dimensions 100 x 50 x 25mm | ||
IP Rating IP54 | ||
Range 1591 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged No | ||
Shielded No | ||
Series 1591 | ||
Number Of Knockouts 0 | ||
Weight 46g | ||
Transparent Door No | ||
Explosion Proof No | ||
RAL Code RAL 9005 | ||
- COO (Country of Origin):
- CA
Hammond Enclosure, 100 (L) x 50 (W) x 25mm (H), ABS Construction, Black - 1591 Series - 1591ASBK
When you need to mount a printed circuit board vertically, this Hammond enclosure works like a charm. Thanks to its internal card guides, securely installing 1.5mm PCBs and keeping them properly spaced is a cinch. As it's made from strong ABS, this unit withstands bumps and scratches to safeguard your delicate electronics. The lap-joint design offers protection to an IP54 level, meaning it shrugs off dust and water splashes, so you can wipe it down without a problem.
Features & Benefits
• Included black screws match the box for a professional look
• Self-extinguishing material improves safety in the event of a fire
• Easy to machine for customised installations
• Light weight of 46g puts minimal strain on your assembly
• Self-extinguishing material improves safety in the event of a fire
• Easy to machine for customised installations
• Light weight of 46g puts minimal strain on your assembly
Applications
• Industrial control panels
• Telecommunications networks
• IT infrastructure
• Medical imaging equipment
• Telecommunications networks
• IT infrastructure
• Medical imaging equipment
Will my wires get tangled in the fasteners of this enclosure?
Not at all. The lid screws sit in factory-tapped posts to keep wires snag-free and performance on track.
Can I also mount my PCBs horizontally inside this enclosure?
Yes, just insert a compatible PCB card adapter (570-708) to mount your boards in a horizontal position.
