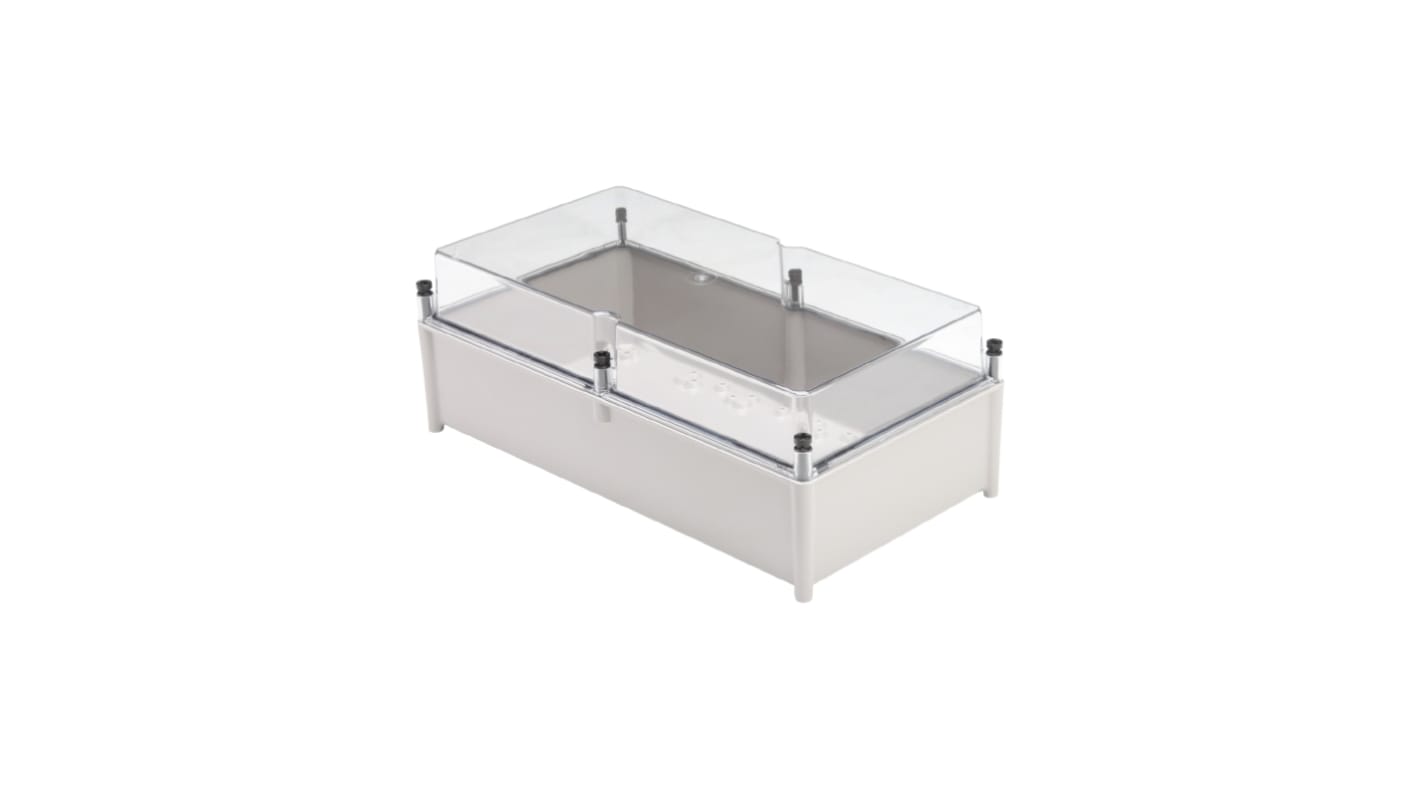

Weidmüller TBF Series Grey Fibreglass Reinforced Polyester Enclosure, IP66, IK08 603 mm, 372 mm, 210 mm
- RS Stock No.:
- 287-5381
- Distrelec Article No.:
- 303-23-819
- Mfr. Part No.:
- 9502860000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£212.10
(exc. VAT)
£254.52
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 29 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £212.10 |
*price indicative
- RS Stock No.:
- 287-5381
- Distrelec Article No.:
- 303-23-819
- Mfr. Part No.:
- 9502860000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | Enclosure | |
| Body Material | Fibreglass Reinforced Polyester | |
| External Height | 603mm | |
| External Length | 372mm | |
| External Width | 210mm | |
| IP Rating | IP66 | |
| Colour | Grey | |
| Lid Colour | Transparent | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Internal Mount Type | Screw | |
| Series | TBF | |
| Standards/Approvals | EN 60529, EN 62208, EN/IEC 61439-2, IEC 60529, RoHS | |
| Weight | 4638g | |
| Transparent Door | Yes | |
| IK Rating | IK08 | |
| Gasket Material | Polyurethane | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type Enclosure | ||
Body Material Fibreglass Reinforced Polyester | ||
External Height 603mm | ||
External Length 372mm | ||
External Width 210mm | ||
IP Rating IP66 | ||
Colour Grey | ||
Lid Colour Transparent | ||
Flanged No | ||
Hazardous Area Certification No | ||
Internal Mount Type Screw | ||
Series TBF | ||
Standards/Approvals EN 60529, EN 62208, EN/IEC 61439-2, IEC 60529, RoHS | ||
Weight 4638g | ||
Transparent Door Yes | ||
IK Rating IK08 | ||
Gasket Material Polyurethane | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BE
The Weidmuller enclosures of the TBF series are made of extremely tough glass fibre-reinforced polyester. These enclosures are ideal for applications that call for low weight coupled with high shock resistance. The weather-resistant TBF enclosures are des
Cover with nylon screws
Fixing holes outside the sealed area
Thread for fitting to terminal rails and mounting plates
Comprehensive accessories
