Schneider Electric Harmony Series Grey Metal General Purpose Enclosure, IP65, IK07 220 mm, 80 mm, 80 mm
- RS Stock No.:
- 254-6416
- Mfr. Part No.:
- XAPD4506
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£117.22
(exc. VAT)
£140.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.22 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 254-6416
- Mfr. Part No.:
- XAPD4506
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Body Material | Metal | |
| Product Type | General Purpose Enclosure | |
| External Height | 220mm | |
| External Length | 80mm | |
| External Width | 80mm | |
| IP Rating | IP65 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Flanged | No | |
| Hazardous Area Certification | EAC | |
| Series | Harmony | |
| Weight | 1.4kg | |
| Standards/Approvals | EN/IEC 60529 and EN/IEC 60947-5-1, EN/IEC 61140, EN/IEC 62262 | |
| IK Rating | IK07 | |
| Better World Product | Yes | |
| Transparent Door | No | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Body Material Metal | ||
Product Type General Purpose Enclosure | ||
External Height 220mm | ||
External Length 80mm | ||
External Width 80mm | ||
IP Rating IP65 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged No | ||
Hazardous Area Certification EAC | ||
Series Harmony | ||
Weight 1.4kg | ||
Standards/Approvals EN/IEC 60529 and EN/IEC 60947-5-1, EN/IEC 61140, EN/IEC 62262 | ||
IK Rating IK07 | ||
Better World Product Yes | ||
Transparent Door No | ||

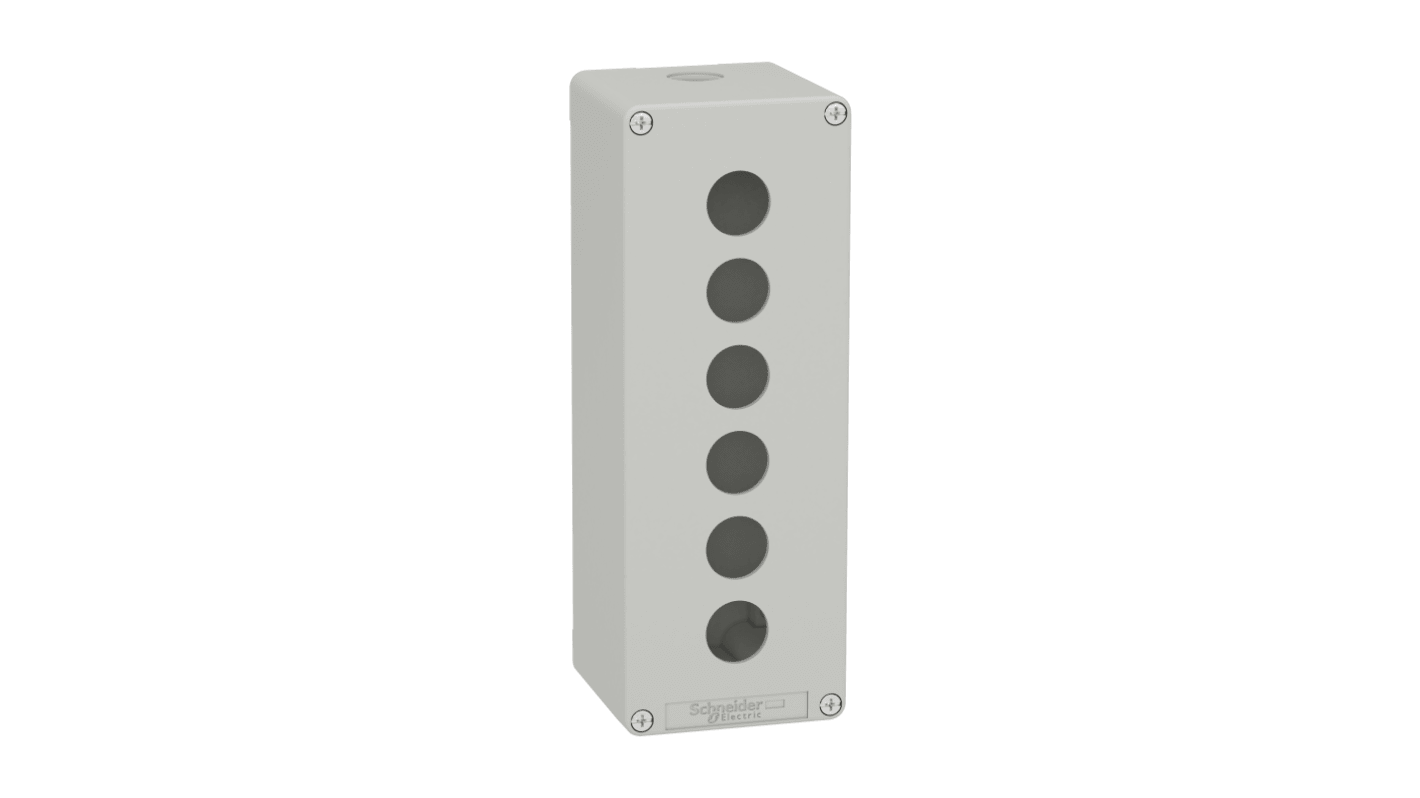

Schneider Electric General-Purpose Enclosure, 22mm Cutout Diameter, M25 Thread - Harmony XAP Series - XAPD4506
Are you looking for a customisable control station? Pick up this general-purpose enclosure from Schneider Electric. It holds six XB4 or XB5 22mm push buttons of your choice in a single line, making it ideal to use as the base of operations for directional, stop/start and emergency controls. The die-cast zinc body is rust-resistant to protect your electricals and ensure their long-lasting performance in contaminated settings.
Features & Benefits
• Mountable both vertically and horizontally for versatility
• Dimensions of 80 (W) x 220 (H) x 77mm (D) leave plenty of room for wires
• Standard M25-threaded holes for easy compatibility with commonly used fixings
Applications
• Mining industry
• Manufacturing facilities
• Food and drink sector
• Energy production
What IP rating does this enclosure have?
This control box can be sealed to an IP65 dustproof and water-resistant standard, making it ideal for use in damp or dusty areas. To achieve this rating, you'll need to use an M25 cable gland at the wire opening, fit any unused cutouts with a blanking plug (609-2831) and use fixing collars (331-0142) with your electrical blocks.
