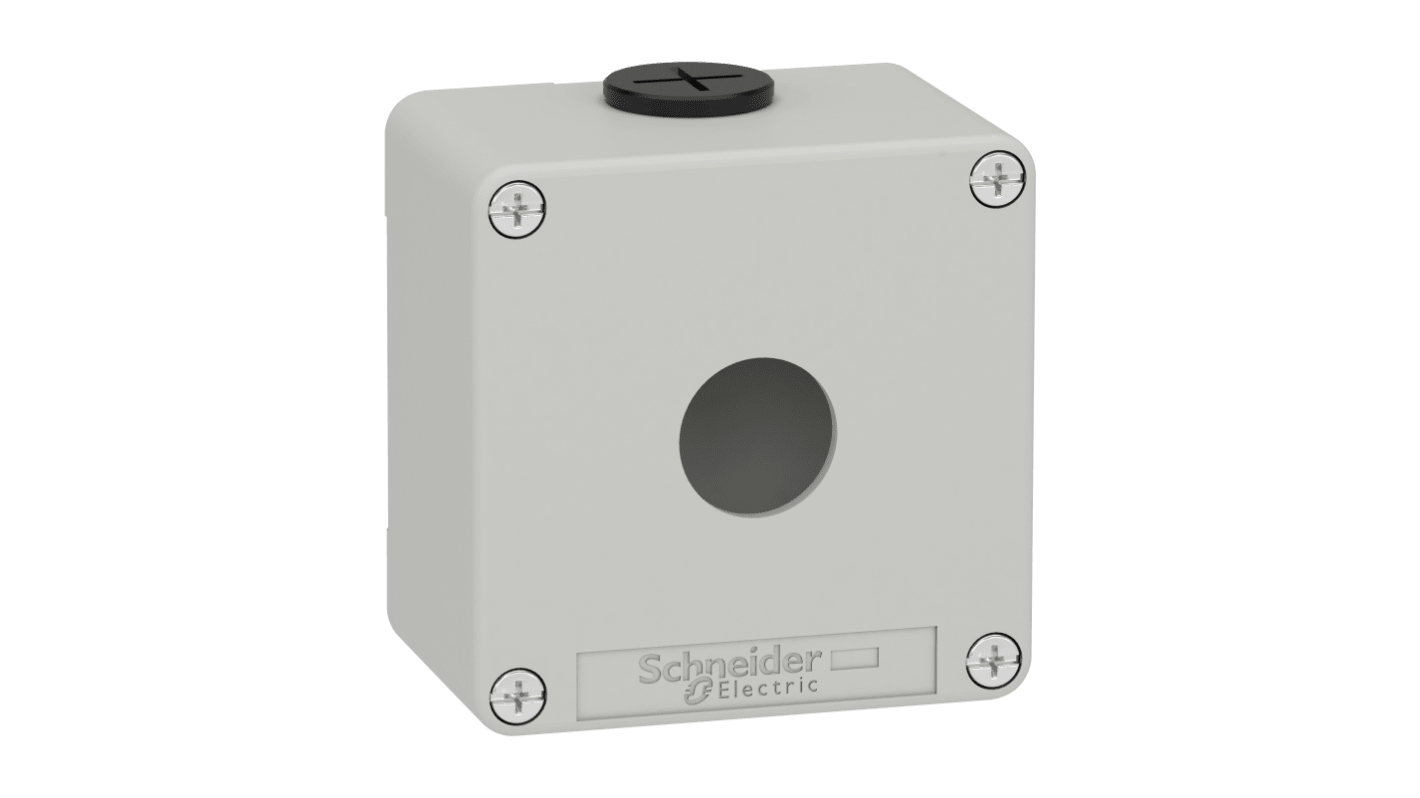

Schneider Electric Harmony XAP Series Grey Die Cast Zinc General Purpose Enclosure, IP65, IP66, IP69, IK07 80 mm, 80 mm,

View all General Purpose Enclosures

Subtotal (1 unit)*

£38.39

(exc. VAT)

£46.07

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 42 unit(s) shipping from 04 May 2026
  • Plus 105 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£38.39

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
254-6392
Mfr. Part No.:
XAPD1201
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Body Material

Die Cast Zinc

Product Type

General Purpose Enclosure

External Height

80mm

External Length

80mm

External Width

80mm

IP Rating

IP65, IP66, IP69

Lid Colour

Grey

Colour

Grey

Flanged

No

Hazardous Area Certification

NO

Series

Harmony XAP

Weight

455g

Standards/Approvals

EN/IEC 60529, EN/IEC 60947-5-1, EN/IEC 61140, UL 50 E

Transparent Door

No

IK Rating

IK07

Better World Product

Yes

Schneider Electric XAPD Series General Purpose Enclosure, 80mm External Length, IP65 - XAPD1201


This general purpose enclosure is designed for versatility in various control applications. Featuring a compact design with external dimensions of 80 x 80 x 51.5mm, this die-cast zinc enclosure can accommodate Ø 22mm control and signalling units. With robust construction, it is suitable for both indoor and outdoor use.

Features & Benefits


• Built from die-cast zinc, ensuring durability and strength

• IP65, IP66, and IP69 ratings provide excellent protection against water and dust

• IK07 rated enclosure safeguards against impact damage

• Suitable for installation in extreme temperatures from -25 to 70 °C

• Designed for M20 cable entry, facilitating easy connections

• Complies with UL type 4 and type 4X standards for safety

Applications


• Used for housing control and signalling equipment

• Ideal for outdoor installations where environmental protection is crucial

• Suitable for in industrial and commercial settings

• Employed in automation systems requiring weatherproof housing

• Utilised in electrical installations needing secure enclosures

What type of material is used in the enclosure's construction?


The enclosure is made from die-cast zinc, providing a robust and long-lasting structure well-suited for various applications.

How does this enclosure ensure protection from harsh weather?


With IP65, IP66, and IP69 ratings, it effectively prevents ingress of water and dust, making it ideal for outdoor use.

What is the maximum temperature range of operation for this enclosure?


It operates efficiently within an ambient temperature range of -25 to 70 °C, allowing it to be used in diverse environments.

What cable entry options are available for this enclosure?


It features M20 cable entry, accommodating standard cable glands for seamless integration with control systems.

Is this enclosure suitable for use in high-impact environments?


Yes, it has an IK07 rating, which signifies resilience against potential impact damage, ensuring protection in industrial settings.
