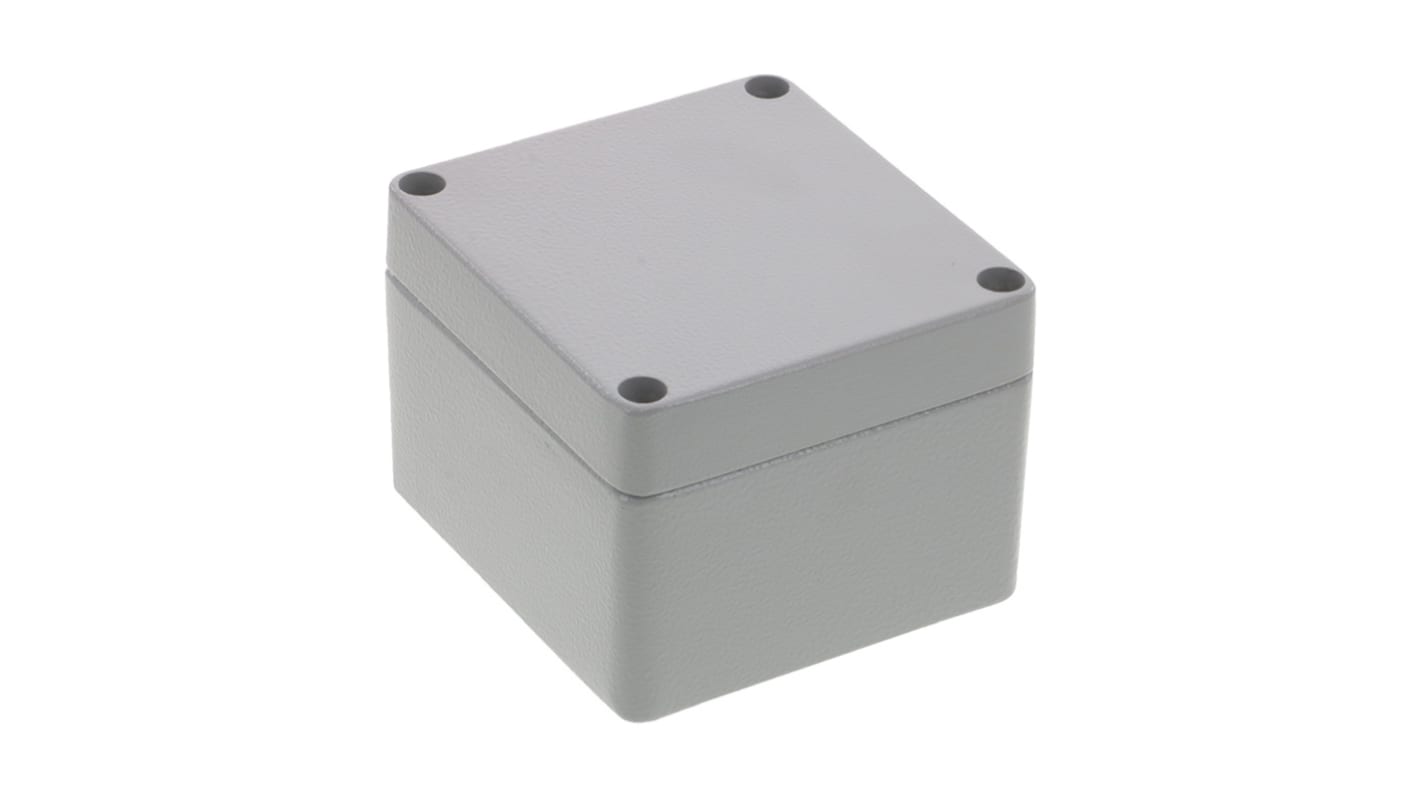

Molex 93604 Series Grey RAL 7001 Die Cast Aluminium Enclosure, IP69, IP66 57 mm, 80 mm, 75 mm
- RS Stock No.:
- 250-2153
- Mfr. Part No.:
- 936040091
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£22.71
(exc. VAT)
£27.25
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £22.71 |
| 10 - 99 | £21.96 |
| 100 - 249 | £21.07 |
| 250 - 499 | £20.17 |
| 500 + | £19.24 |
*price indicative
- RS Stock No.:
- 250-2153
- Mfr. Part No.:
- 936040091
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 57mm | |
| External Length | 80mm | |
| External Width | 75mm | |
| IP Rating | IP69, IP66 | |
| Colour | Grey RAL 7001 | |
| Lid Colour | Grey RAL 7001 | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Internal Mount Type | Through Hole | |
| Series | 93604 | |
| Weight | 300g | |
| Standards/Approvals | NMX-J235/1-2, NEMA ICS5, NEMA250, EN 62208, CSA C22.2 No.94-1-2, ANSI/UL 50 E, ANSI/UL 50 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 57mm | ||
External Length 80mm | ||
External Width 75mm | ||
IP Rating IP69, IP66 | ||
Colour Grey RAL 7001 | ||
Lid Colour Grey RAL 7001 | ||
Flanged No | ||
Hazardous Area Certification No | ||
Internal Mount Type Through Hole | ||
Series 93604 | ||
Weight 300g | ||
Standards/Approvals NMX-J235/1-2, NEMA ICS5, NEMA250, EN 62208, CSA C22.2 No.94-1-2, ANSI/UL 50 E, ANSI/UL 50 | ||
The Molex enclosure is comprised of die-cast aluminium alloy with polyester powder finish. Product has internal through hole mounting and is available in grey color.
Operating temperature range -40°C to +125°C
Without external mounting flange
