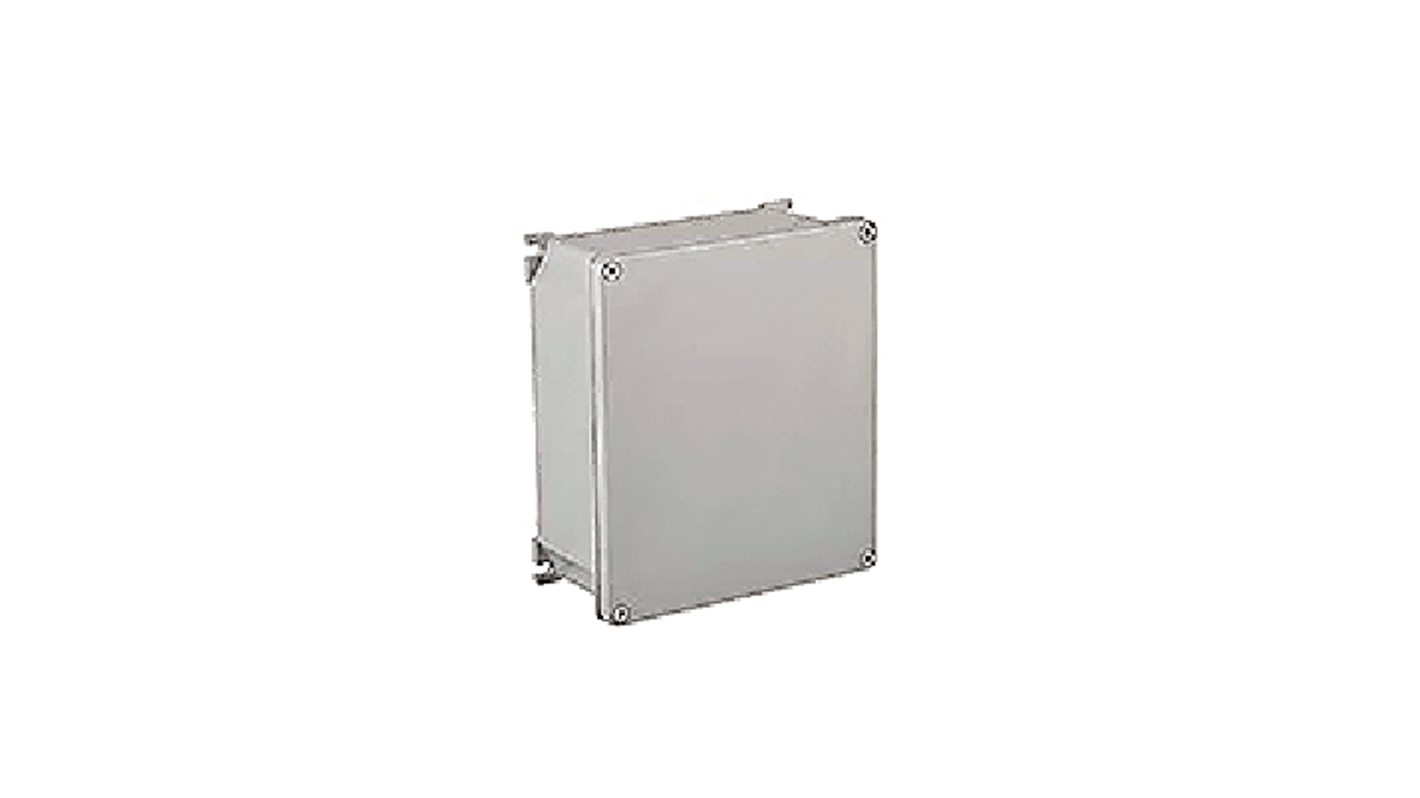

Molex 93604 Series Grey RAL 9006 Die Cast Aluminium Enclosure, IP69, IP66 Flanged 178 mm, 80 mm, 155 mm
- RS Stock No.:
- 244-3145
- Distrelec Article No.:
- 303-81-050
- Mfr. Part No.:
- 936040027
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£50.05
(exc. VAT)
£60.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £50.05 |
| 5 - 9 | £47.99 |
| 10 + | £44.70 |
*price indicative
- RS Stock No.:
- 244-3145
- Distrelec Article No.:
- 303-81-050
- Mfr. Part No.:
- 936040027
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Body Material | Die Cast Aluminium | |
| Product Type | Enclosure | |
| External Height | 178mm | |
| External Width | 155mm | |
| External Length | 80mm | |
| IP Rating | IP69, IP66 | |
| Colour | Grey RAL 9006 | |
| Flanged | Yes | |
| Mounting plate | Yes | |
| Series | 93604 | |
| Standards/Approvals | ANSI/UL 50, CSA C22.2 No.94-1-2, ANSI/UL 50 E, EN 60670-1, EN 62208, NMX-J235/1-2, EN-60670-22 | |
| Weight | 819.550g | |
| Transparent Door | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Body Material Die Cast Aluminium | ||
Product Type Enclosure | ||
External Height 178mm | ||
External Width 155mm | ||
External Length 80mm | ||
IP Rating IP69, IP66 | ||
Colour Grey RAL 9006 | ||
Flanged Yes | ||
Mounting plate Yes | ||
Series 93604 | ||
Standards/Approvals ANSI/UL 50, CSA C22.2 No.94-1-2, ANSI/UL 50 E, EN 60670-1, EN 62208, NMX-J235/1-2, EN-60670-22 | ||
Weight 819.550g | ||
Transparent Door No | ||
The Molex Connect enclosure from 93604 series is an industrial enclosure constructed from die-cast Aluminium. This enclosure has external mounting flanges to aid mounting. The enclosure has Polyester powder coating and is grey white in colour. The height x width x depth dimensions are 189 x 167 x 80mm.
Protection rating of IP66, IP69
Net weight is 819.5 g
