Hammond 1555 Series Grey Polycarbonate & General Purpose ABS Enclosure, IP68 Flanged 62 mm, 160 mm, 91.4 mm
- RS Stock No.:
- 230-6503
- Mfr. Part No.:
- 1555J2F42GY
- Brand:
- Hammond
Subtotal (1 unit)*
£20.93
(exc. VAT)
£25.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.93 |
*price indicative
- RS Stock No.:
- 230-6503
- Mfr. Part No.:
- 1555J2F42GY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Polycarbonate & General Purpose ABS | |
| External Height | 62mm | |
| External Width | 91.4mm | |
| External Length | 160mm | |
| IP Rating | IP68 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Flanged | Yes | |
| Hazardous Area Certification | NO | |
| Internal Mount Type | DIN Rail | |
| Series | 1555 | |
| Mounting plate | Yes | |
| Standards/Approvals | RoHS, cULus | |
| Transparent Door | No | |
| Gasket Material | Silicone | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Polycarbonate & General Purpose ABS | ||
External Height 62mm | ||
External Width 91.4mm | ||
External Length 160mm | ||
IP Rating IP68 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged Yes | ||
Hazardous Area Certification NO | ||
Internal Mount Type DIN Rail | ||
Series 1555 | ||
Mounting plate Yes | ||
Standards/Approvals RoHS, cULus | ||
Transparent Door No | ||
Gasket Material Silicone | ||
- COO (Country of Origin):
- CA

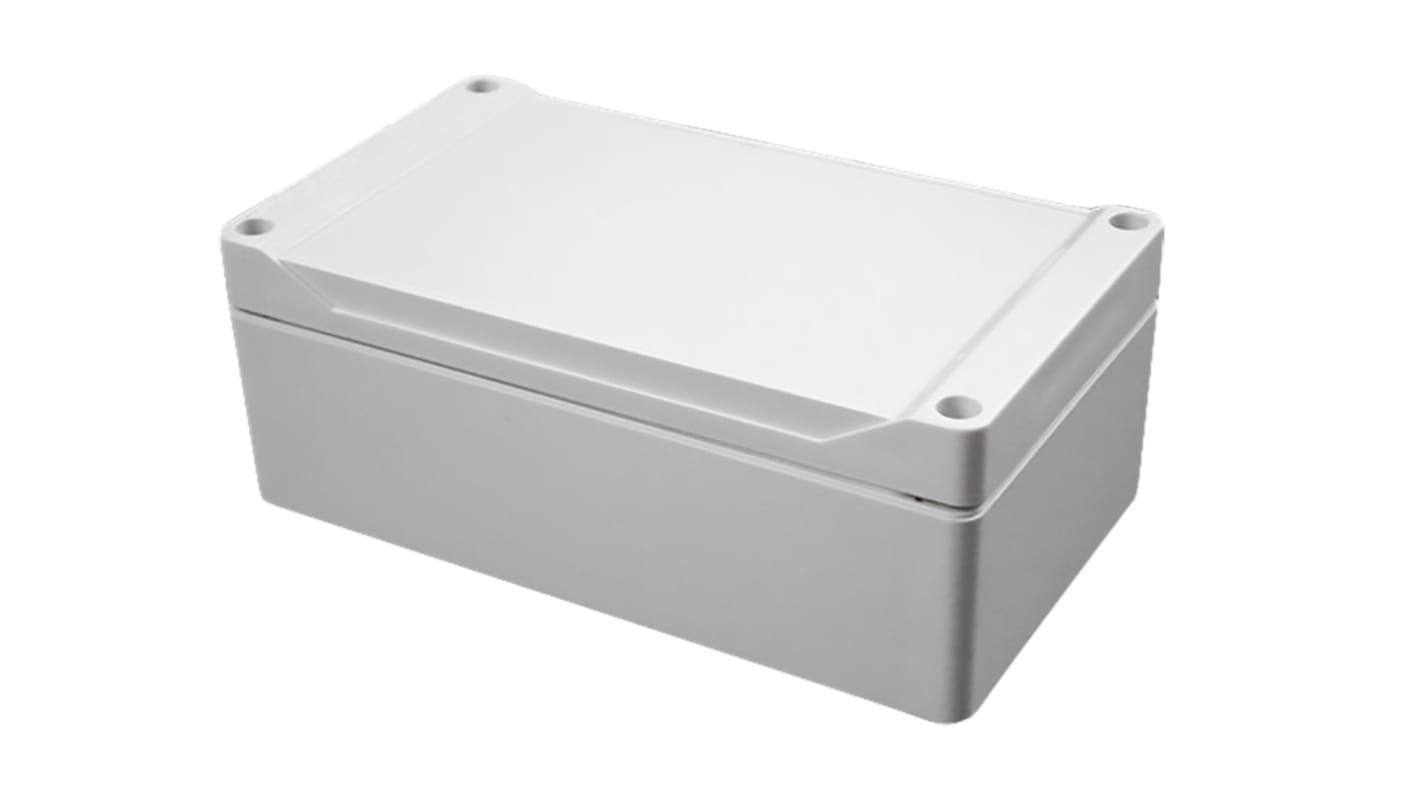

The Hammond 1555 series watertight PC enclosure, flanged lid. Ideally suited for mounting printed circuit boards or DIN rail mounted components. Polycarbonate versions are UV stabilized for outdoor use. Grey polycarb carries a UL94- 5VA rating. Polycarbonate versions are UL 508A listed.
Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls etc. etc.)
Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components (see photo features for details).
Designed for wall mounting. Interior is secure as lid screws are behind the lid. Can be made more secure if wall mounted with security screws (tamper resistant screws).
Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
