Hammond 1553W Series Black, Light Grey Plastic (Frabs), ABS Enclosure, IP65 24.9 mm, 147.3 mm, 89.9 mm
- RS Stock No.:
- 230-6456
- Mfr. Part No.:
- 1553WDGY
- Brand:
- Hammond
Subtotal (1 unit)*
£17.79
(exc. VAT)
£21.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.79 |
*price indicative
- RS Stock No.:
- 230-6456
- Mfr. Part No.:
- 1553WDGY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Plastic (Frabs), ABS | |
| Product Type | Enclosure | |
| External Height | 24.9mm | |
| External Length | 147.3mm | |
| External Width | 89.9mm | |
| Ventilated | No | |
| IP Rating | IP65 | |
| Colour | Black, Light Grey | |
| Hazardous Area Certification | No | |
| Series | 1553W | |
| Standards/Approvals | No | |
| Transparent Door | No | |
| Gasket Material | Silicone | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Plastic (Frabs), ABS | ||
Product Type Enclosure | ||
External Height 24.9mm | ||
External Length 147.3mm | ||
External Width 89.9mm | ||
Ventilated No | ||
IP Rating IP65 | ||
Colour Black, Light Grey | ||
Hazardous Area Certification No | ||
Series 1553W | ||
Standards/Approvals No | ||
Transparent Door No | ||
Gasket Material Silicone | ||
- COO (Country of Origin):
- CN

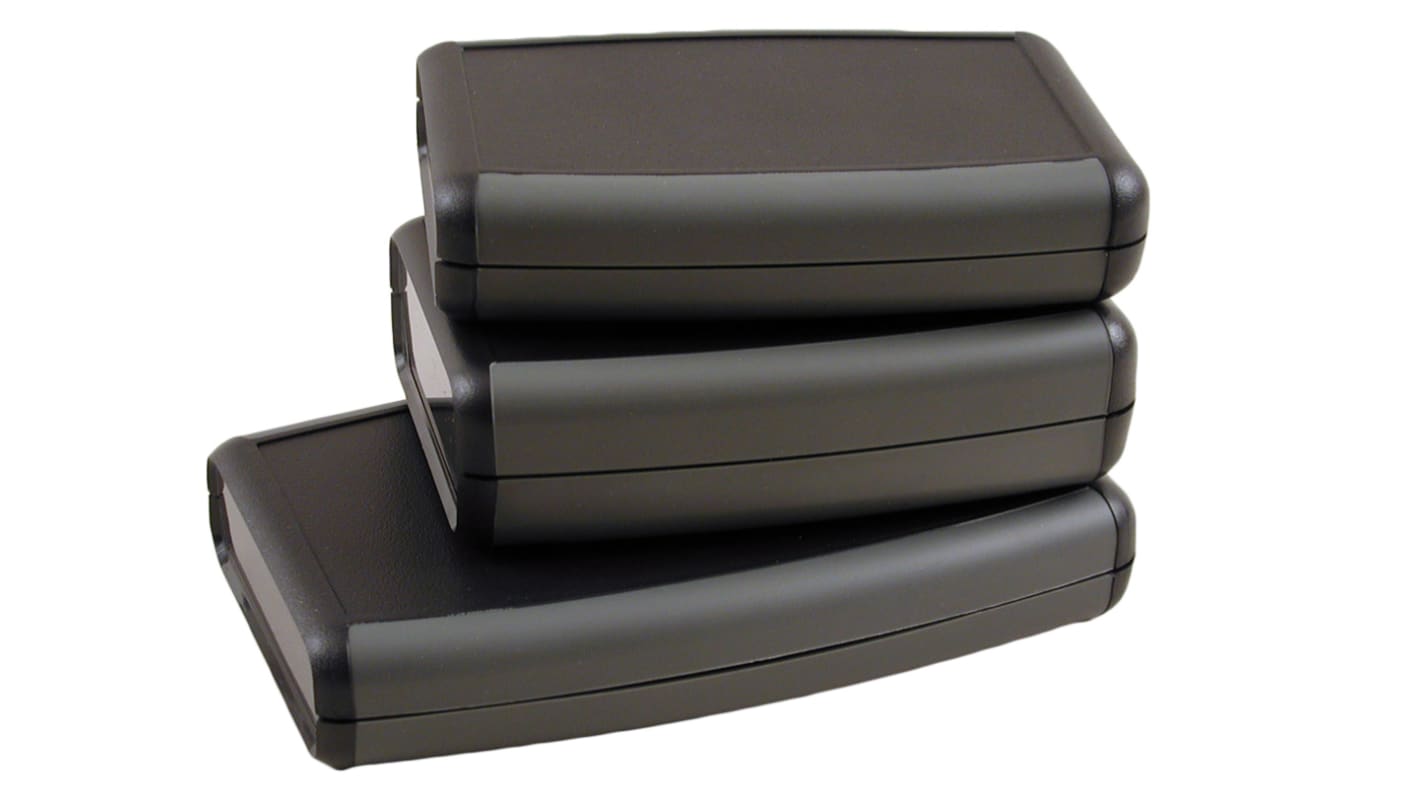

The Hammond 1553W series soft sided watertight handheld enclosure ergonomically designed for hand-held comfort. Designed to meet IP65 and uses a one piece silicone gasket (installed). Enclosure utilizes tongue & groove construction - molded into the top & bottom halves.
Ergonomically designed for hand-held comfort
Choice of five sizes and six colour combinations
All sizes except 1553A available with or without battery compartment
Molded in general purpose ABS plastic with a soft, plastic overmolded for comfortable grip
Top cover is recessed for membrane display or keypad
P.C. board standoffs are molded into case (see drawings or photos for more details)
Includes removable front panel (for easy modifications) and assembly hardware (except for smallest 1553A units)
Battery door & compartment version includes 4 battery clips (for 2 - AA batteries) and a 9 volt (PP3) battery clip
Grey 1553 series enclosures include nickel plated screws.
