Hammond 1591 Series Black, Beige, Grey, Blue ABS Plastic Enclosure, IP54 Flanged 26 mm, 85 mm, 56 mm
- RS Stock No.:
- 229-1651
- Mfr. Part No.:
- 1591MSGY
- Brand:
- Hammond
Subtotal (1 unit)*
£3.88
(exc. VAT)
£4.66
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £3.88 |
*price indicative
- RS Stock No.:
- 229-1651
- Mfr. Part No.:
- 1591MSGY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | ABS Plastic | |
| Product Type | Enclosure | |
| External Height | 26mm | |
| External Length | 85mm | |
| External Width | 56mm | |
| IP Rating | IP54 | |
| Colour | Black, Beige, Grey, Blue | |
| Flanged | Yes | |
| Hazardous Area Certification | NO | |
| Shielding | Shielded | |
| Series | 1591 | |
| Internal Mount Type | Vertical | |
| Standards/Approvals | RoHS | |
| Transparent Door | Yes | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material ABS Plastic | ||
Product Type Enclosure | ||
External Height 26mm | ||
External Length 85mm | ||
External Width 56mm | ||
IP Rating IP54 | ||
Colour Black, Beige, Grey, Blue | ||
Flanged Yes | ||
Hazardous Area Certification NO | ||
Shielding Shielded | ||
Series 1591 | ||
Internal Mount Type Vertical | ||
Standards/Approvals RoHS | ||
Transparent Door Yes | ||
Explosion Proof No | ||

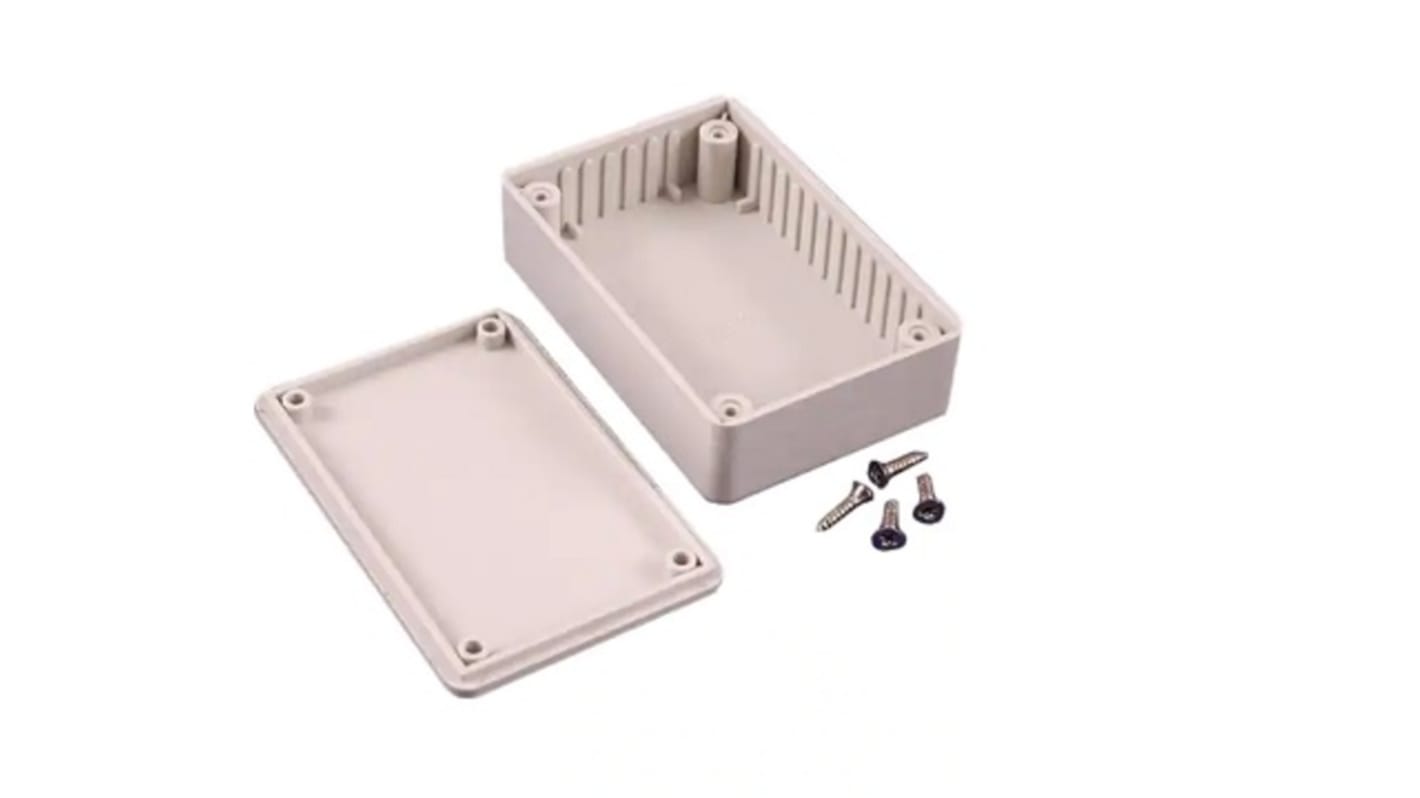

The Hammond multipurpose enclosure is Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded in card guides). Integral card guides accept 1.5 mm (0.062 in) P.C. cards. Lap joint construction provides protection against access of dust and splashing water. Its lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required. It is light grey in colour and has 85 x 56 x 26 dimensions.
It has IP54 protection
It has UL94 HB flammability rating
